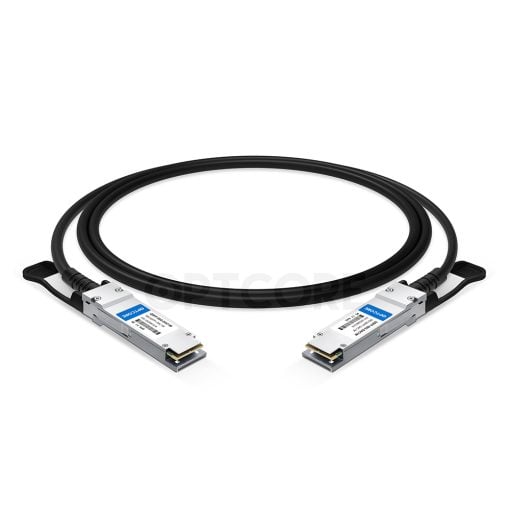

0.5m (2ft) Mellanox MC2207130-00A Compatible 56G QSFP+ Passive Direct Attach Cable
US$ 39.00 (Excl. VAT)
Good quality 56G QSFP+ DAC Cable (0.5m, 30AWG, Passive) for Mellanox switches and server platforms.
Length
Mellanox MC2207130-00A 56G QSFP+ Direct Attach Copper Cable (0.5m, 30AWG, Passive)
This 56G QSFP+ DAC cable is a passive direct attach copper cable assembly for 56G InfiniBand or 40GbE Ethernet systems. It is compatible with Mellanox MC2207130-00A and provides a cost-effective alternative to the original 56G DAC cables. This 56G cable is suitable for very short distances and offers a highly cost-effective way to establish a 56 Gigabit link connectivity between devices using QSFP+ ports. It is suitable for 56Gb/s InfiniBand FDR interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets.
Features
• Functionally identical to Mellanox MC2207130-00A 56G passive copper cable
• Maximum aggregate data rate: 56 Gb/s (4 x 14Gb/s)
• Hot-pluggable QSFP+ 38-PIN footprint
• Single 3.3V power supply
• Compliant with QSFP+ MSA SFF-8436
• Compliant with Infiniband QDR/DDR/FDR data rates
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification
| OEM Part Number | MC2207130-00A | Optcore Part Number | QSFP-56G-DAC05M-MEL |
| Form Factor | QSFP+ DAC Cable | Data Rate | 56 Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3 V |
| Cable Length | 0.5 meter (1.6ft) | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum cable bend radius | 35 mm | Cable Jacket Type | PVC (OFNR) |
| Connector | QSFP+ to QSFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.18 kg |
| Application | 40G InfiniBand 4x FDR, 56 Gigabit Ethernet SAS, Servers, Hubs, Switches, and Routers |
Compliance | InfiniBand SDR/DDR/QDR SFF-8436, RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Mellanox.
