Cisco QSFP-4X10G-AOC5M Compatible 5m 40G QSFP+ to 4x10G SFP+ Breakout AOC
US$ 80.00 (Excl. VAT)
5 Meter 40G QSFP+ to 4 SFP+ Active Optical Breakout Cable for use with Cisco Ethernet Switches, Routers and Servers.
Similar Products
QSFP-4X10G-AOC1M QSFP-4X10G-AOC2M QSFP-4X10G-AOC3M QSFP-4X10G-AOC7M QSFP-4X10G-AOC10M QSFP-4X10G-AOC15M

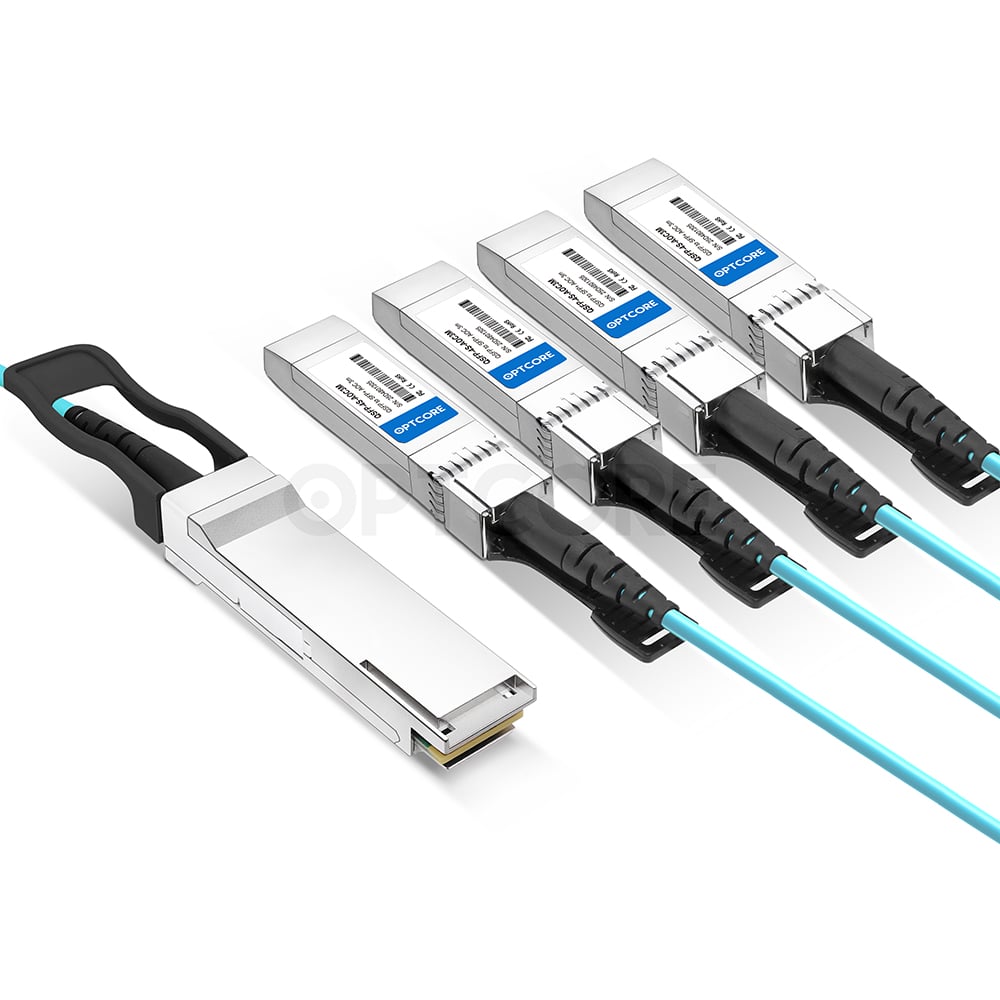

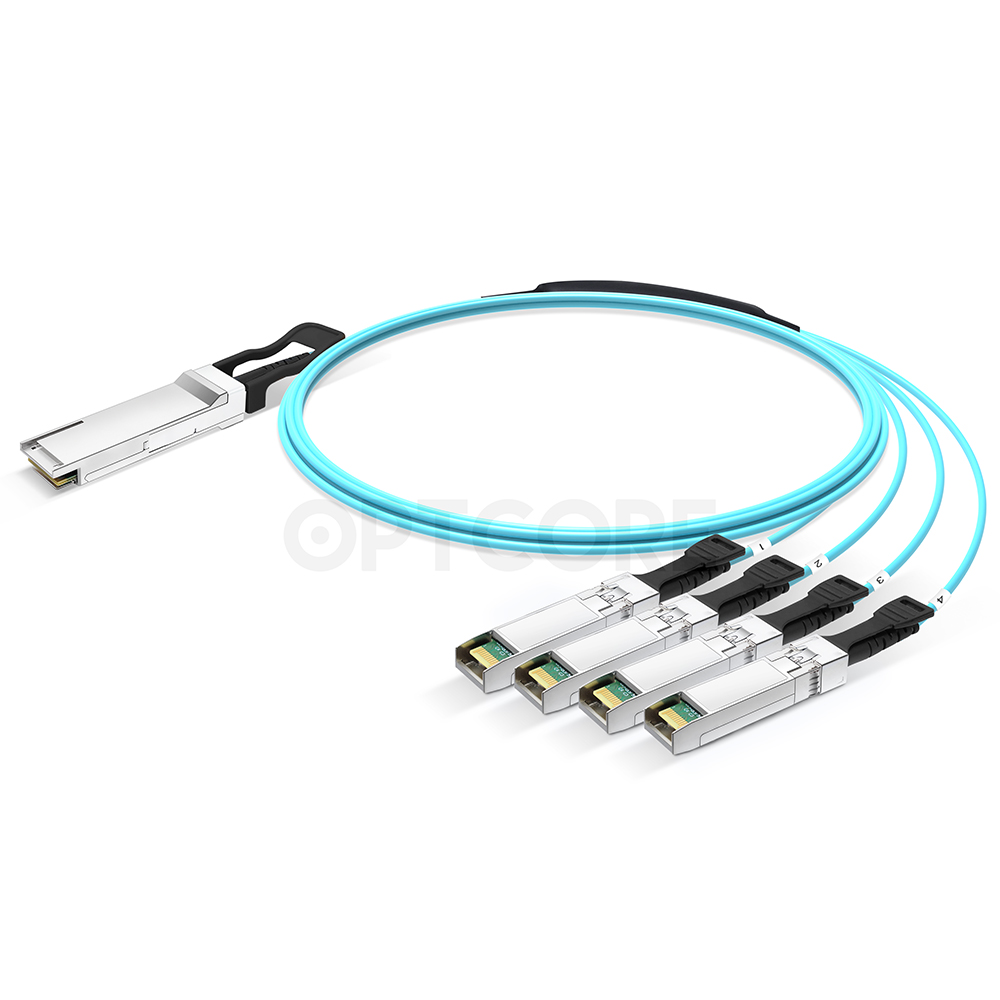

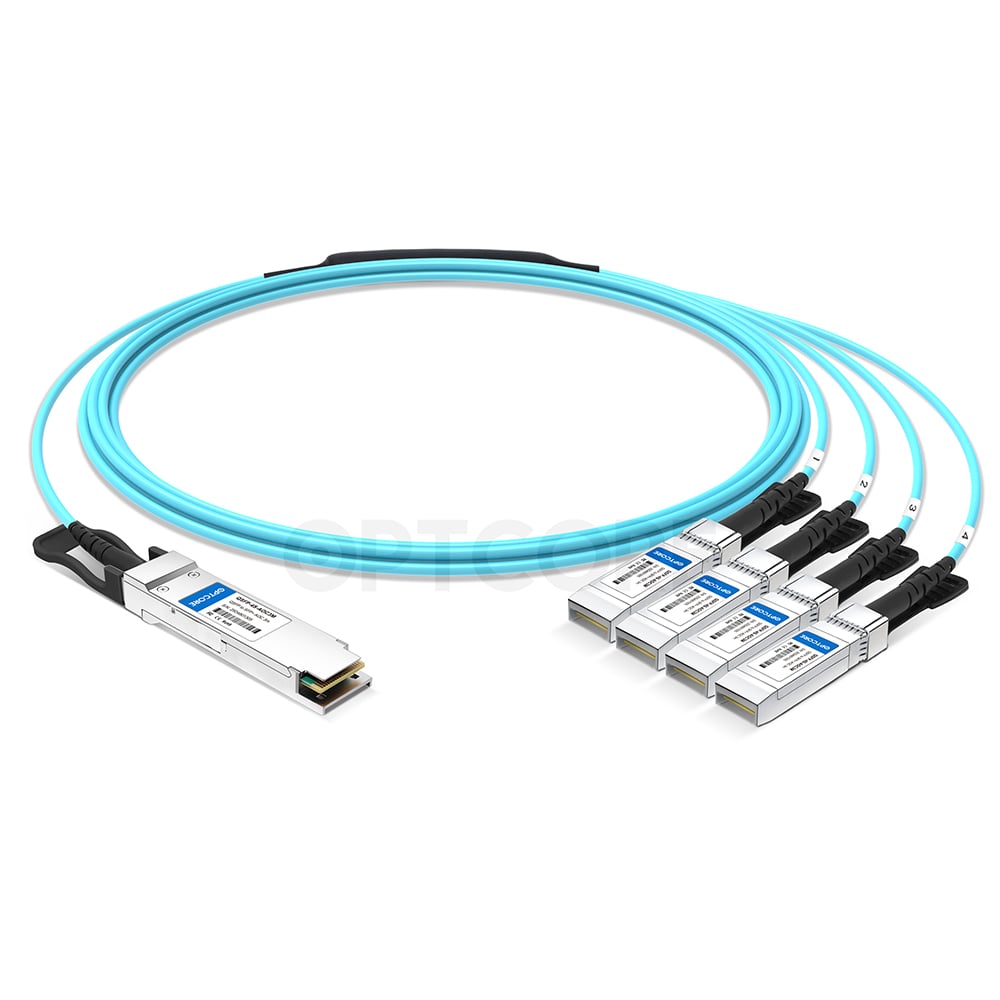

Cisco QSFP-4X10G-AOC5M Compatible 40G QSFP+ to 4x10G SFP+ Breakout Active Optical Cable (5-meter)
This Cisco QSFP-4X10G-AOC5M Compatible QSFP+ active optical breakout cable assembly is suitable for use in storage, data, and high-performance computing interconnectivity between 40G QSFP+ ports and 10G SFP+ ports. It offers a flexible solution to connect within racks and across adjacent racks. The cable contains a QSFP+ module at one end and four SFP+ modules at the other ends. It has been tested and programmed at the factory to ensure the quality, high performance, and compatibility.
Features
• Functionally identical to Cisco QSFP-4X10G-AOC5M
• Bridge the gap between your 10G and 40G capable switches/host adapters
• Low power consumption
• Small bend radius allows easy installation and fiber management
• Allow different equipment to connect by configuring each end of the cable
Specification
| OEM Part Number | QSFP-4X10G-AOC5M | Optcore Part Number | QSFP-4SFP10G-AOC5M-CSC |
| Form Factor | QSFP+ Breakout AOC | Data Rate | 40 Gb/s |
| Wavelength | 850 nm | Supply Voltage | 3.3V |
| Data Rate, each Lane | 10.5 Gb/s | Fiber Type | OM3 MMF |
| Cable Length | 5 meter (16.4 ft) | Cable Diameter | 3 mm |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | LSZH |
| Connector | QSFP+/SFP+ | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.29 kg |
| Application | 40 Gigabit Ethernet, 10 Gigabit Ethernet 40G Infiniband QDR,10G Infiniband SDR High-speed Data Centers |
Compliance | RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Cisco.
| Weight | 0.31 kg |
|---|
