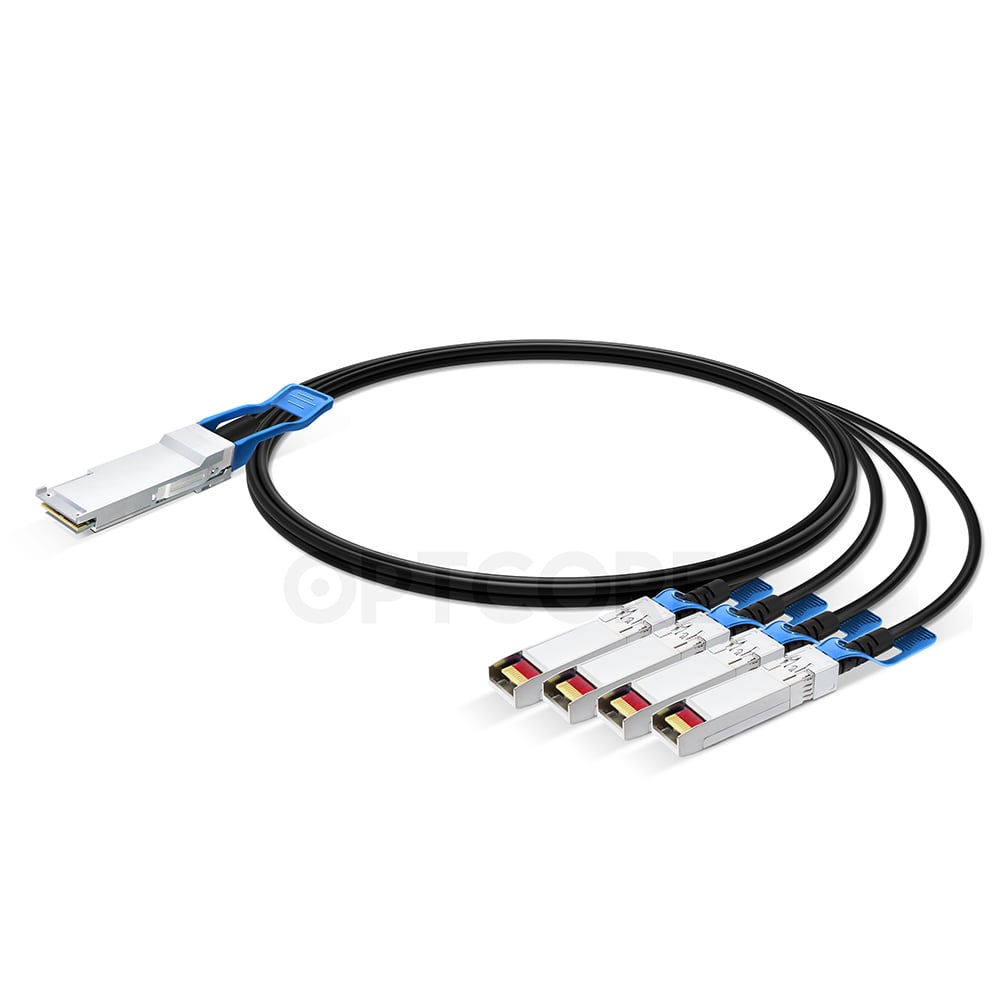

HW QSFP-4SFP25G-CU5M-HW Compatible 100G QSFP28 to 4x25G SFP Copper Splitter Cable
US$ 108.00 (Excl. VAT)
5m (16ft) 100G QSFP28 to SFP28 copper splitter cable for use with HW 25G/100G data center core switches and ToR switches.
Similar Products
QSFP-4SFP25G-CU1M-HW QSFP-4SFP25G-CU3M-HW QSFP-100G-CU1M-HW QSFP-100G-CU3M-HW QSFP-100G-CU5M-HW
Replacement for HW QSFP-4SFP25G-CU5M-HW Compatible 100G QSFP28 to 4x25G SFP28 Copper Splitter Cable (5m, Passive, 24AWG)
This 100G QSFP28 to 4xSFP28 splitter copper cable is compatible with HW networking equipment and equivalent to HW QSFP-4SFP25G-CU5M-HW. It is suitable for very short distances and offers a highly cost-effective interconnect solution for merging QSFP28 and 25GE SFP28 core switches and servers high-speed data center application.
Features
• Functionally identical to HW QSFP-4SFP25G-CU5M-HW
• Connector A: 1x QSFP28 100Gbps Rated Connector
• Connector B: 4x SFP28 25Gbps Rated Connector
• Economically links up a QSFP28 port with an upstream 25G SFP28 Switch
• Compliant with SFF-8665 and SFF-8402
• Optimized EMI/EMC performance
• Bridge the gap between your 25G and 100G core switches
Specification
| Compatible OEM Part Number | QSFP-4SFP25G-CU5M | Optcore Part Number | QSFP-4S28-DAC5M-HW |
| Form Factor | QSFP28 Splitter Cable | Data Rate | 100 Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 5 meter (16.4ft) | Cable impedance | 100 Ω |
| Cable Type | Copper Cable | Wire Gauge | 26AWG |
| Minimum cable bend radius | 35 mm | Cable Jacket Type | PVC |
| Connector | QSFP28/ 4xSFP28 | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.9 kg |
| Application | 25G, 100G Ethernet (25GBASE-CR, 100GBASE-CR4) Intra-Rack System, Top of Rack (ToR), Middle of Rack (MoR) Switch, Storage, Server, NIC Switch-to-Switch, Switch-to-Server |
Compliance | IEEE802.3bj InfiniBand EDR SFF-8665, RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by HW.
| Weight | 1.1 kg |
|---|
