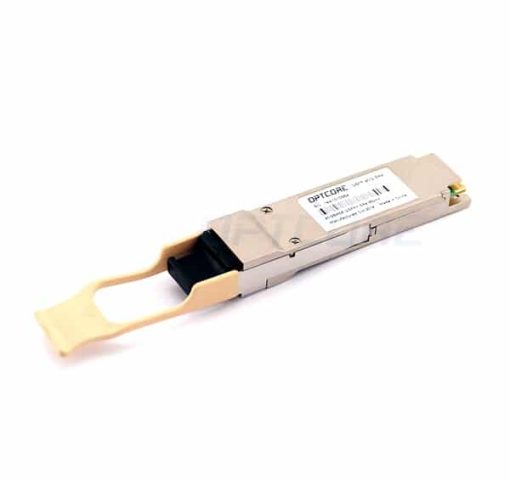

Brocade 40G-QSFP-SR-BIDI Compatible 40GBASE-SR-BiDi QSFP+ Duplex LC 100m Transceiver
US$ 249.00 (Excl. VAT)
40GBASE-SR BiDi QSFP+ duplex LC transceiver for Brocade 40 Gigabit Ethernet connectivity.
Brocade 40G-QSFP-SR-BIDI Compatible 40GBASE-SR BiDi QSFP+ Transceiver (MMF, 832nm – 918nm, 100m, LC, DOM)
Optcore’s QSFP-40G-SR-BiDi transceiver offers a low-priced alternative replacement for Brocade 40G-QSFP-SR-BIDI 40GBASE-SR BiDi module without sacrificing the quality of your fiber optic network connectivity. This compatible QSFP-40G-SR-BiDi transceiver has been programmed and tested to work as the original Brocade 40G-QSFP-SR-BIDI 40GBASE-SR BiDi module. It is designed for use in 40 Gigabit Ethernet (40GE) applications over duplex multimode fiber. It is a high-performance 40GBASE-SR-BiDi QSFP+ optical Transceiver for 40G short-range duplex data communication and interconnects applications. This 40G transceiver operates on the wavelength of 832nm to 918nm via an LC connector and supports link lengths of 100m on OM3 multimode fiber or 150m on OM4 multimode fiber.
Features
• Cheap QSFP-40G-SR-BiDi transceiver compatible with your Brocade 40G-QSFP-SR-BIDI 40GBASE-SR BiDi LC Duplex Module
• Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
• Compliant to QSFP+ SFF-8436 Specification
• Aggregate bandwidth of 40Gbps
• Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
• QSFP MSA compliant
• Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
• Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
• Single +3.3V power supply
• Real-Time Digital Diagnostic Monitoring
• Operating temperature range:0~70ºC
• RoHS compliant and lead-free
Specification
| Compatible OEM Part Number | 40G-QSFP-SR-BIDI | Optcore Part Number | QSFP-40G-SR-BIDI-BRO |
| Form Factor | QSFP+ | Data Rate | 40 Gb/s |
| Wavelength | 832nm – 918nm | Fiber Type | MMF |
| Max Distance | 150m@OM4 or 100m@OM3 | Optical Components | VCSEL/PIN |
| Transmitter Power | -4.0 ~ +5.0dBm | Extinction ratio | 3.5dB |
| Receiver Sensitivity | <-11.0dBm | Receiver Overload | 0.5dBm |
| Connector | LC duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | ● Low EMI radiation Switches, servers and routers ● Telecommunication and wireless infrastructure ● Test and measurement equipment ● Networked storage systems ● Data Center networks ● Storage area networks |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Brocade. Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.07 kg |
|---|
