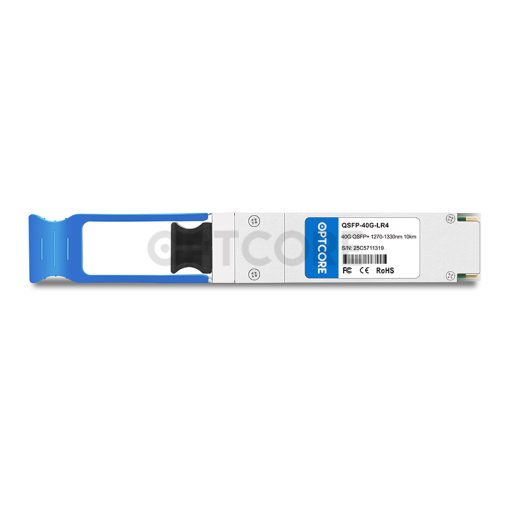

Planet QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Transceiver
US$ 99.00 (Excl. VAT)
40GBASE-LR4 QSFP+ Transceiver (SMF, 1270 to 1330nm, 10km, LC, DOM) for use with Planet 40G data center switches.
Planet QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ Transceiver (SMF, 1270nm to 1330nm, 10km, LC, DOM)
This 40GBASE-LR4 QSFP+ transceiver offers a low pricing replacement to Planet QSFP-40G-LR4. It is programmed and tested to work with Planet 40 Gigabit Ethernet (GbE) switches and routers. This compatible QSFP-40G-LR4 is specifically designed for 40G Ethernet and high-performance computing networks applications. The 40GBASE-LR4 QSFP+ Transceiver contains a LC Duplex connector for the optical interface and a 38-pin connector for the electrical interface.
Features
• Functionally identical to Planet QSFP-40G-LR4 40GBASE-LR4 QSFP transceiver
• High Channel Capacity: 40 Gbps per optics
• Up to 10km links on single-mode fiber
• Electrically hot-swappable
• Compliant with IEEE 802.3ba 40GBASE-LR4
• Power dissipation < 3.5 W
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant
Specification
| Compatible OEM Part Number | QSFP-40G-LR4 | Optcore Part Number | QSFP-40G-LR4-PLA |
| Form Factor | QSFP+ | Data Rate | 40 Gb/s |
| Wavelength | 1270,1290,1310,1330nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -7 ~ +2 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -11.5 dBm | Receiver Overload | > 3.3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | 40G switch and router, data aggregation, backplane, proprietary protocol and high-density applications |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Planet.
| Weight | 0.07 kg |
|---|
