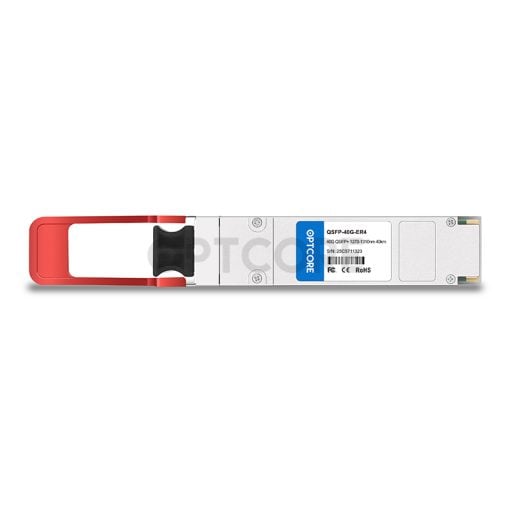

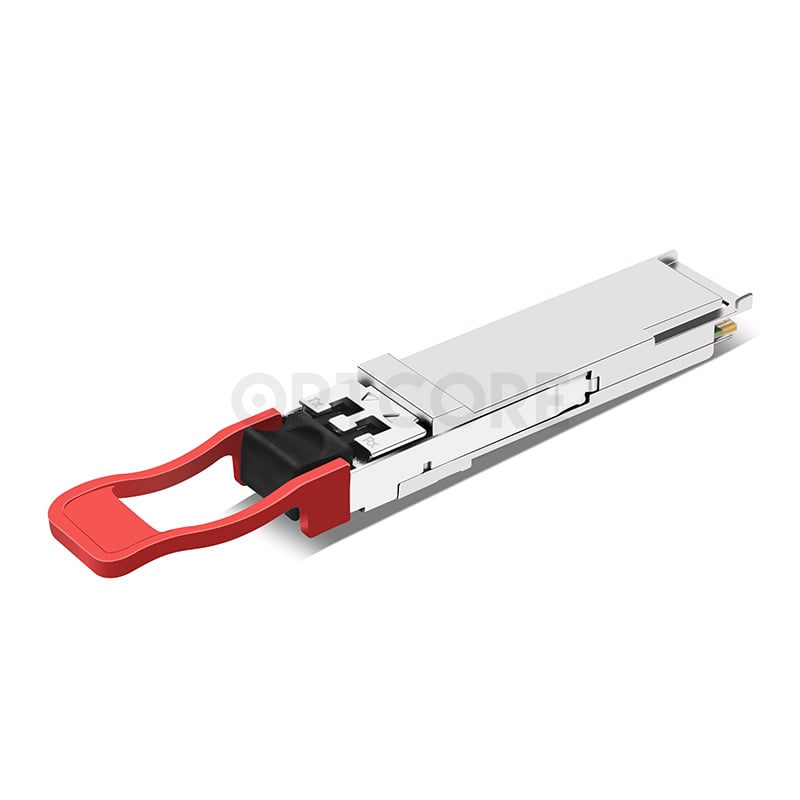

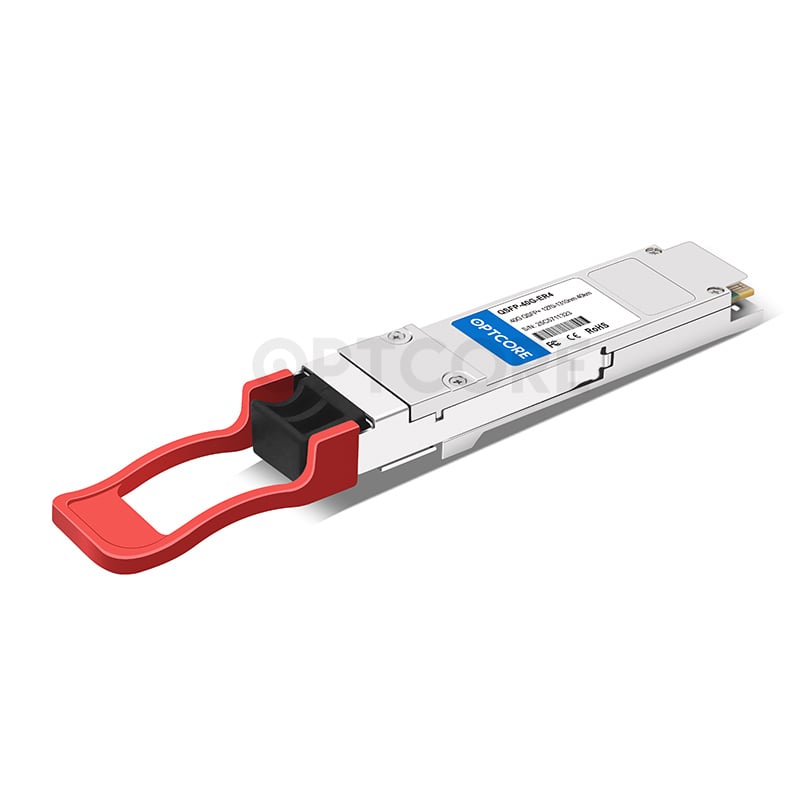

Generic Compatible 40G QSFP+ ER4 1271~1331nm 40km Transceiver
US$ 359.00 (Excl. VAT)
Good quality 40 QSFP+ ER4 Transceiver (40GBASE-ER4, SMF, CWDM 1271~1331nm, 10km, LC, DOM).
Generic Compatible 40G QSFP+ ER4 Transceiver (40GBASE-ER4, SMF, 1271~1311nm, LC, 40km, DOM)
The QSFP-40G-ER4-OP is a 4x10G hot-pluggable optical transceiver module. It is designed for 40km optical communication applications over single mode fiber. Optcore enables the integration of 4 transmitters, 4 receivers, and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP+ footprint. The QSFP-40G-ER4-OP a LC Duplex connector for the optical interface and a 148-pin connector for the electrical interface. The transceiver consists of 4 40 Gb/s CWDM channels, whose wavelengths are in the 1300nm range. The product is 40GBASE-ER4 of the IEEE P802.3ba standard.
Features
• High Channel Capacity: 40 Gbps per transceiver
• Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
• QSFP+ MSA compliant
• Compliant with QDR/DDR Infiniband data rates
• Up to 10.3Gb/s data rate per wavelength
• 4 CWDM lanes MUX/DEMUX design
• Up to 40km reach over standard single-mode fiber
• Operating case temperature 0°C to +70°C
• RoHS6 Compliant
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | QSFP-40G-ER4-OP |
| Form Factor | QSFP+ | Data Rate | 41.2 Gb/s |
| Wavelength | CWDM 1271,1291,1311,1331nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/APD |
| Transmitter Power | -3.7 ~ +4.5 dBm | Extinction ratio | > 5.5 dB |
| Receiver Sensitivity | < -18.0 dBm | Receiver Overload | > 3.3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.09 kg |
| Application | 40G Ethernet and OTU3 Proprietary Protocol and Density Applications Datacom/Telecom switch & router connections Data Aggregation and Backplane Applications High-performance computing networks Infiniband transmission at 4ch SDR, DDR and QDR |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS,SFF-8436,IEEE802.3ba |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.07 kg |
|---|
