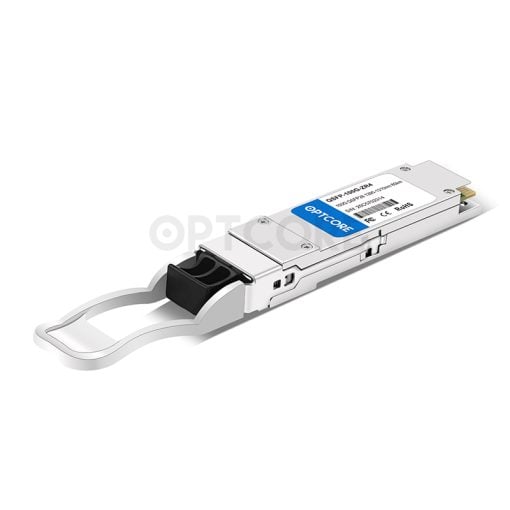

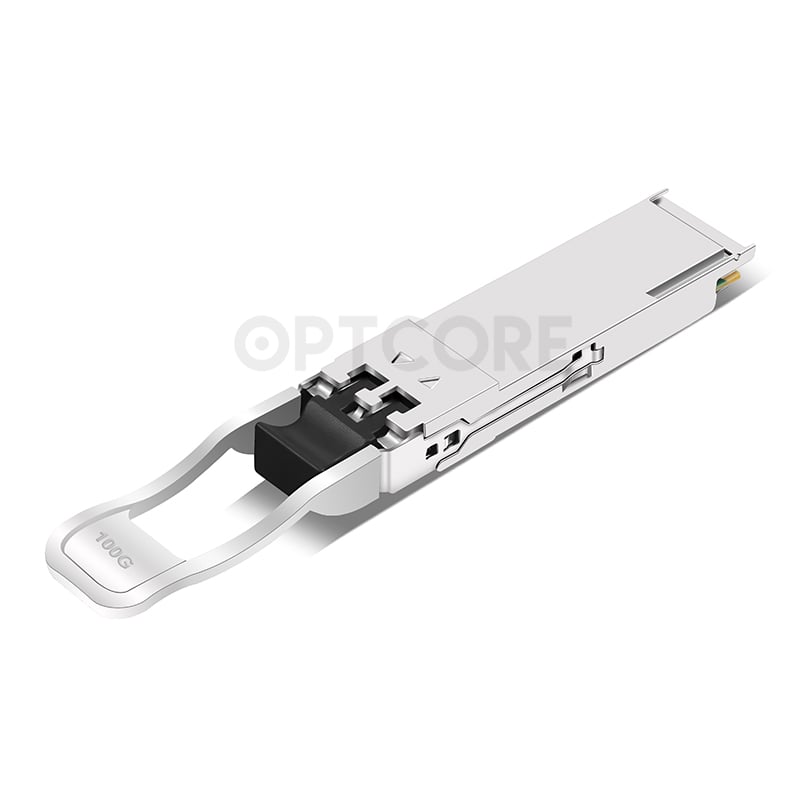

Generic QSFP-100G-ZR4 Compatible 100GBASE-ZR4 QSFP28 1310nm 80km Transceiver
US$ 1,499.00 (Excl. VAT)
Optcore compatible replacement for Generic 100GBASE-ZR4 QSFP28 transceiver, works in Generic 100G Ethernet switches, routers, servers and NICs.
Optcore for Generic QSFP-100G-ZR4 Compatible 100GBASE-ZR4 QSFP28 Transceiver (SMF, 1310nm, 80km, LC, DOM)
This Generic QSFP-100G-ZR4 compatible QSFP28 transceiver provides 100G throughput up to 80km on single mode fiber (SMF). It comes from the third-party supplier – Optcore but with far lower pricing. This 100G ZR4 transceiver integrates 4-channel EML on the transmitter, 1-channel SOA (Semiconductor Optical Amplifier), and 4-channel PIN on the receiver. It is suitable for 100G Ethernet fiber connectivity in data centers, high-performance computing networks, enterprise cores, distribution layers, and service provider applications.
Features
• Third-party compatible replacement for Generic 100GBASE-ZR4 QSFP28 Transceiver
• QSFP28 MSA compliant
• Compliant with SFF-8665 and SFF-8679
• Metal enclosure for lower EMI
• Built-in digital diagnostic functions for real-time monitor
• RoHS compliant and lead-free
Proven Performance
When performance and reliability are vital, use our high-quality optics to build your network. Optcore optics are engineered, produced, and tested in-factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. Optcore optics are tested in multi switch devices for compatibility to ensure flawless functioning.
Enjoy Massive Saving
Compared to the original optics, the Optcore transceiver can save you up to 80% on project and networking cabling. You won’t find a better combination of quality and affordability.
Specification
| Compatible OEM Part# | QSFP-100G-ZR4 | Manufacturer | Optcore |
| Manufacturer Part# | QSFP28-100G-ZR4 | Form Factor | QSFP28 |
| Data Rate | 103.125 Gbps (4x 25.78Gbps) | Wavelength | 1295.6 nm, 1300.1 nm, 1304.6 nm, 1309.1 nm |
| Media Type | SMF | Max Distance | 80 km |
| Transmitter Type | 4 x LAN WDM EML | Receiver Type | SOA + PIN |
| Transmitter Power | 2.0 ~ 4.5 dBm | Receiver Sensitivity | < -28.0 dBm |
| Extinction Ratio | > 6.0 dB | Receiver Overload | > -7.0 dBm |
| Connector | LC Duplex | Max Power Consumption | 6.5 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH QSFP28 MSA |
| Packaging Technology | BOX Packaging | Modulation | NRZ |
| Environment | Operating Temperature: 0 to 70°C Storage Temperature: -40 to 85°C Operating Humidity: 5% to 85%, Non-condensing Storage Humidity: 5% to 95%, Non-condensing |
Application | 100GBASE-ZR4 Ethernet Links Infiniband QDR and DDR interconnects Telecom networking |
| Shipping Weight | 0.09 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm (4.66 x 0.72 x 0.33 in) |
| What’s In The Box | 1x QSFP28 Transceiver | Country Of Origin | China |
Compatibility
• Generic network switches
• Generic network routers
• Generic firewalls
• Generic security gateway
• Generic fiber media converter
• Generic network adapters
• Generic network interface card (NICs)
• Generic NAS
Ordering Information
| Manufacturer Part Number | Description |
| QSFP28-100G-ZR4 | Optcore for Generic QSFP-100G-ZR4 Compatible 100GBASE-ZR4 QSFP28 Transceiver, SMF, 1310nm, 80km, LC, DOM |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Generic.
