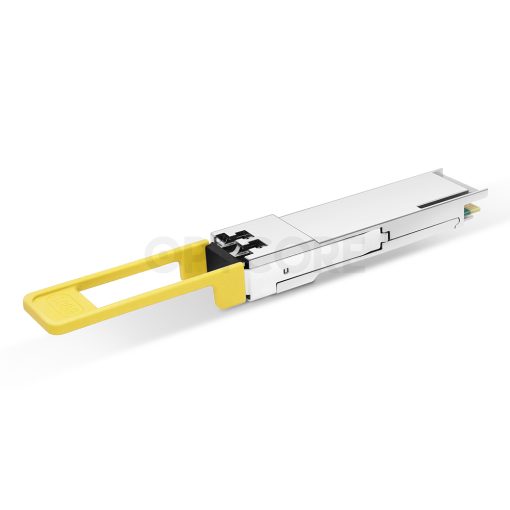

Cisco QSFP-100G-FR-S Compatible 100G QSFP28 FR 1310nm 2km Transceiver
US$ 209.00 (Excl. VAT)
OPTCORE replacement for Cisco QSFP-100G-FR-S 100G QSFP28 FR transceiver, works flawlessly in Cisco 100G Ethernet switches, routers, servers and NICs.
Cisco QSFP-100G-FR-S Compatible 100GBase-FR QSFP28 Single Lambda Transceiver (SMF, 1310nm, 2km, LC, DOM)
Buy a reliable Cisco QSFP-100G-FR-S compatible QSFP28 transceiver at OPTCORE! The QSFP28 FR transceiver is targeted for use in 100G Ethernet interconnects over 2km single-mode fibers. With the built-in gearbox chip, this transceiver can convert 4x 25Gbps (NRZ) electrical signals to 1x 100Gbps (PAM4) optical signals. The transceiver complies with the QSFP28 MSA, 100GBASE-FR, and CAUI-4. It is suitable for fiber connectivity in large-scale data centers, high-performance computing networks, enterprise core, and service provider applications.
Features
- OPTCORE replacement for Cisco QSFP-100G-FR-S 100GBase-FR QSFP28 transceiver
- Compliant with QSFP28 MSA and Single Lambda MSA 100G-FR specification
- Maximum Power Consumption of 4.5W
- Interoperate with 400G-DR4 and 400G-XDR4 transceivers using breakout cables
- NOT Interoperate with legacy 100GBASE-LR4, 100GBASE-PSM4 and 100GBASE-CWDM4 transceiver
- Built-in digital diagnostic functions for real-time monitor
- 1310nm PAM4 modulated signal
Proven Performance
When performance and reliability are vital, use our QSFP28 transceiver to build your network. OPTCORE 100G modules are engineered, produced, and tested in the factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. OPTCORE QSFP28 transceivers are tested in multi-switch devices for compatibility to ensure flawless functioning.
Enjoy Massive Saving
Compared to the original optics, the OPTCORE QSFP28 transceiver can save you up to 80% on project and networking cabling. You won't find a better combination of quality and affordability.Specification
| Compatible OEM Part# | QSFP-100G-FR-S | Manufacturer | OPTCORE |
| Manufacturer Part# | QSFP-100G-FR | Form Factor | QSFP28 |
| Data Rate | 100 Gbps | Wavelength | 1310 nm |
| Media Type | SMF | Max Distance | 2 km |
| Transmitter Type | EML | Receiver Type | PIN |
| Transmitter Power | -2.4 ~ 4.0 dBm | Receiver Sensitivity | < -6.4 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 4.0 dBm |
| Connector | LC Duplex | Max Power Consumption | 4.5 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH QSFP28 MSA, 100G Lambda MSA |
| Environment | Operating Temperature: 0 to 70 °C Storage Temperature: -40 to 85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95% |
Application | 100G Ethernet transmission Data Center Interconnect Enterprise networking High-performance computing clusters |
| Shipping Weight | 0.07 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
Compatibility
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.07 kg |
|---|
