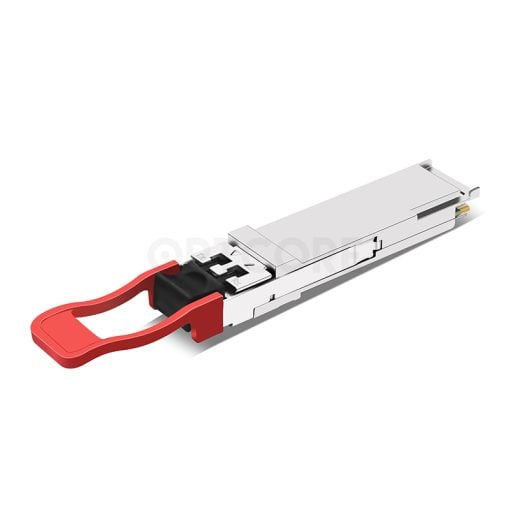

Generic Compatible 100G QSFP28 ER4 Lite 1310nm 25km Transceiver

Generic Compatible 100GBASE-ER4 QSFP28 Transceiver (SMF, 1295-1310nm, 25km, LC, DOM)

Optcore’s QSFP-100G-ER4L is a 100 Gbps QSFP28 optical transceiver designed for optical communication applications compliant to Ethernet 100GBASE-ER4 Lite standard. It is compliant with the QSFP28 MSA and IEEE 802.3ba. The Transceiver converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. On the receiver side, the Transceiver de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 25km links without FEC and 32km links with FEC.

The QSFP28-100G-ER4L transceiver optics uses an MSA compliant 38 pin edge type connector on the electrical interface and uses a duplex LC connector on optical interface. It has built-in DOM functions per QSFP28 MSA, which allows real-time access to the following operating parameters: transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features

• QSFP28 MSA compliant
• Supports 103.1Gb/s aggregate bit rate
• Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA
• Receiver: 4x25Gb/s APD ROSA
• Up to 25km on G.652 SMF without FEC, or 32km with FEC
• Single 3.3V power supply
• Maximum power consumption 5.0W
• Duplex LC optical connector
• Built-in digital diagnostic function
• Operating case: 0°C to +70°C
• ROHS 6 compliant and lead-free

Specification

Download

 Data Sheet / Specs

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
