Generic Compatible 100G BiDi QSFP28 1271nm-TX/1331nm-RX 10km LC Transceiver
US$ 399.00 (Excl. VAT)
- OPTCORE replacement for Generic QSFP-100G-BX10-U QSFP28 transceiver
- Test in target switches for guaranteed compatibility and quality
- 100G QSFP28 MSA-compliant
- Maximum link length of 10km over a single mode fiber
- Built-in Digital Optical Monitoring functions for real-time monitor
Product Model:
QSFP-100G-BX10-U QSFP-100G-BX10D QSFP-100G-BX20U QSFP-100G-BX20D QSFP-100G-BX40U QSFP-100G-BX40D

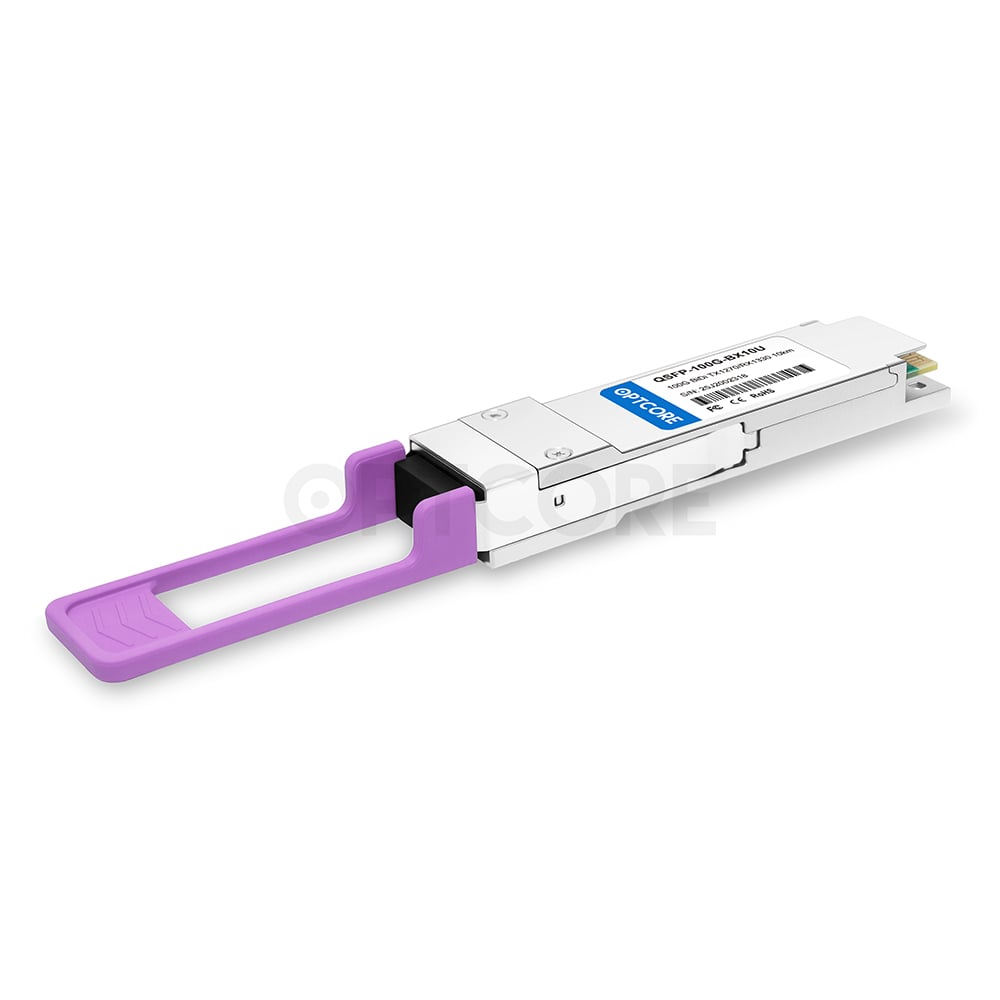

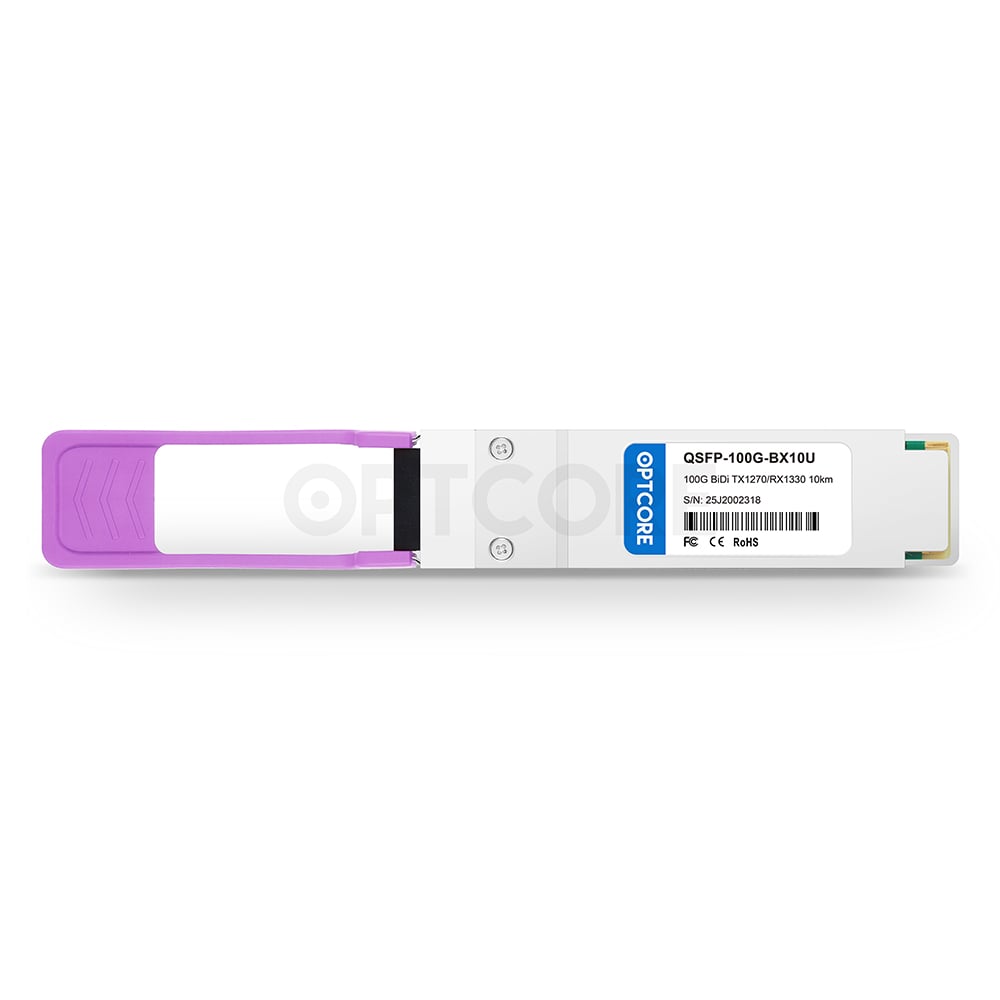

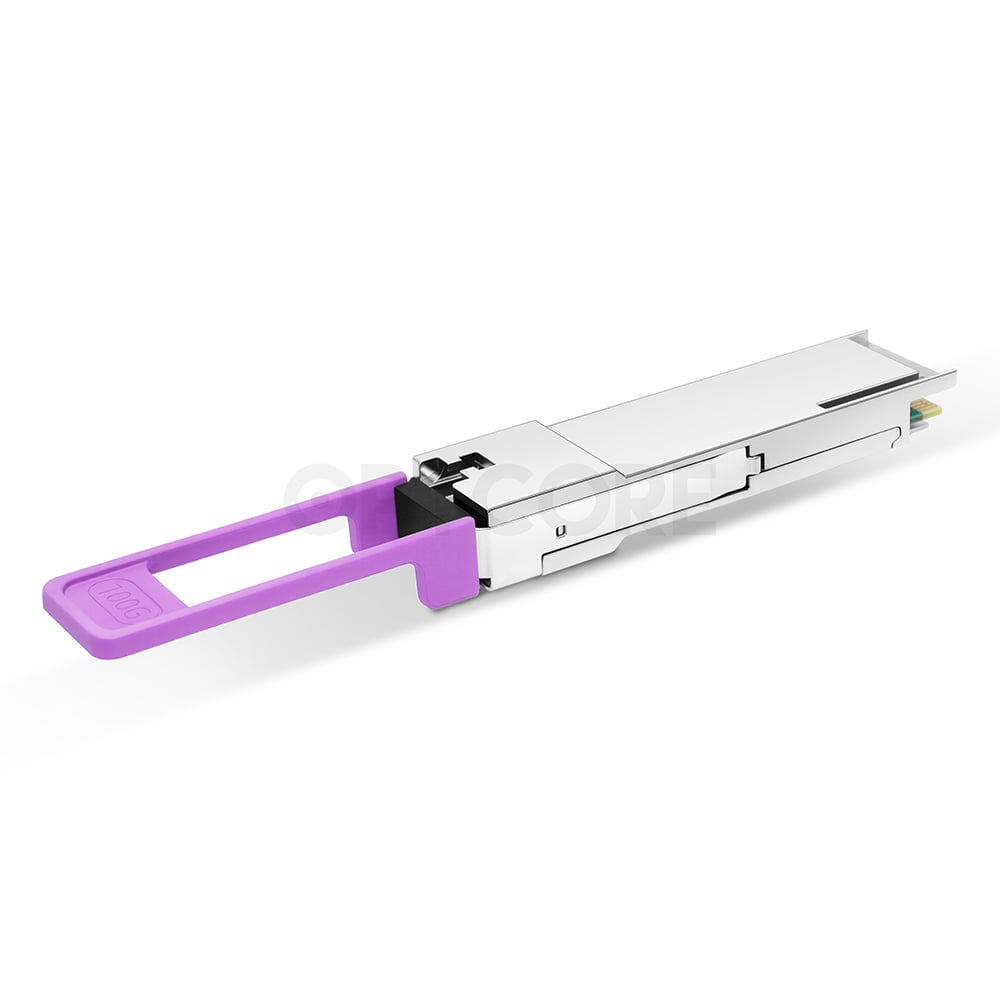

Generic Compatible 100GBASE-BX10-U BiDi QSFP28 Transceiver (SMF, 1271nm-TX/1331nm-RX, 10km, LC, DOM)
This generic compatible 100G BiDi QSFP28 transceiver supports 100GBASE-BX throughput up to 10km over a single-mode fiber. It has been coded and tested to perform identically to generic QSFP-100G-BX10U. This QSFP28 utilizes 1271nm-TX/1331nm-RX wavelength and simplex LC connector. Therefore, the network operator can double the transmission capacity without deploying new fiber. However, these bidirectional modules must be paired with another transceiver or network appliance that operates on complementary wavelengths. This 100G BiDi transceiver is suitable for fiber connectivity in data centers, high-performance computing networks, enterprise cores, and service provider applications.
Proven Performance
When performance and reliability are vital, use our QSFP28 transceiver to build your network. OPTCORE 100G modules are engineered, produced, and tested in the factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. OPTCORE QSFP28 transceivers are tested in multi-switch devices for compatibility to ensure flawless functioning.
Enjoy Massive Saving
Compared to the original optics, the OPTCORE QSFP28 transceiver can save you up to 80% on project and networking cabling. You won't find a better combination of quality and affordability.Specification
| Compatible OEM Part# | QSFP-100G-BX10U | Manufacturer | OPTCORE |
| Manufacturer Part# | Q28-100G-BX10-U | Form Factor | BiDi QSFP28 |
| Data Rate | 100 Gbps | Wavelength | 1271nm-TX/1331nm-RX |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | EML | Receiver Type | PIN |
| Transmitter Power | -1.4 ~ 4.5 dBm | Receiver Sensitivity | < -6.1 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 5.5 dBm |
| Connector | LC Simplex | Max Power Consumption | 4 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH
QSFP28 MSA, CEI-28G-VSR, SFF-8636, SFF-8679 |
| Environment | Operating Temperature: 0~70 °C
Storage Temperature: -40~85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95% |
Application | 100G Ethernet
Data Center High-performance computing clusters Fibre Channel |
| Shipping Weight | 0.07 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
Compatibility
- Generic network switches
- Generic network routers
- Generic firewalls
- Generic security gateway
- Generic fiber media converter
- Generic network adapters
- Generic network interface card (NICs)
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Generic.
| Weight | 0.07 kg |
|---|
