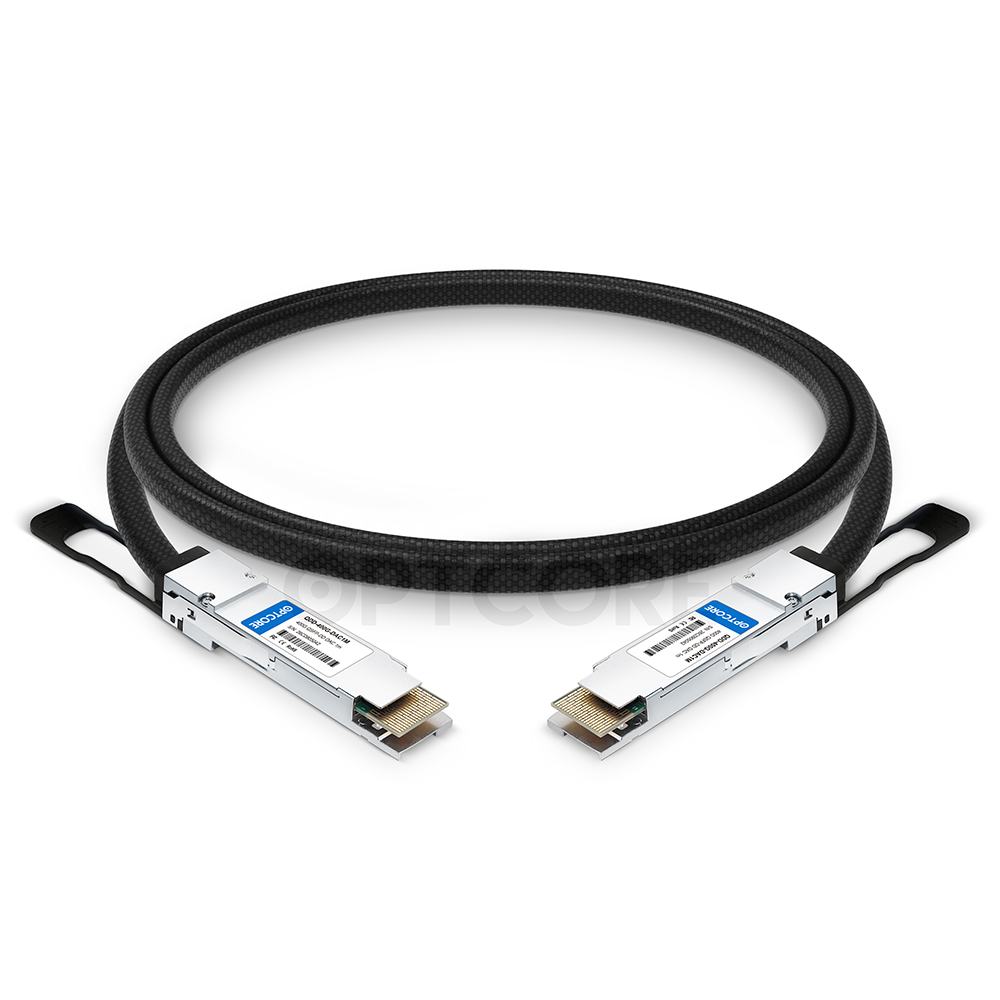

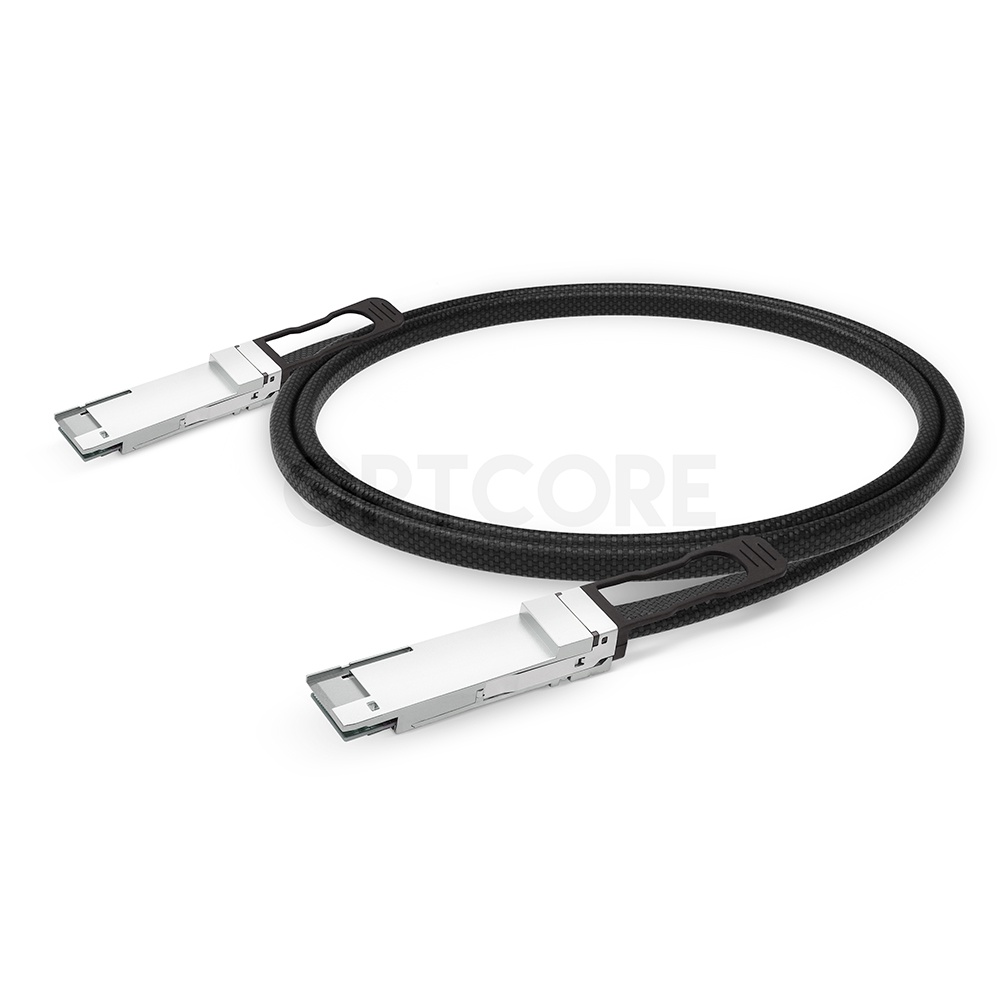

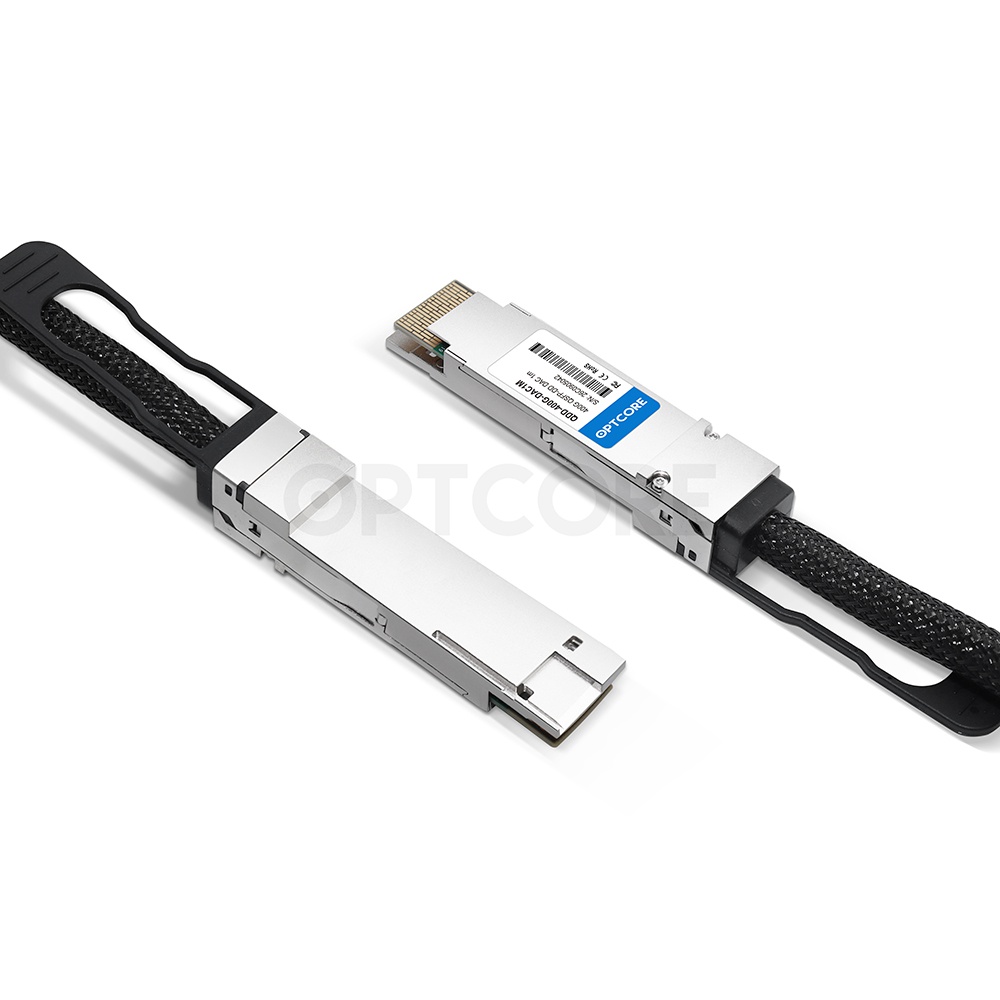

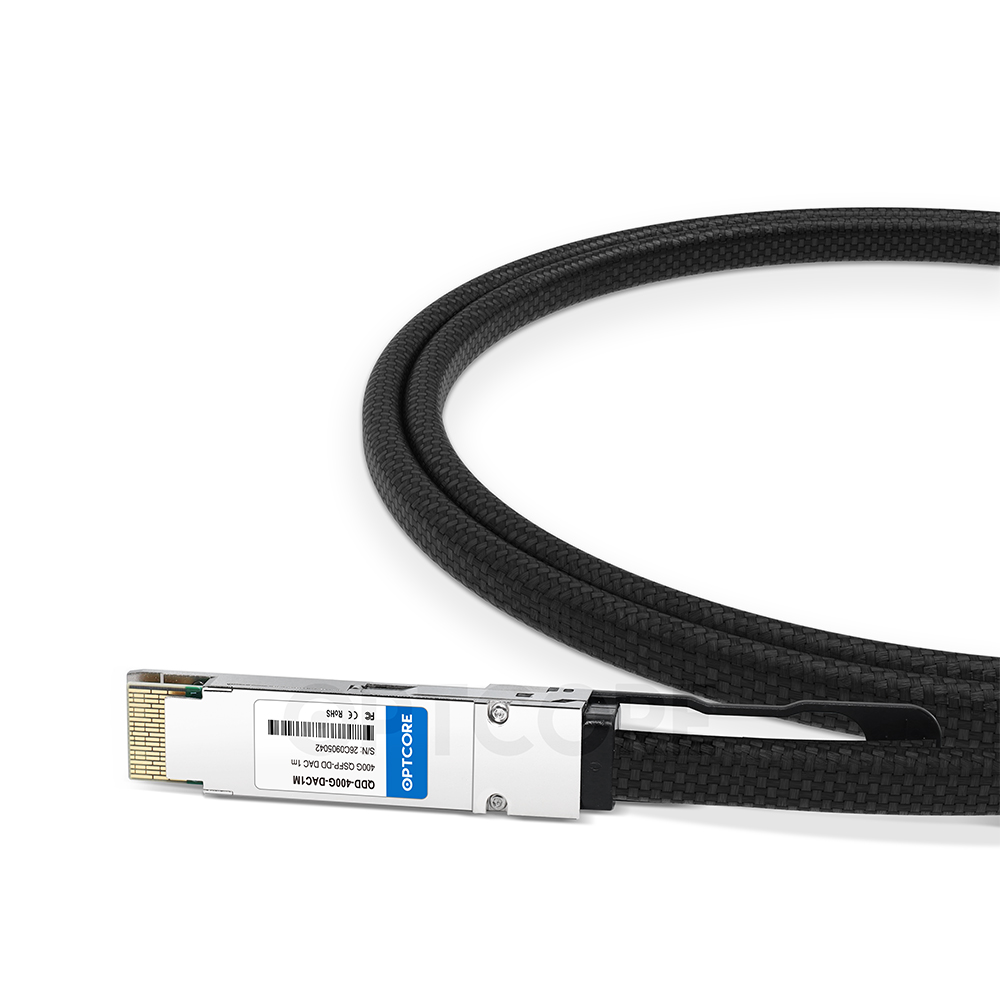

1m (3ft) Generic Compatible 400G QSFP-DD Passive DAC Cable
US$ 109.00 (Excl. VAT)
Good quality 400G QSFP-DD DAC Cable (1-meter, 30AWG, Passive).
Generic Compatible 400G QSFP-DD Direct Attach Copper Twinax Cable (1-meter, Passive, 30AWG)
The QDD-400G-DAC-PxM direct attach copper cable assembly (also known as QSFP-DD DAC) is suitable for very short links and offers a highly cost-effective way to establish a 400 Gigabit link connectivity between devices using QSFP-DD ports. It is developed specifically as a cost-effective and lower-power replacement to 400G QSFP-DD SR8 transceiver optics and QSFP-DD active optical fiber (400G QSFP-DD AOC) for very short distances.
Features
• QSFP-DD MSA compliant
• Up to 400Gb/s data rate
• 8 x 50Gb/s PAM4 modulation
• SFF-8636 compliant I2C management interface
• Up to 3m transmission
• Single 3.3V power supply
• Low insertion loss
• RoHS Compliant and Lead-Free
Specification
| Product Series | 400G QSFP-DD DAC Cable | Optcore Part Number | QDD-400G-DAC1M |
| Form Factor | QSFP-DD to QSFP-DD | Data Rate | 400 Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 1 meter | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum cable bend radius | 35 mm | Cable Jacket Type | PVC |
| Connector | QSFP-DD/QSFP-DD | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.4 kg |
| Application | Switches, servers, and routers Data Center networks Storage area networks High-performance computing Telecommunication and network infrastructure Fibre Channel over Ethernet |
Compliance | IEEE802.3bj SFF-8679, SFF-8636, RoHS |
Ordering Information
| Part number | Description |
| QDD-400G-DAC05M | 400G QSFP-DD Direct Attach Copper Cable, Passive, 0.5m, AWG30 |
| QDD-400G-DAC1M | 400G QSFP-DD Direct Attach Copper Cable, Passive, 1m, AWG30 |
| QDD-400G-DAC2M | 400G QSFP-DD Direct Attach Copper Cable, Passive, 2m, AWG28 |
| QDD-400G-DAC3M | 400G QSFP-DD Direct Attach Copper Cable, Passive, 3m, AWG26 |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
