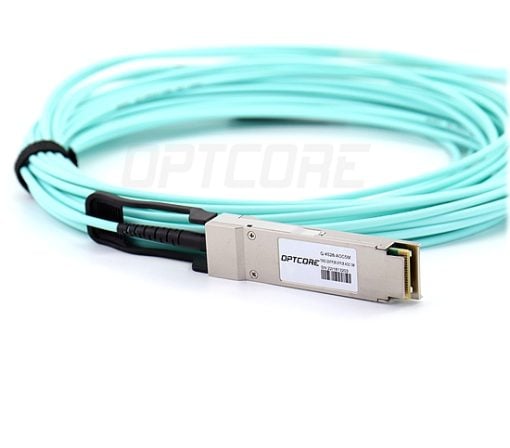

1~100m 100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable (AOC)
Price range: US$ 150.00 through US$ 310.00 (Excl. VAT)
100G QSFP28 to 4x25G SFP28 Active Optical Cable (AOC, 1~100m, 850nm, OM3).
100G QSFP28 to 4x25G SFP28 Breakout Active Optical Cable (1~100 meter, QSFP28 to SFP28 AOC)
Optcore® Q-4S28-AOCxM family is 100G QSFP28 to 4x25G SFP28 breakout Active optical cables (AOC) for the interconnect between 100G Ethernet (100GbE) and 25G Ethernet (25GbE) applications. This QSFP28 to 4x SFP28 AOC cable is a 100GBase QSFP28 hybrid optical cable, which is also known as 100G QSFP28 splitter AOC or 100G QSFP28 Fan-out AOC. The 100G QSFP28 breakout AOC offers four parallel, bi-directional channels each operating at up to 25 Gbps. Using industry-leading VCSEL technology, an advanced new light-engine design, and OM3 multimode fiber, this AOC delivers exceptional cost and performance value for 25G and 100G application at distances up to 100 meters. The QSFP28 Fanout AOC can replace the traditional 100G QSFP28 copper cables with the added benefit of lighter weight and smaller diameter solution.
Features
• Supports 100G to 4x 25G Ethernet interoperability
• SFF-8436 QSFP28 compliant connector
• 4x SFF-8431 compliant SFP28 connectors
• 4 channels 850nm VCSEL array
• Less cabling to order and manage
• Available in lengths of 1m to 100m
• 3.3V power supply voltage
• Operating case temperature: 0 to 70℃
• RoHS-6 compliant
Specification
| Product Series | Breakout Active Optical Cable (AOC) | Optcore Part Number | Q-4S28-AOCxM |
| Form Factor | QSFP28 Breakout AOC | Data Rate | 100 Gb/s |
| Wavelength | 850 nm | Supply Voltage | 3.3V |
| Cable Color | Aqua | Fiber Type | OM3 MMF |
| Cable Length | 1~100 meter | Cable Diameter | 3 mm |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | LSZH |
| Connector | QSFP28 to SFP28 | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.1 kg (1m) |
| Application | IEEE 802.3bm 100GBASE-SR4 IEEE 802.3by 25GBASE-SR InfiniBand SDR/DDR/QDR High-Performance Computing (HPC) clusters Servers, switches, storage and host card adapters |
Compliance | RoHS |
Ordering Information
| Part number | Description |
| Q-4S10G-AOC1M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 1 meter |
| Q-4S10G-AOC3M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 3 meter |
| Q-4S10G-AOC5M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 5 meter |
| Q-4S10G-AOC10M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 10 meter |
| Q-4S10G-AOC20M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 20 meter |
| Q-4S10G-AOC50M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 50 meter |
| Q-4S10G-AOC100M | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), 100 meter |
| Q-4S10G-AOCxM | 100G QSFP28 to 4x 25G SFP28 Breakout Active Optical Cable (AOC), Customized Length x meter Active Optical Cable (AOC) |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
