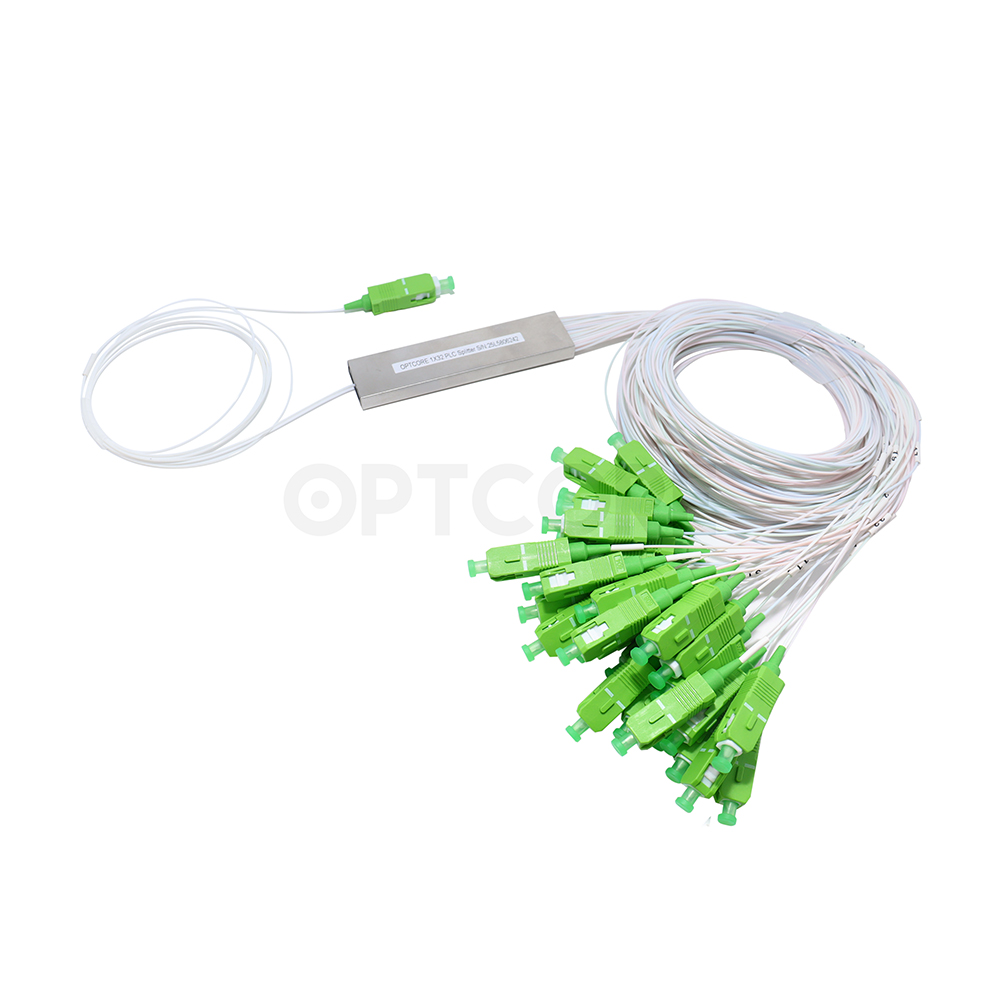

1×64 PLC Fiber Splitter, Mini Module, 0.9mm, SC/APC, Singlemode
US$ 39.00 (Excl. VAT)
This Blockless PLC splitter provides Low Insertion Loss and Low PDL, Ideal for EPON, GPON, XGS-PON, FTTH/FTTx, and CATV systems.
Product Model:
Available on backorder
1×64 Blockless Fiber PLC Splitter (Singlemode, 0.9mm Fiber, SC/APC, 1.5m In/Out Length)

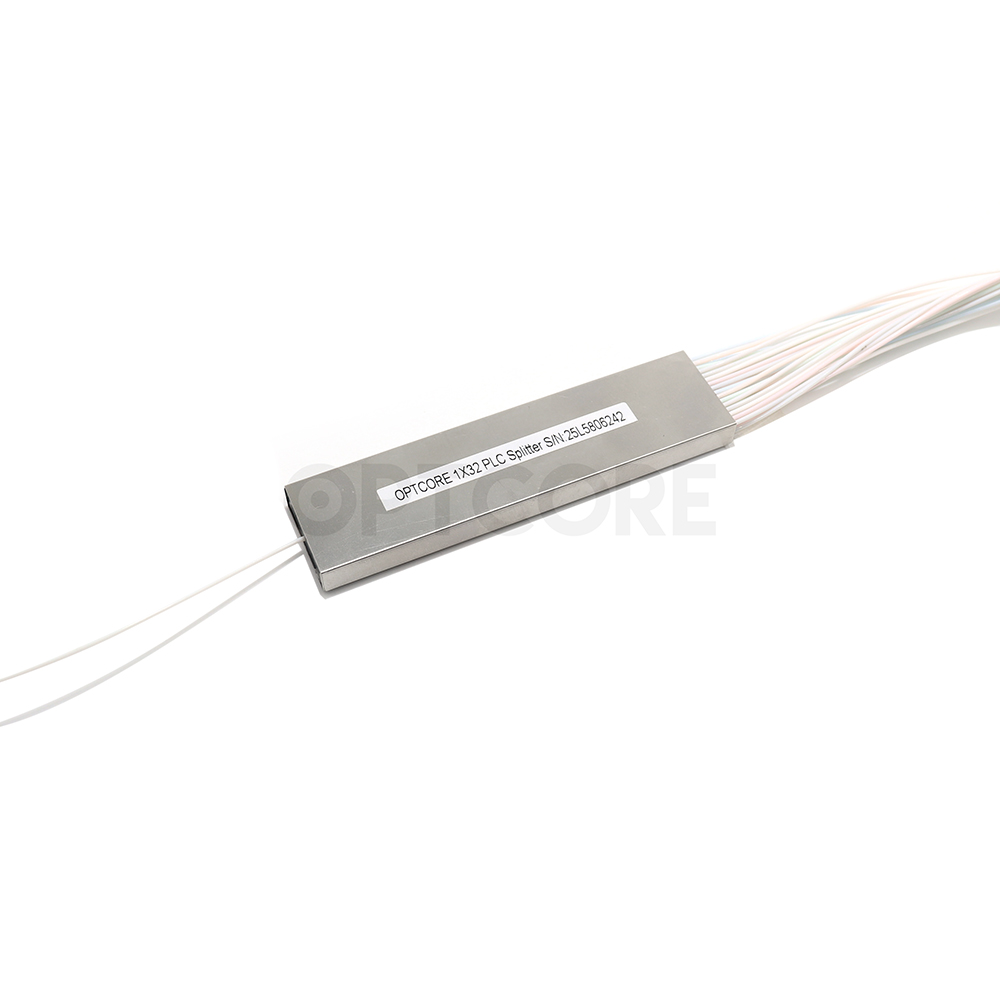

Planar lightwave circuit (PLC) splitter is a form of optical power management device that distributes or combines optical signals. It uses silica optical waveguide technology to provide a low-cost light distribution solution. The blockless PLC splitter features a compact design to minimize space requirements. It is frequently used for connections in network cabinets, distribution boxes, CATV links, and other passive optical networks.
Features
• Divides single optical input power into sixty-four optical outputs
• Low insertion loss and low polarization-dependent loss (PDL)
• Wide operating wavelength and wide operating temperature
• Compact design
• Highly Stable & Reliable
• High Uniformity
Specification
| Product Series | PLC Fiber Splitter | Manufacturer | OPTCORE |
| Manufacturer Part# | PLC-MM-164-09-15 | Configuration Type | 1×64 |
| Package Style | Mini Module | Operating Wavelength | 1260~1650nm |
| Fiber Type | Singlemode G657A1 | Connector Type | None |
| Input/Output Fiber Diameter | 900μm | Input/Output Fiber Length | 1.5m |
| Insertion Loss | ≤21.5dB | Loss Uniformity | <2.0dB |
| Return Loss | ≥55dB | Polarization Dependent Loss | ≤0.4dB |
| Directivity | ≥55dB | Wavelength Dependent Loss(dB) | ≤0.5dB |
| Environment | Operating Temperature: 0 to 70 °C Storage Temperature: -40 to 85 °C |
Dimensions (L x W x H) | 50x7x4mm |
Ordering Information
| Manufacturer Part Number | Description |
| PLC-MM-164-09-15 | 1×64 PLC Fiber Splitter, Mini Module, 900μm Fiber, SC/APC, Singlemode, 1.5m In/Out Fiber Length |
Download
| Weight | 0.77 kg |
|---|
