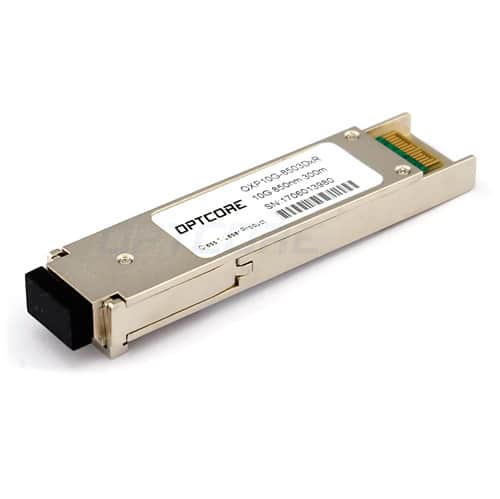

Planet MTB-XSR Compatible 10GBASE-SR 850nm 300m XFP Transceiver
US$ 42.00 (Excl. VAT)
Planet MTB-XSR compatible 10GBASE-SR XFP module for use with Planet network equipment.
Similar Products
MTB-XLR
Planet MTB-XSR Compatible 10GBASE-SR XFP Module (MMF, 850nm, 300m, LC)
Planet compatible MTB-XSR is an XFP module for 9.95Gbps to 11.1Gbps data transmission applications. This product is programmed to be compatible with a wide range of Planet network equipment, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Planet MTB-XSR.
Features
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• 850nm VCSEL laser and PIN receiver
• Distance up to 300m on multimode OM3 fiber
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | MTB-XSR | Optcore Part Number | OXP10G-8503DCR-PLA |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 300 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Planet.
| Weight | 0.05 kg |
|---|
