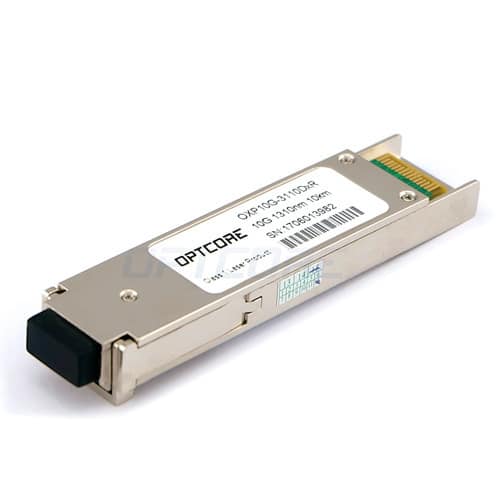

Planet MTB-XLR Compatible 10GBASE-LR 1310nm 10km XFP Transceiver
US$ 56.00 (Excl. VAT)
Good quality Planet MTB-XLR compatible 10GBASE-LR XFP module for use with Planet network equipment.
Similar Products
MTB-XSR
Planet MTB-XLR Compatible 10GBASE-LR XFP Module (SMF, 1310nm,10KM, LC)
Planet compatible MTB-XLR is an XFP module for 9.95Gbps to 11.1Gbps data transmission applications. It is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-SM-LL-L. It provides 10-Gigabit connectivity up to 10km on single mode fiber (SMF) at 1310nm. This product is programmed to be compatible with a wide range of Planet network equipment, such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Planet MTB-XLR.
Features
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Uncooled 1310nm DFB transmitter, PIN photo-detector
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | MTB-XLR | Optcore Part Number | OXP10G-3110DCR-PLA |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Planet.
| Weight | 0.05 kg |
|---|
