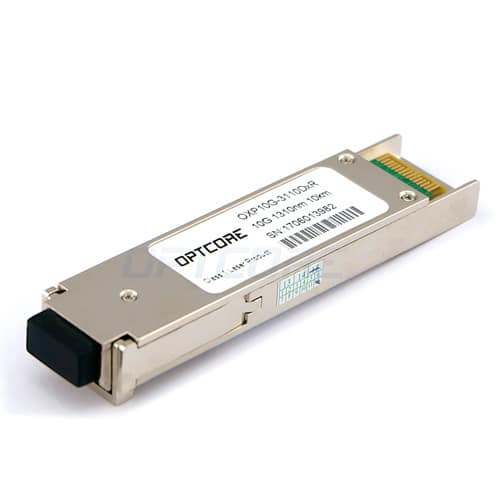

ZYX FTLX1412D3BCL (XFP-LR) Compatible 10GBASE-LR 1310nm 10km XFP Transceiver
US$ 56.00 (Excl. VAT)
Good quality ZYX FTLX1412D3BCL (XFP-LR) compatible 10GBASE-LR XFP Transceiver (SMF, 1310nm, 10km, LC, DDM).
ZYX FTLX1412D3BCL (XFP-LR) Compatible 10GBASE-LR SMF 1310nm 10km XFP Optical Transceiver Module
Optcore’s OXP10G-3110DCR-ZYX is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-SM-LL-L. It provides 10-Gigabit connectivity up to 10km on single-mode fiber (SMF) at 1310nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product that complies with FDA/CDRH and IEC-60825 standards.
Additionally, the OXP10G-3110DCR-ZYX XFP transceiver is programmed to be compatible with a wide range of ZYX network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to a high-cost ZYX FTLX1412D3BCL (XFP-LR) module.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Uncooled 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• LC Duplex connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible With OEM Part # | FTLX1412D3BCL (XFP-LR) | Optcore Part Number | OXP10G-3110DCR-ZYX |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by ZYX.
| Weight | 0.05 kg |
|---|
