2Mbps TTL 1310nm 60km 1×9 Transceiver

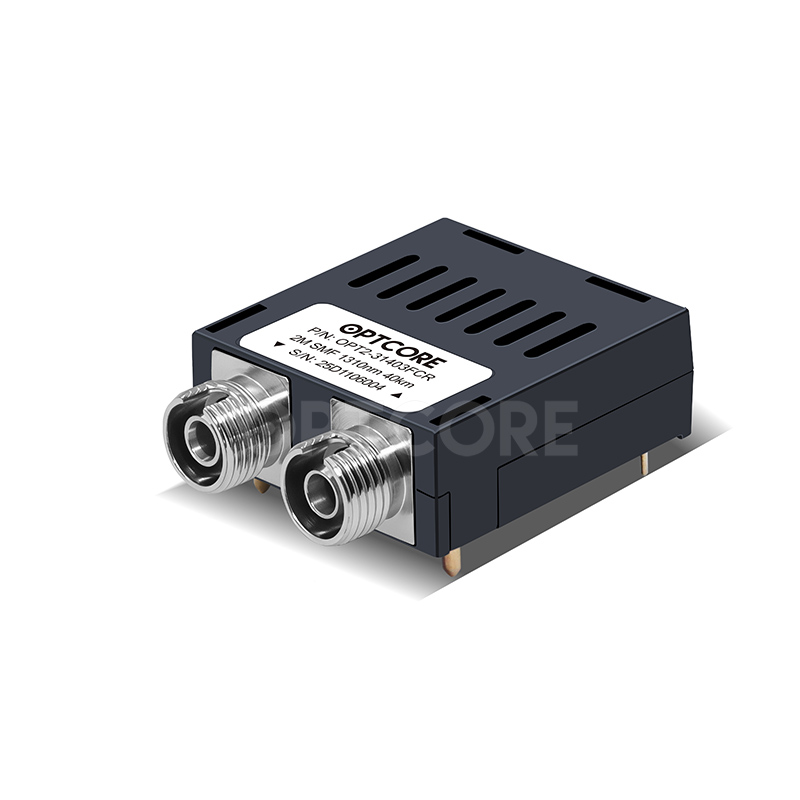

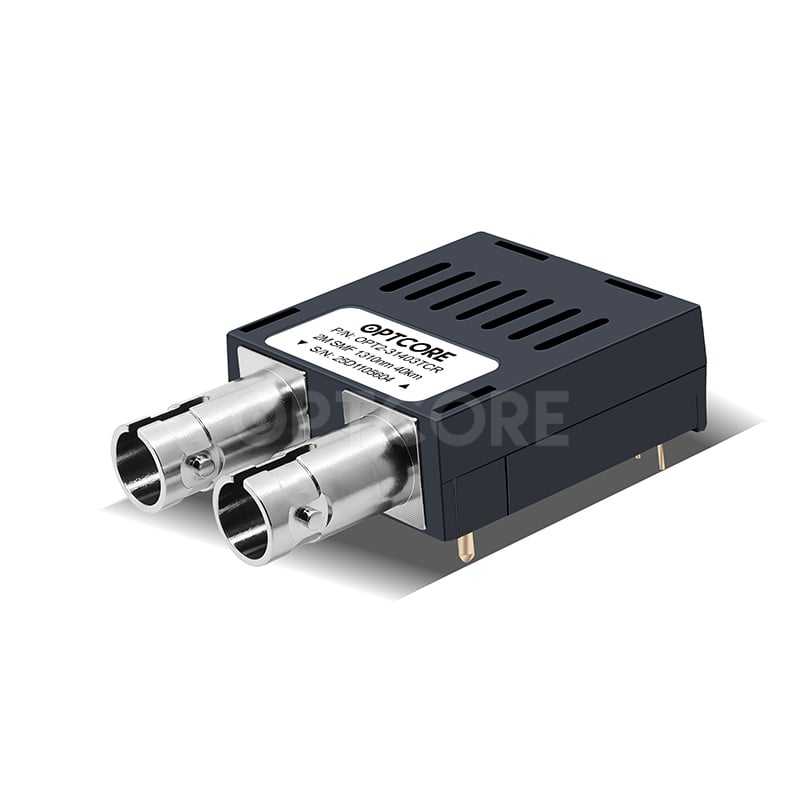

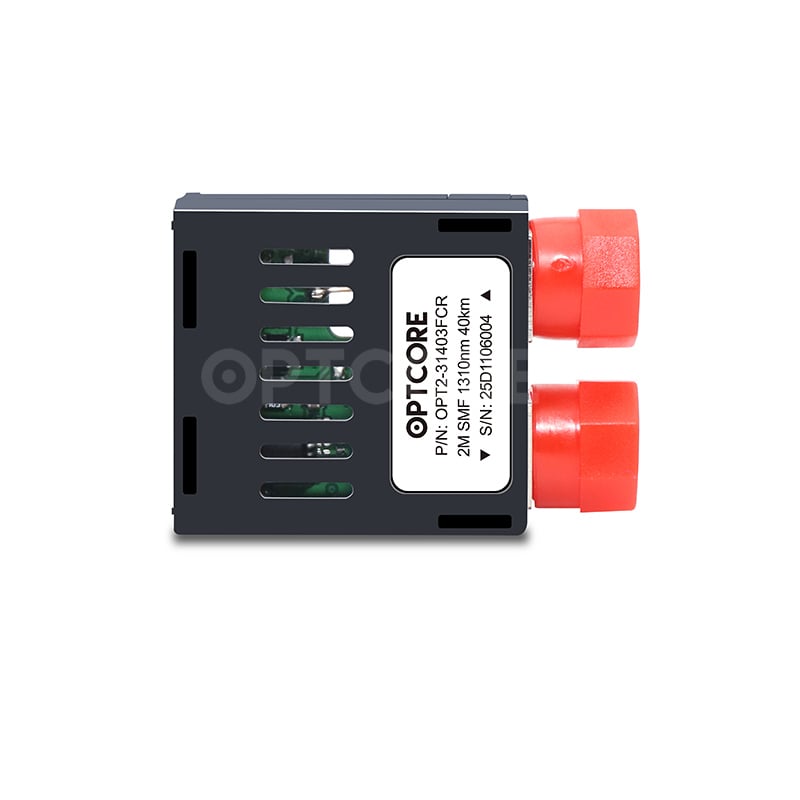

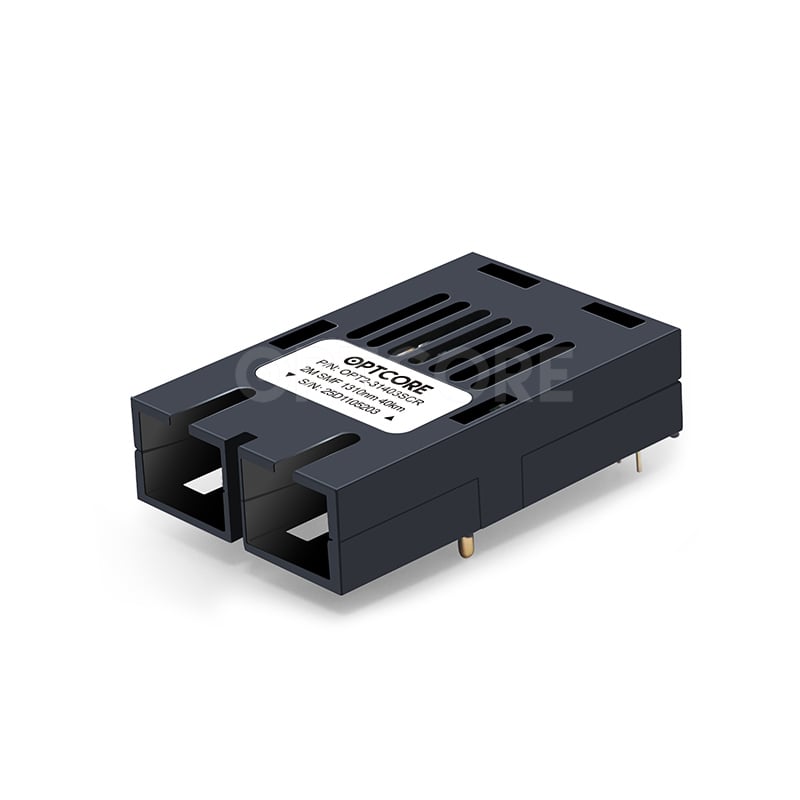

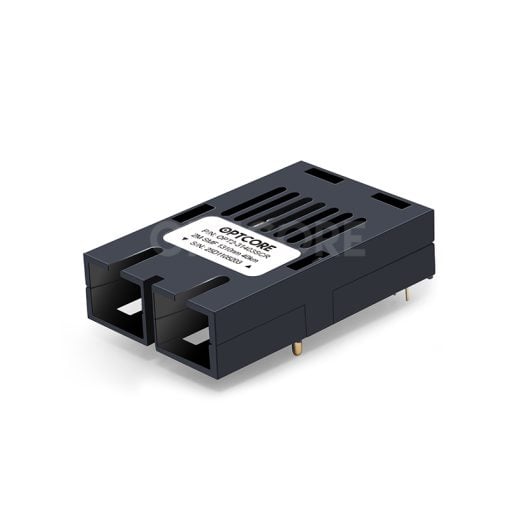

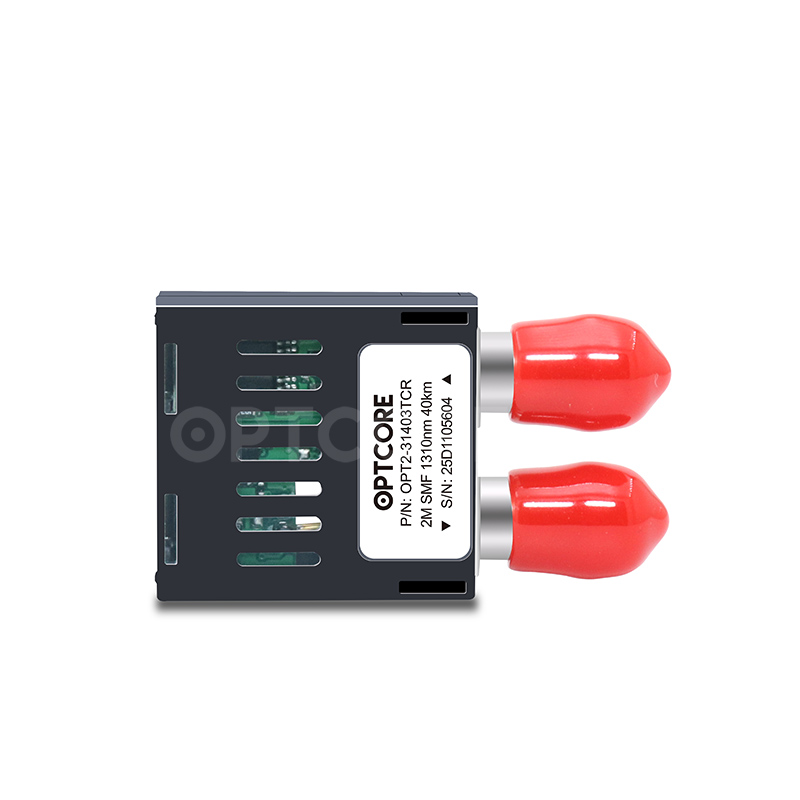

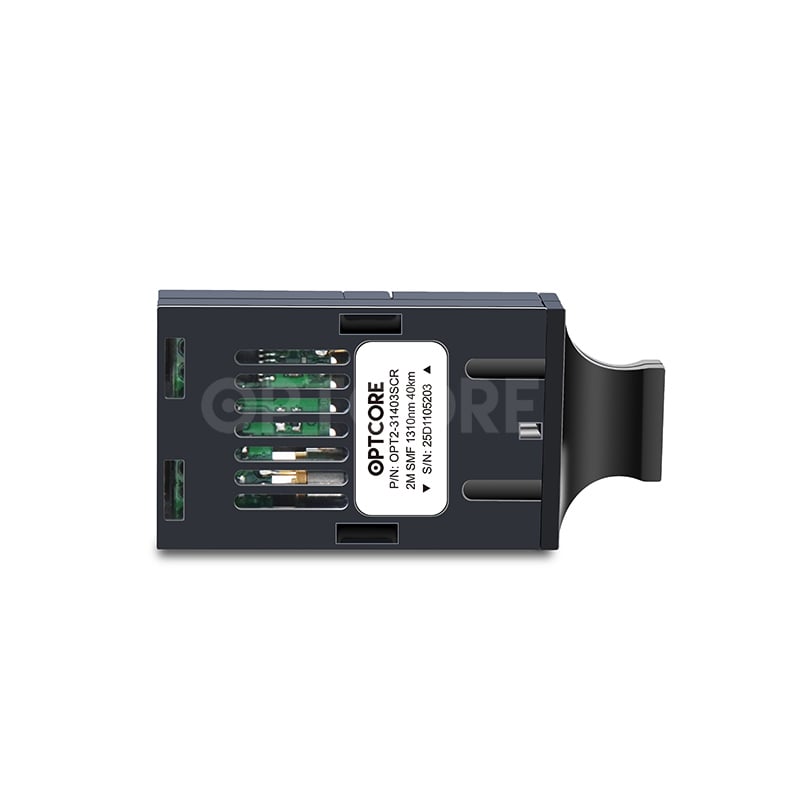

2Mbps TTL 1×9 Long Reach Transceiver Module (SMF, 1310nm, 60km, Duplex SC/FC/ST, 0~70°C)

At present, the maximum transmission distance supports only ~20km in low-speed data (0~2MHz) optical transmission for 485/232 data or CPU serial communication in industrial control. More and more IT users are now asking for longer transmission distances to overcome better the link loss caused by fiber multi-connectors. In response to this market demand, we developed a 0-2Mbps low-speed long-distance optical transceiver that supports the maximum transmission distance of 60km.

The 0~2Mbps TTL 1*9 long-distance optical transceivers family from Optcore provides the system designer and manufacturers with products to implement a range of industrial control, special low data rate Ethernet designs at the 0~2Mbps rate. This fiber optic transceivers series are all supplied in the industry-standard 1×9 SIP package. The transceivers provide high-performance, cost-effective optical modules for long-distance 60km transmission distance over single-mode fiber cable (SMF).

This 0~2Mbps TTL 1*9 long-distance transceiver helps you convert copper signals to the optical fiber in Industrial control, power plants, and subways. They are usually used for serial communications over fiber like RS-232/422/485 serial to fiber media converter and industrial Ethernet networks to fiber networks communications like industrial fiber optic converters and industrial Ethernet switches.

The OPT2-3160xxCR family 1×9 transceiver optics are commercial temperature grade products. Industrial temperature grade 1×9 transceivers for industrial Ethernet application in the hardened environment are also available, click here to learn more about OPT2-3160xxTR (0~2Mbps TTL 1×9 1310nm 60km Industrial Transceiver).

Features

• Duplex SC/ST/FC receptacle single-mode optical interface
• Single +3.3V or +5V Power Supply
• Standard TTL data output with signal detect indication, compatible with CMOS level
• Standard 1×9 footprint package
• Operating wavelength 1310nm
• Super low power consumption design, applied to some special require
• Optional transmission bit rate with down to 0bps and up to 2Mbps
• Operating case temperature: Standard 0 to +70°C
• ROHS compliant and Lead-Free

Specification

Ordering Information

Important Notice:

! This 0-2Mbps low-speed long-distance transceiver with the same application, outline size, pin definition like the conventional 0-2M low-speed transceiver (OPT2-3120xxxR series), but can NOT interconnect with each other.
! The rate of this transceiver module (Ex. The 8th pin of this transceiver) supports max 2Mbps.

Download

Datasheet

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
