OPMM-KT-100 Series Handheld Optical Multimeter, All-in-One OPM/VFL/Cable Tester
All-in-One Optical Multimeter, OPM+VFL+Cable Tester+LED lighting.
Handheld Optical Multimeter (Optical Power Meter + Visual Fault Locator + Network Cable Tester, 2.5mm Universal Connector for SC/FC/ST)

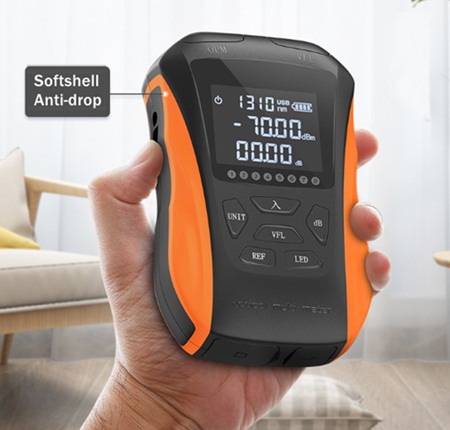

The OPMM-KT-100 Series are handheld optical power multimeter all-in-one tools. They are mainly used for continuous optical signal power measurement, optical fiber link loss, and fiber optic line on-off testing. Controlled with a single microprocessor, it is fully functional. Widely used in fiber optic cable construction and maintenance, fiber optic communication, fiber optic cable sensing, optical CATV, and other fields. The body design conforms to ergonomic requirements, using advanced cold molding technology, beautiful and durable. The optical power meter red light pen all-in-one machine uses an internal detector and laser, which can be well protected. The optical power meter/all-in-one machine has a compact form factor, automatic switcher function, red light power-adjustable, support laser range file, RJ45 pair and hunt, wavelength memory function, automatic identification of working frequency, support lighting, storage, and other functions.
Features
＊support lighting
＊support automatic power-on
＊support automatic shutdown
＊support memory wavelength function
＊support automatic identification frequency
＊support the user’s own calibration
＊support SC, FC, ST interface
＊support charging treasure, computer, and other external power supply
＊support linear (nW) and nonlinear indicators (dB)
＊support RJ45 testing
Specification
| Product Series | Optical Multimeter | Optcore Part Number | OPMM-100 Series |
| OPM Wavelength | 850/980/1300/1310/1490/1550/1625nm | Detector | InGaAs |
| OPM Measurement Range | -70 ~ +3dBm / -70 ~ +10dBm / -50 ~ +26dBm | Resolution(dB) | Linear display: 0.1% Logarithmic display: 0.01dBm |
| OPM Test Accuracy | ±0.2dBm | Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625nm |
| VFL Wavelength | 650nm light source | VFL Operation Mode | Pulsed (2Hz) and Continuous Wave (CW) |
| VFL Output Power | 1/5/10/15/20/30mW | Resolution(dB) | Linear display: 0.1% Logarithmic display: 0.01dBm |
| Connector | 2.5mm Universal Connector (SC/FC/ST) | Dimension | 190x90x45mm |
| Battery type | Lithium battery | Battery Life | ≥ 48 hours |
| Environment | Operating: -10°C to 60°C Storage: -20°C to 70°C |
Weight | 0.37 kg |
Package Included
1 x User Manual
1x RJ45 Test Module
How to Maintain
| Fault prompt | Possible Causes | Solution |
| The LCD display is weak | Insufficient power | Charge or replace the battery |
| Unable to display at boot | Insufficient power or other | Restart or charge |
| LCD display data is abnormal | The connector is faulty, dirty, or locked | Reconnect the connector and clean the sensor |
| Weak red light | Insufficient power | Recharge |
Order Information
| OPMM-KT-100 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+3dBm) + Visual Fault Locator (1mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-101 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+10dBm) + Visual Fault Locator (1mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-102 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-50~+26dBm) + Visual Fault Locator (1mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-111 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+10dBm) + Visual Fault Locator (10mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-112 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-50~+26dBm) + Visual Fault Locator (10mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-115 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+10dBm) + Visual Fault Locator (15mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-116 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-50~+26dBm) + Visual Fault Locator (15mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-121 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+10dBm) + Visual Fault Locator (20mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-122 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-50~+26dBm) + Visual Fault Locator (20mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-131 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-70~+10dBm) + Visual Fault Locator (30mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| OPMM-KT-132 | 3 in 1 Mini Optical Multimeter, Optical Power Meter (-50~+26dBm) + Visual Fault Locator (30mW)+ Network Cable Tester, with 2.5mm Universal Connector, USB Charge |
| Weight | 0.99 kg |
|---|
