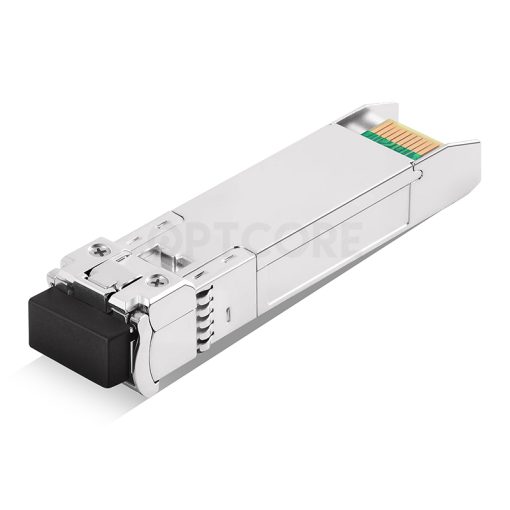

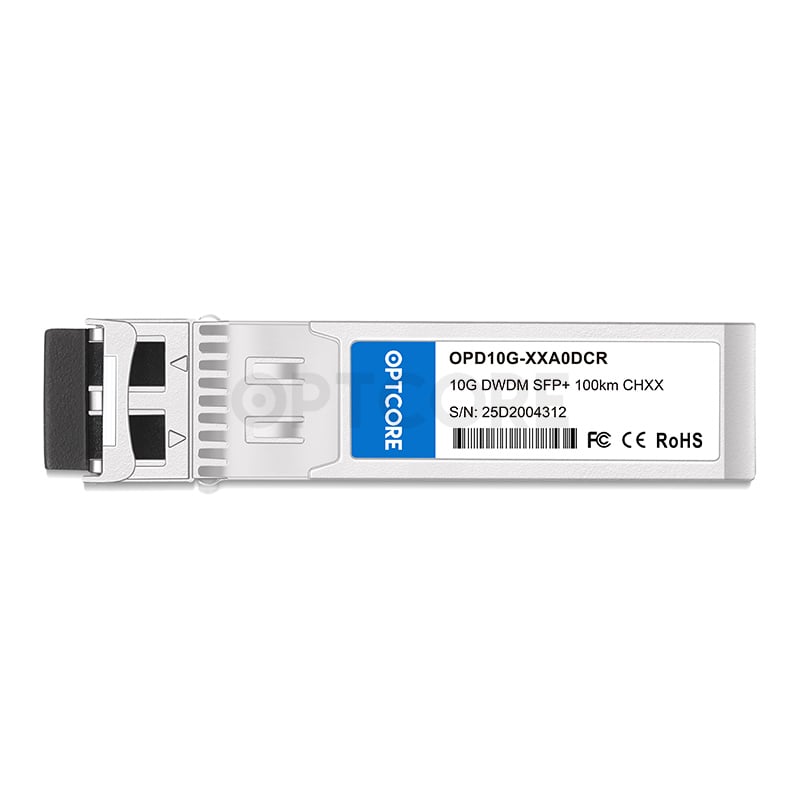

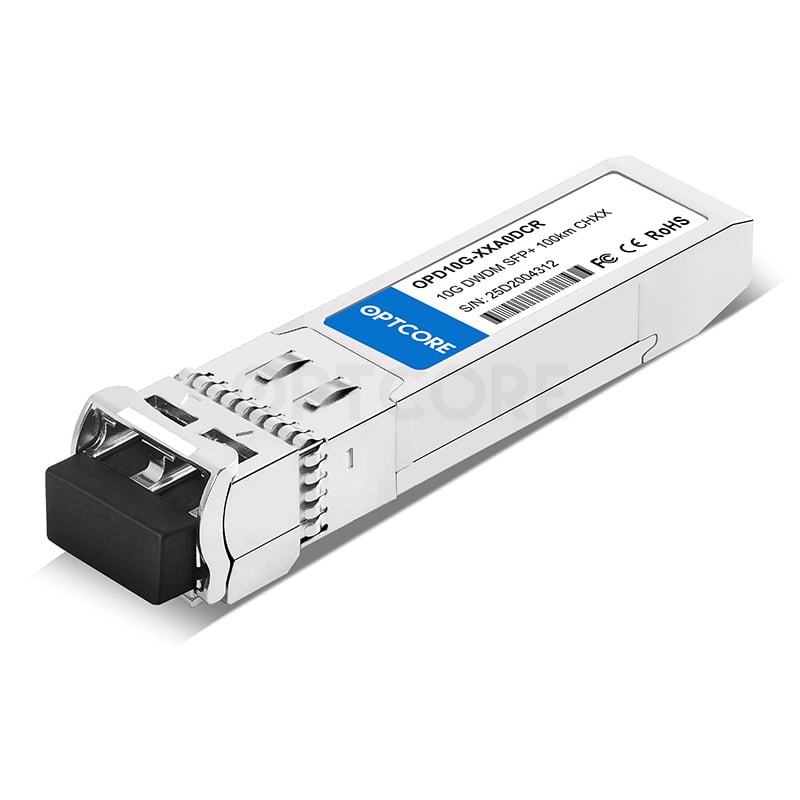

Cisco DWDM-SFP10G-ZR100-xx.xx Compatible 10G DWDM SFP+ 100km Transceiver
US$ 199.00 (Excl. VAT)
OPTCORE 10G DWDM SFP+ EZR Transceiver Module (100GHz, CH17~61, 100km, LC, DOM), Compatible with Cisco DWDM Ethernet Switches, Routers, Servers, Line Card, and other DWDM Systems.
Cisco DWDM-SFP10G-ZR100-xx.xx Compatible 10GBASE-DWDM SFP+ EZR Transceiver Module (100GHz, C17~61, 100km, LC, DOM)
This 10G DWDM SFP+ EZR transceiver provides an ideal replacement to Cisco DWDM-SFP10G-ZR100-xx.xx 10GBASE-DWDM SFP+ 100km module. It is compatible with the Cisco DWDM systems and provides an excellent third-party replacement for the original DWDM SFP+ 100km optics. The DWDM SFP+ transceiver module has been programmed in the factory and tested works flawlessly with the Cisco DWDM network switch, router, and other platforms. This compatible 10G DWDM SFP+ 100km transceiver needs use with DWDM Multiplexer/Demultiplexer (DWDM mux/demux) that Optcore separately sells.
Features
• Functionally similar to Cisco DWDM-SFP10G-ZR100-xx.xx 10G DWDM SFP+ EZR transceiver module
• Support up to 10.5Gb/s data links
• 26dB Power Budget for 100km distance on 9/125µm SMF
• 100GHz channel spacing
• Support Digital optical monitoring function for enhanced diagnostics and troubleshooting
• Use with DWDM MUX/DEMUX, combined DWDM optics solution
• Reduce the cost of leasing or laying fiber
Specification
| Compatible OEM Part Number | DWDM-SFP10G-ZR100-xx.xx | Optcore Part Number | OPD10G-xxA0DCR-CSC |
| Form Factor | DWDM SFP+ | Data Rate | 10Gbps |
| Wavelength | 100GHz 1528.77~1563.86nm (C17~61) | Fiber Type | Single Mode Fiber (SMF) |
| Max Distance | 100 km | Optical Components | DWDM EML/APD |
| Transmitter Power | 1 ~ 5 dBm | Extinction ratio | > 9.0 dB |
| Receiver Sensitivity | < -25 dBm | Receiver Overload | > -7 dBm |

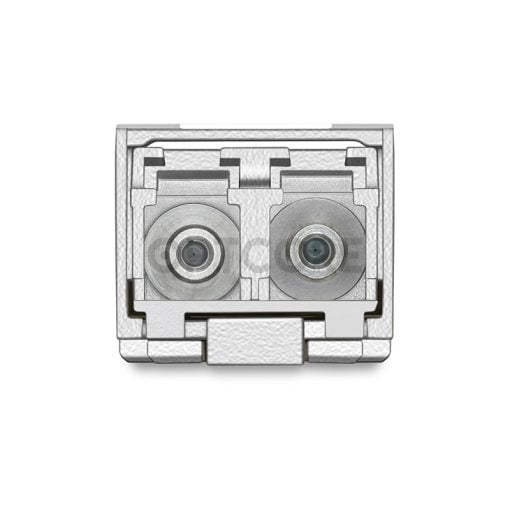

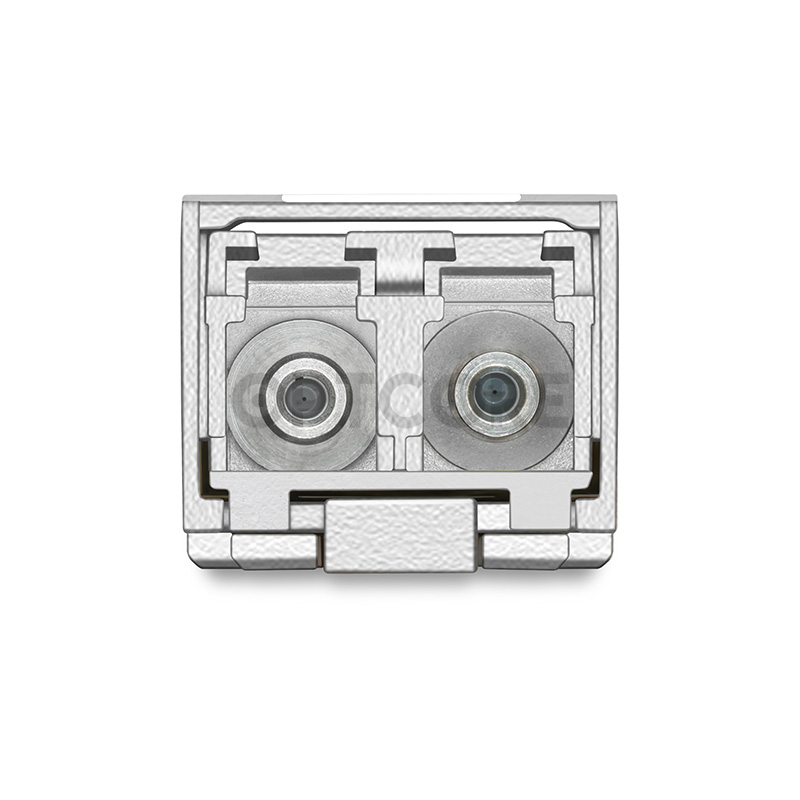

| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-ZR/10GBASE-ZW DWDM Ethernet 10G Fibre Channel 10G Data Center Switches and Routers 10G Network interface cards Other DWDM optical networks |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS, GR-253-CORE |
Notice: When using this 10G SFP+ DWDM EZR 100km transceiver in short-distance transmission, please add a fiber attenuator (≥12dB) to avoid receiver damage and overload.
Compatibility
This 10G DWDM SFP+ EZR transceiver is supported on a wide range of Cisco network equipment.
• Cisco Switches
• Cisco Routers
• Cisco Network Cards
• Cisco Line Cards
• Cisco DWDM networking
Order Information
| OEM Part No | OPTCORE Part No | Description | ITU Ch. | Frequency (THz) |
Wavelength (nm) |
| DWDM-SFP10G-ZR100-63.86 | OPD10G-17A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1563.86nm, 100km, LC, DOM, 0~70°C | 17 | 191.7 | 1563.86 |
| DWDM-SFP10G-ZR100-63.05 | OPD10G-18A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1563.05nm, 100km, LC, DOM, 0~70°C | 18 | 191.8 | 1563.05 |
| DWDM-SFP10G-ZR100-62.23 | OPD10G-19A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1562.23nm, 100km, LC, DOM, 0~70°C | 19 | 191.9 | 1562.23 |
| DWDM-SFP10G-ZR100-61.42 | OPD10G-20A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1561.42nm, 100km, LC, DOM, 0~70°C | 20 | 192.0 | 1561.42 |
| DWDM-SFP10G-ZR100-60.61 | OPD10G-21A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1560.61nm, 100km, LC, DOM, 0~70°C | 21 | 192.1 | 1560.61 |
| DWDM-SFP10G-ZR100-59.79 | OPD10G-22A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1559.79nm, 100km, LC, DOM, 0~70°C | 22 | 192.2 | 1559.79 |
| DWDM-SFP10G-ZR100-58.98 | OPD10G-23A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1558.98nm, 100km, LC, DOM, 0~70°C | 23 | 192.3 | 1558.98 |
| DWDM-SFP10G-ZR100-58.17 | OPD10G-24A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1558.17nm, 100km, LC, DOM, 0~70°C | 24 | 192.4 | 1558.17 |
| DWDM-SFP10G-ZR100-57.36 | OPD10G-25A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1557.36nm, 100km, LC, DOM, 0~70°C | 25 | 192.5 | 1557.36 |
| DWDM-SFP10G-ZR100-56.55 | OPD10G-26A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1556.55nm, 100km, LC, DOM, 0~70°C | 26 | 192.6 | 1556.55 |
| DWDM-SFP10G-ZR100-55.75 | OPD10G-27A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1555.75nm, 100km, LC, DOM, 0~70°C | 27 | 192.7 | 1555.75 |
| DWDM-SFP10G-ZR100-54.94 | OPD10G-28A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1554.94nm, 100km, LC, DOM, 0~70°C | 28 | 192.8 | 1554.94 |
| DWDM-SFP10G-ZR100-54.13 | OPD10G-29A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1554.13nm, 100km, LC, DOM, 0~70°C | 29 | 192.9 | 1554.13 |
| DWDM-SFP10G-ZR100-53.33 | OPD10G-30A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1553.33nm, 100km, LC, DOM, 0~70°C | 30 | 193.0 | 1553.33 |
| DWDM-SFP10G-ZR100-52.52 | OPD10G-31A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1552.52nm, 100km, LC, DOM, 0~70°C | 31 | 193.1 | 1552.52 |
| DWDM-SFP10G-ZR100-51.72 | OPD10G-32A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1551.72nm, 100km, LC, DOM, 0~70°C | 32 | 193.2 | 1551.72 |
| DWDM-SFP10G-ZR100-50.92 | OPD10G-33A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1550.92nm, 100km, LC, DOM, 0~70°C | 33 | 193.3 | 1550.92 |
| DWDM-SFP10G-ZR100-50.12 | OPD10G-34A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1550.12nm, 100km, LC, DOM, 0~70°C | 34 | 193.4 | 1550.12 |
| DWDM-SFP10G-ZR100-49.32 | OPD10G-35A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1549.32nm, 100km, LC, DOM, 0~70°C | 35 | 193.5 | 1549.32 |
| DWDM-SFP10G-ZR100-48.51 | OPD10G-36A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1548.51nm, 100km, LC, DOM, 0~70°C | 36 | 193.6 | 1548.51 |
| DWDM-SFP10G-ZR100-47.72 | OPD10G-37A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1547.72nm, 100km, LC, DOM, 0~70°C | 37 | 193.7 | 1547.72 |
| DWDM-SFP10G-ZR100-46.92 | OPD10G-38A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1546.92nm, 100km, LC, DOM, 0~70°C | 38 | 193.8 | 1546.92 |
| DWDM-SFP10G-ZR100-46.12 | OPD10G-39A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1546.12nm, 100km, LC, DOM, 0~70°C | 39 | 193.9 | 1546.12 |
| DWDM-SFP10G-ZR100-45.32 | OPD10G-40A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1545.32nm, 100km, LC, DOM, 0~70°C | 40 | 194.0 | 1545.32 |
| DWDM-SFP10G-ZR100-44.53 | OPD10G-41A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1544.53nm, 100km, LC, DOM, 0~70°C | 41 | 194.1 | 1544.53 |
| DWDM-SFP10G-ZR100-43.73 | OPD10G-42A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1543.73nm, 100km, LC, DOM, 0~70°C | 42 | 194.2 | 1543.73 |
| DWDM-SFP10G-ZR100-42.94 | OPD10G-43A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1542.94nm, 100km, LC, DOM, 0~70°C | 43 | 194.3 | 1542.94 |
| DWDM-SFP10G-ZR100-42.14 | OPD10G-44A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1542.14nm, 100km, LC, DOM, 0~70°C | 44 | 194.4 | 1542.14 |
| DWDM-SFP10G-ZR100-41.35 | OPD10G-45A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1541.35nm, 100km, LC, DOM, 0~70°C | 45 | 194.5 | 1541.35 |
| DWDM-SFP10G-ZR100-40.56 | OPD10G-46A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1540.56nm, 100km, LC, DOM, 0~70°C | 46 | 194.6 | 1540.56 |
| DWDM-SFP10G-ZR100-39.77 | OPD10G-47A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1539.77nm, 100km, LC, DOM, 0~70°C | 47 | 194.7 | 1539.77 |
| DWDM-SFP10G-ZR100-38.98 | OPD10G-48A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1538.98nm, 100km, LC, DOM, 0~70°C | 48 | 194.8 | 1538.98 |
| DWDM-SFP10G-ZR100-38.19 | OPD10G-49A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1538.19nm, 100km, LC, DOM, 0~70°C | 49 | 194.9 | 1538.19 |
| DWDM-SFP10G-ZR100-37.40 | OPD10G-50A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1537.4nm, 100km, LC, DOM, 0~70°C | 50 | 195.0 | 1537.40 |
| DWDM-SFP10G-ZR100-36.61 | OPD10G-51A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1536.61nm, 100km, LC, DOM, 0~70°C | 51 | 195.1 | 1536.61 |
| DWDM-SFP10G-ZR100-35.82 | OPD10G-52A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1535.82nm, 100km, LC, DOM, 0~70°C | 52 | 195.2 | 1535.82 |
| DWDM-SFP10G-ZR100-35.04 | OPD10G-53A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1535.04nm, 100km, LC, DOM, 0~70°C | 53 | 195.3 | 1535.04 |
| DWDM-SFP10G-ZR100-34.25 | OPD10G-54A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1534.25nm, 100km, LC, DOM, 0~70°C | 54 | 195.4 | 1534.25 |
| DWDM-SFP10G-ZR100-33.47 | OPD10G-55A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1533.47nm, 100km, LC, DOM, 0~70°C | 55 | 195.5 | 1533.47 |
| DWDM-SFP10G-ZR100-32.68 | OPD10G-56A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1532.68nm, 100km, LC, DOM, 0~70°C | 56 | 195.6 | 1532.68 |
| DWDM-SFP10G-ZR100-31.90 | OPD10G-57A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1531.90nm, 100km, LC, DOM, 0~70°C | 57 | 195.7 | 1531.90 |
| DWDM-SFP10G-ZR100-31.12 | OPD10G-58A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1531.12nm, 100km, LC, DOM, 0~70°C | 58 | 195.8 | 1531.12 |
| DWDM-SFP10G-ZR100-30.33 | OPD10G-59A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1530.33nm, 100km, LC, DOM, 0~70°C | 59 | 195.9 | 1530.33 |
| DWDM-SFP10G-ZR100-29.55 | OPD10G-60A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1529.55nm, 100km, LC, DOM, 0~70°C | 60 | 196.0 | 1529.55 |
| DWDM-SFP10G-ZR100-28.77 | OPD10G-61A0DCR | 10GBASE-ZR DWDM SFP+ Transceiver, 1528.77nm, 100km, LC, DOM, 0~70°C | 61 | 196.1 | 1528.77 |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.03 kg |
|---|
