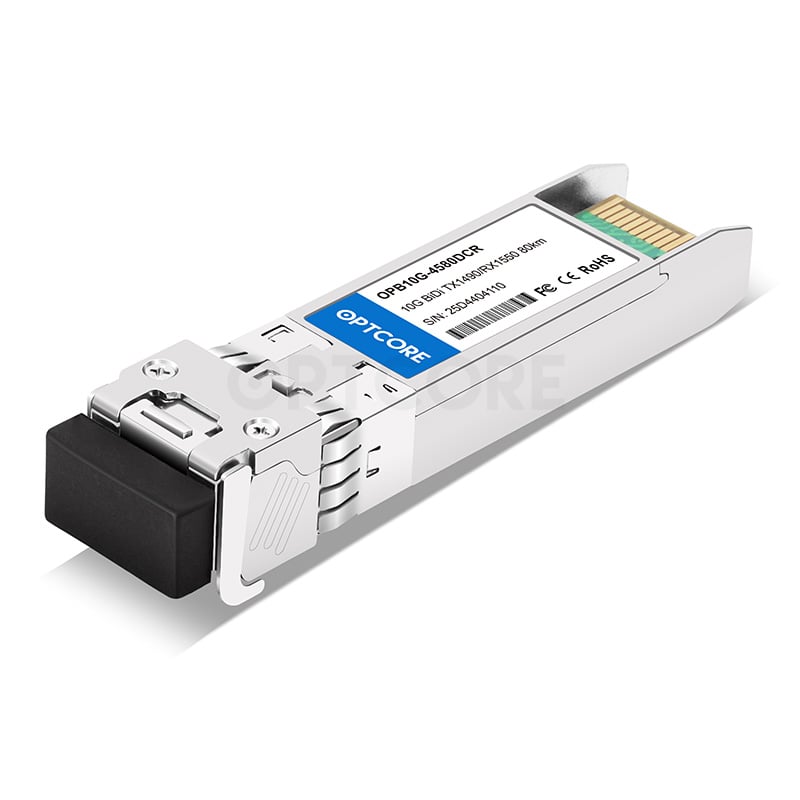

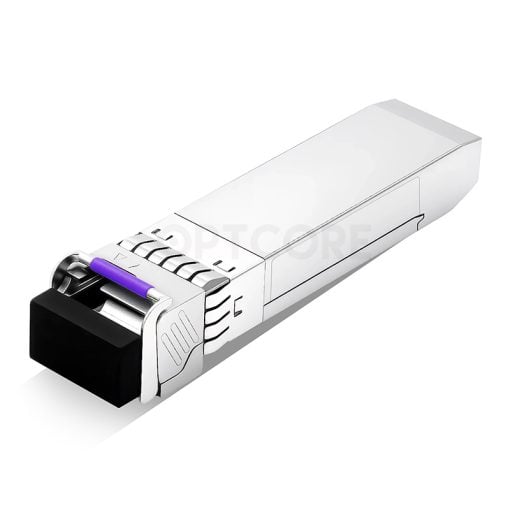

Allied Telesis SP10BD80-14 Compatible 10GBASE-BX80-U SFP+ 1490nm-TX/1550nm-RX 80km Transceiver
US$ 259.00 (Excl. VAT)
Cheap compatible replacement for Allied Telesis SP10BD80-14 10G SFP+ BiDi 80km transceiver, suited for Allied Telesis network switches, routers, firewalls, servers, NAS, media converters, network adapters and interface card (NICs).
This transceiver must be used in pairs with 10GBASE-BX80-D SFP+.
Allied Telesis SP10BD80-14 Compatible 10GBASE-BX80-U SFP+ BiDi Transceiver Module (SMF, 1490nm-TX/1550nm-RX, 80km, LC, DOM)
Optcore provides a high-quality 10GBASE-BX80-U SFP+ BiDi transceiver module replacement compatible with Allied Telesis SP10BD80-14. Rather than paying expensive charges for genuine Allied Telesis SP10BD80-14, this compatible SFP+ BiDi transceiver allows you to reduce total fiber cabling costs. It has been programmed and tested to work with the original Allied Telesis SP10BD80-14 10GBASE-BX80-U SFP+ optics. This transceiver provides 10G bi-directional communication up to an 80km link over single-mode fiber (SMF). This compatible SP10BD80-14 works with Allied Telesis 10G network switches, routers, firewalls, security gateways, media converters, NAS, servers, network adapters, and interface cards (NICs). It offers a low-cost solution for fiber connectivity in large data centers, enterprise wiring closets, large campuses, Metro Area Networks, Remote Radio (RRU), and Baseband Units (BBU).
Features
• Cheap compatible replacements for Allied Telesis SP10BD80-14 10GBASE-BX80-U SFP+ transceiver
• Proven and tested to work like Allied Telesis SP10BD80-14 10GBASE-BX80-U SFP+ transceiver
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae
• Distance up to 80km on single-mode fiber
• RoHS compliant and lead-free
Specification
| OEM Part Number | SP10BD80-14 | Optcore Part Number | OPB10G-4580DCR-ATI |
| Form Factor | SFP+ BiDi | Data Rate | 10Gb/s |
| Wavelength | 1490nm-TX/1550nm-RX | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | EML/APD |
| Transmitter Power | 0 ~ 5.0 dBm | Extinction ratio | > 7.5 dB |
| Receiver Sensitivity | < -23.0 dBm | Receiver Overload | > -7.0 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-ZR/10GBASE-ZW Ethernet 10G Fiber Channel 10G Data Center Switches and Routers 10G Network interface cards 10G Media Converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Notice: When using this SFP+ BiDi ZR transceiver in short-distance transmission, please add a fiber attenuator (≥12dB) to avoid receiver damage and overload.
Compatible Platform
• Allied Telesis network switches
• Allied Telesis network routers
• Allied Telesis firewalls
• Allied Telesis security gateway
• Allied Telesis fiber media converter
• Allied Telesis network adapters
• Allied Telesis network interface card (NICs)
• Allied Telesis NAS
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Allied Telesis.
| Weight | 0.03 kg |
|---|
