Nokia Alcatel-Lucent 3HE04823AA-W23 Compatible 10GBASE-BX10-U SFP+ 1270nm-TX/1330nm-RX 10km Transceiver
US$ 18.00 (Excl. VAT)
Cheap compatible replacement for Nokia Alcatel-Lucent 3HE04823AA-W23 10G SFP+ BiDi transceiver, suitable for Nokia Alcatel-Lucent network switches, routers, firewalls, servers, NAS, media converters, network adapters and interface card (NICs).

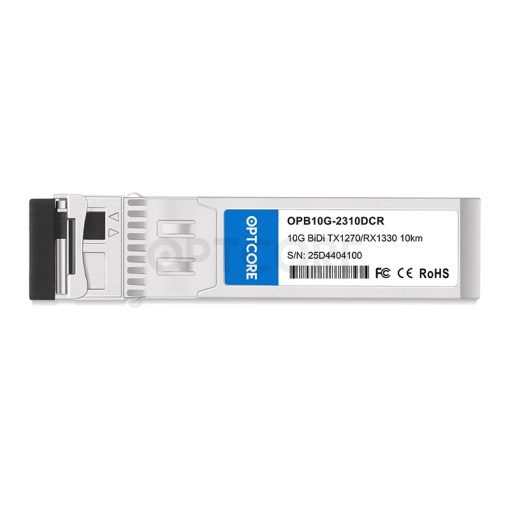

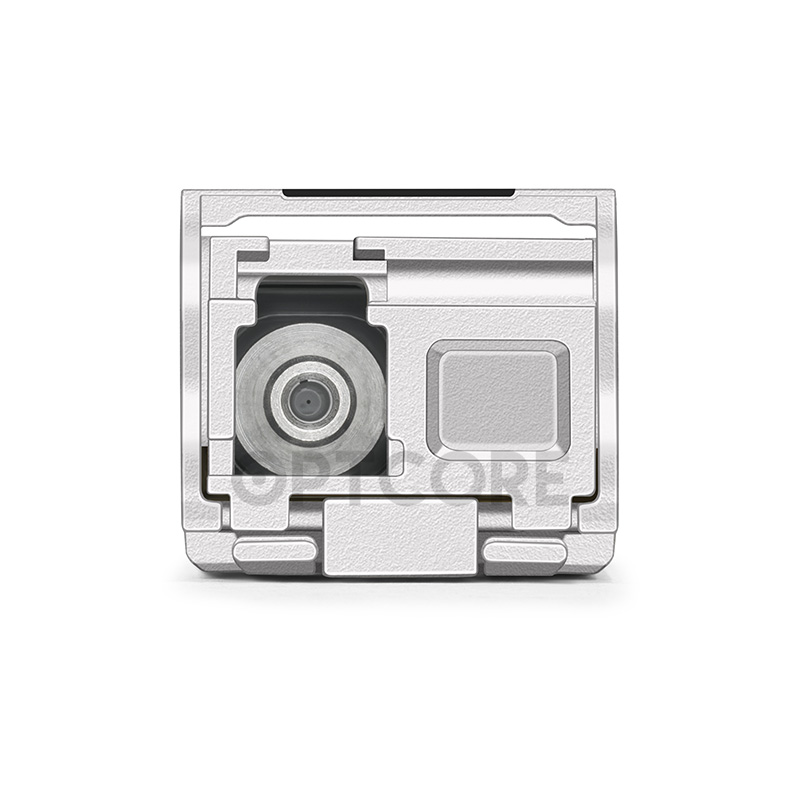

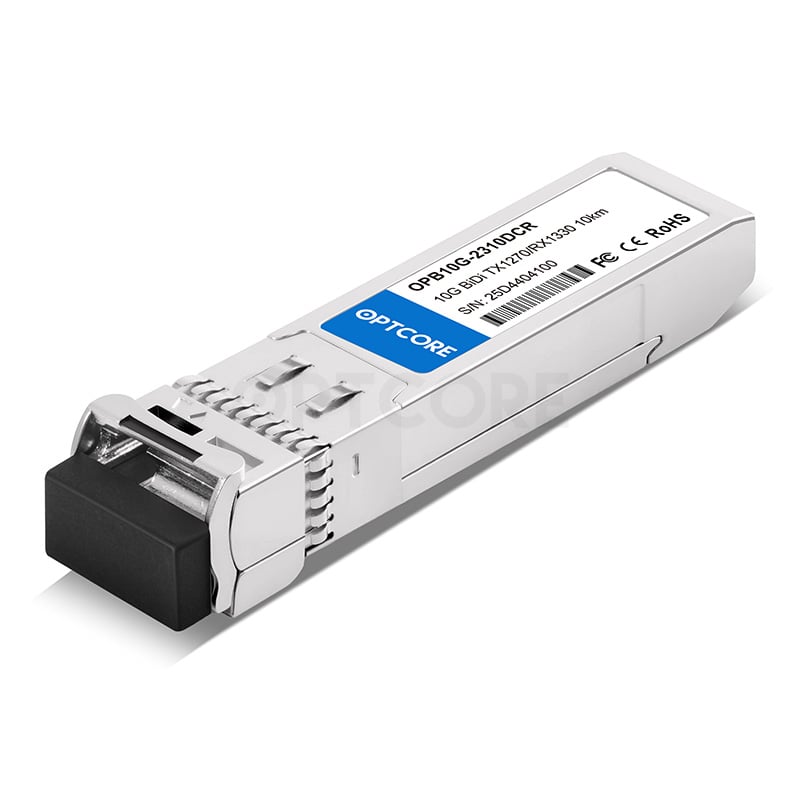

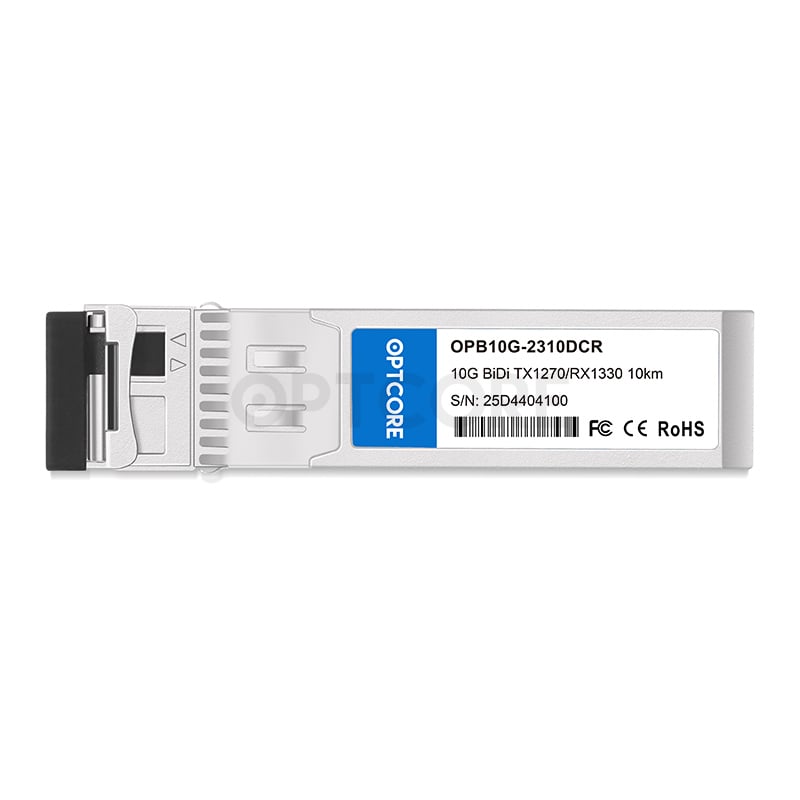

Nokia Alcatel-Lucent 3HE04823AA-W23 Compatible 10GBASE-BX10-U SFP+ BiDi Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)
Optcore offers 10GBASE-BX10-U SFP+ BiDi transceiver module replacement for Nokia Alcatel-Lucent 3HE04823AA-W23 without lowering the quality of your fiber network connectivity. This compatible SFP+ BiDi transceiver has been programmed and tested to work as the OEM Nokia Alcatel-Lucent 3HE04823AA-W23 10GBASE-BX10-U SFP+ optics but at a very affordable price. This transceiver supports 10G BiDirectional connectivity up to 10km link over single-mode fiber (SMF). It is suitable for Nokia Alcatel-Lucent 10G network switches, routers, firewalls, security gateway, media converters, NAS, servers, network adapters and interface cards (NICs). This compatible SFP+ transceiver provides a low-priced third-party excellent alternative solution for fiber connectivity in the large data centers, enterprise wiring closets, large campuses, Metro Area Networks, Remote Radio (RRU), and Baseband Unit (BBU).
Features
• Cheap compatible replacements for Nokia Alcatel-Lucent 3HE04823AA-W23 10GBASE-BX10-U SFP+ transceiver
• Proven and tested to work like Nokia Alcatel-Lucent 3HE04823AA-W23 10GBASE-BX10-U SFP+ transceiver
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae
• Distance up to 10km on single-mode fiber
• RoHS compliant and lead-free
Specification
| OEM Part Number | 3HE04823AA-W23 | Optcore Part Number | OPB10G-2310DCR-ALU |
| Form Factor | SFP+ BiDi | Data Rate | 10Gb/s |
| Wavelength | 1270nm-TX/1330nm-RX | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-BX10 WDM Ethernet 10G Fiber Channel 10G Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatible Platform
• Nokia Alcatel-Lucent network switches
• Nokia Alcatel-Lucent network routers
• Nokia Alcatel-Lucent firewalls
• Nokia Alcatel-Lucent security gateway
• Nokia Alcatel-Lucent fiber media converter
• Nokia Alcatel-Lucent network adapters
• Nokia Alcatel-Lucent network interface card (NICs)
• Nokia Alcatel-Lucent NAS
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Nokia Alcatel-Lucent.
| Weight | 0.03 kg |
|---|
