Cisco ONS-SE-2G-S1 Compatible 2.5G SFP 1310nm 2km Transceiver
US$ 19.00 (Excl. VAT)

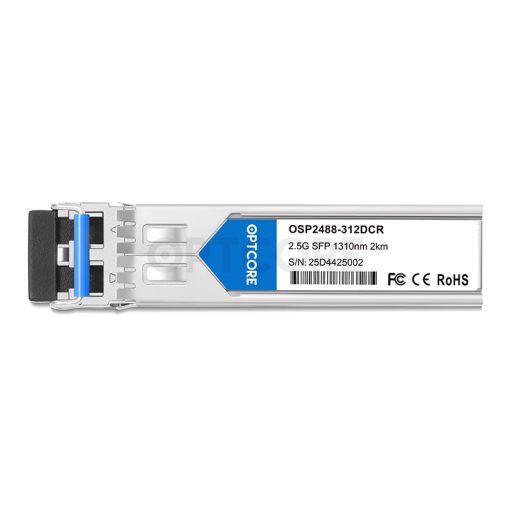

Cisco ONS-SE-2G-S1 Compatible 2.5G OC48/STM-16 SFP Module (Single mode, 1310nm, 2km, LC, DDM)
This Cisco ONS-SE-2G-S1 compatible SFP module is suitable for 2.5Gb/s serial optical data communications short-reach applications, such as SDH STM-16 I-16/SONET OC-48 SR-1/2x Fibre Channel. It provides a 2km transmission distance over single-mode fiber at a nominal wavelength of 1310nm. It has been programmed and tested to work with a wide range of Cisco switches and routers. It performs identically to Cisco part number ONS-SE-2G-S1, allowing it to be an ideally equivalent to original transceivers.
Features
• Functionally identical to Cisco ONS-SE-2G-S1
• Up to 2.5Gb/s data links
• 1310nm FP laser transmitter and InGaAs PIN receiver
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring Interface
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Compatible OEM Part Number | ONS-SE-2G-S1 | Optcore Part Number | OSP2488-312DCR-CSC |
| Form Factor | SFP (Mini-GBIC) | Data Rate | 2.5 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 2 km | Optical Components | FP/PIN |
| Transmitter Power | -9～-3 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > -3 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | SDH STM-16 switches and routers SONET OC-48 switches and routers 2x Fibre Channel Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Cisco.
| Weight | 0.03 kg |
|---|
