12G-SDI BiDi SFP+ Video 1270nm-TX/1330nm-RX 10km Transceiver for SD/HD/3G/6G/12G-SDI
US$ 209.00 (Excl. VAT)
- Supports multi-rate video pathological patterns for SD/HD/3G/6G/12G-SDI
- Bidirectional links over a single fiber allow huge savings of valuable fiber
- Hot Pluggable SFP+ MSA-compliant
- Compliant with SMPTE 2082, SMPTE 2081, SMPTE 424M, SMPTE 292M
- Built-in Digital Optical Monitoring functions for real-time monitor
Product Model:
OHPB12G-2310DCR OHPB12G-3210DCR OHPB12G-2340DCR OHPB12G-3240DCR
Available on backorder

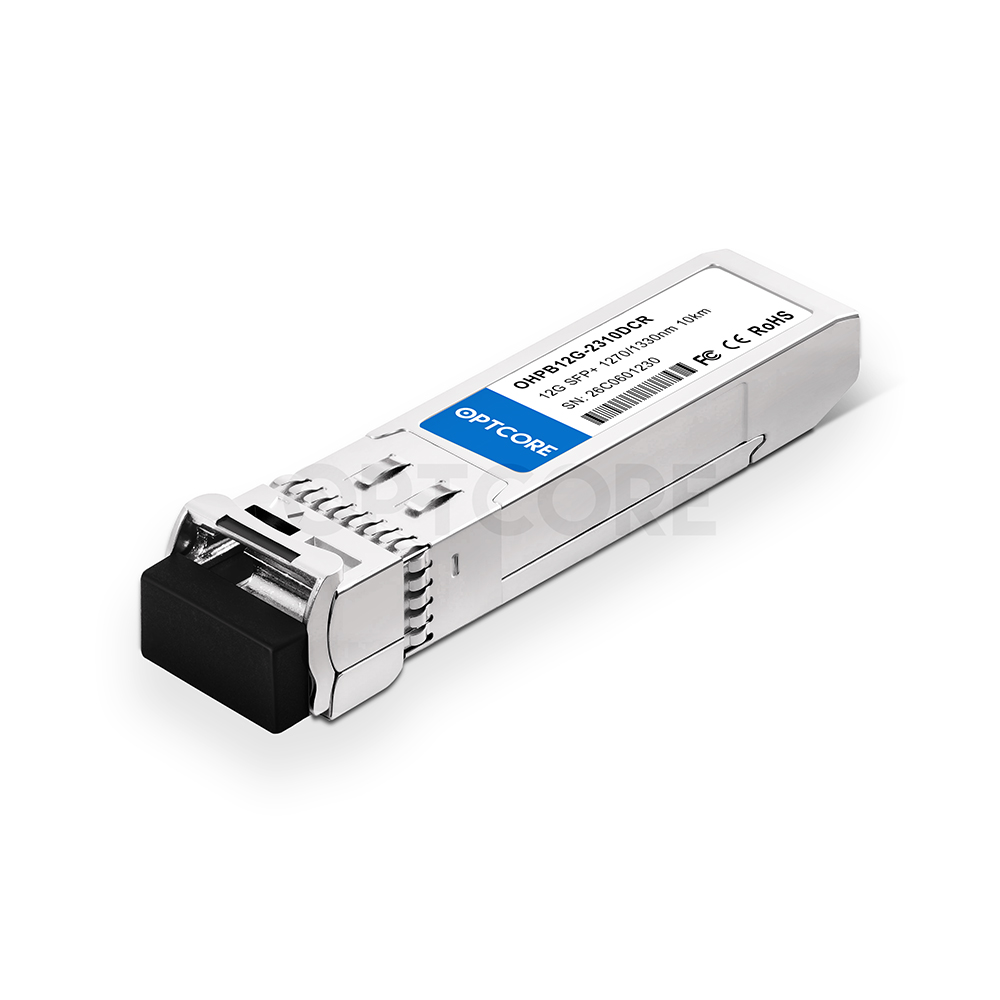

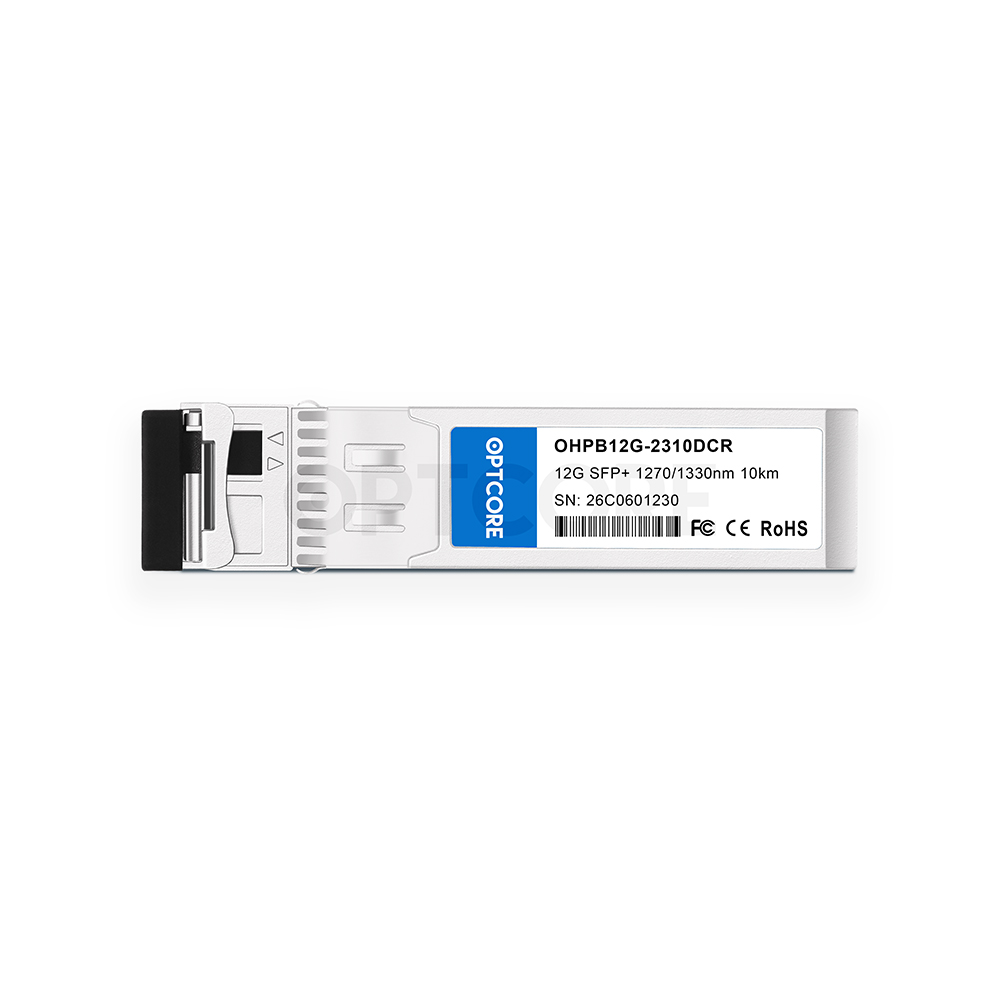

12G BiDi SFP+ Video Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)
The 12G BiDi SFP+ optical transceiver module is specially designed for broadcast video transmission applications over single-mode fiber (SMF). It supports data rates from 270Mbps to 11.88Gbps per 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI standards. This transceiver is ideal for pathological signal pattern transmission. Unlike regular video transceivers, this 12G BiDi SFP+ transmits an optical SDI signal and receives an optical SDI signal over a single fiber link. By doing so, the network operator can double the transmission capacity without deploying new fiber. Please note that these 12G bidirectional SFP+ must be paired with another transceiver or network appliance that operates on complementary wavelengths.
Proven Performance
When performance and reliability are vital, use our SFP transceiver to build your network. OPTCORE modules are engineered, produced, and tested in-factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. OPTCORE SFP transceivers are tested in multi-switch devices for compatibility to ensure flawless functioning.
Enjoy Massive Saving
Compared to the original optics, the OPTCORE SFP transceiver can save you up to 80% on project and networking cabling. You won't find a better combination of quality and affordability.Specification
| Product Series | 12G-SDI SFP+ | Manufacturer | OPTCORE |
| Manufacturer Part# | OHPB12G-2310DCR | Form Factor | SFP+ |
| Data Rate | 12 Gbps | Wavelength | 1270nm-TX/1330nm-RX |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -5.0 ~ +1.0 dBm | Receiver Sensitivity | < -11.0 dBm |
| Extinction Ratio | > 3.5 dB | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Max Power Consumption | 1.3 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH SFP+ MSA, SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Environment | Operating Temperature: 0~70 °C Storage Temperature: -40~85 °C Operating Humidity: 5%~85% Storage Humidity: 5%~95% |
Application | SMPTE ST-297-2015, ST2081 & ST-2082 UHDTV/HDTV/SDTV Service Interfaces High-density Video Routers |
| Shipping Weight | 0.03 kg | Dimensions (L x W x H) | 56.5 x 13.9 x 8.5 mm |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by them.
| Weight | 0.035 kg |
|---|
