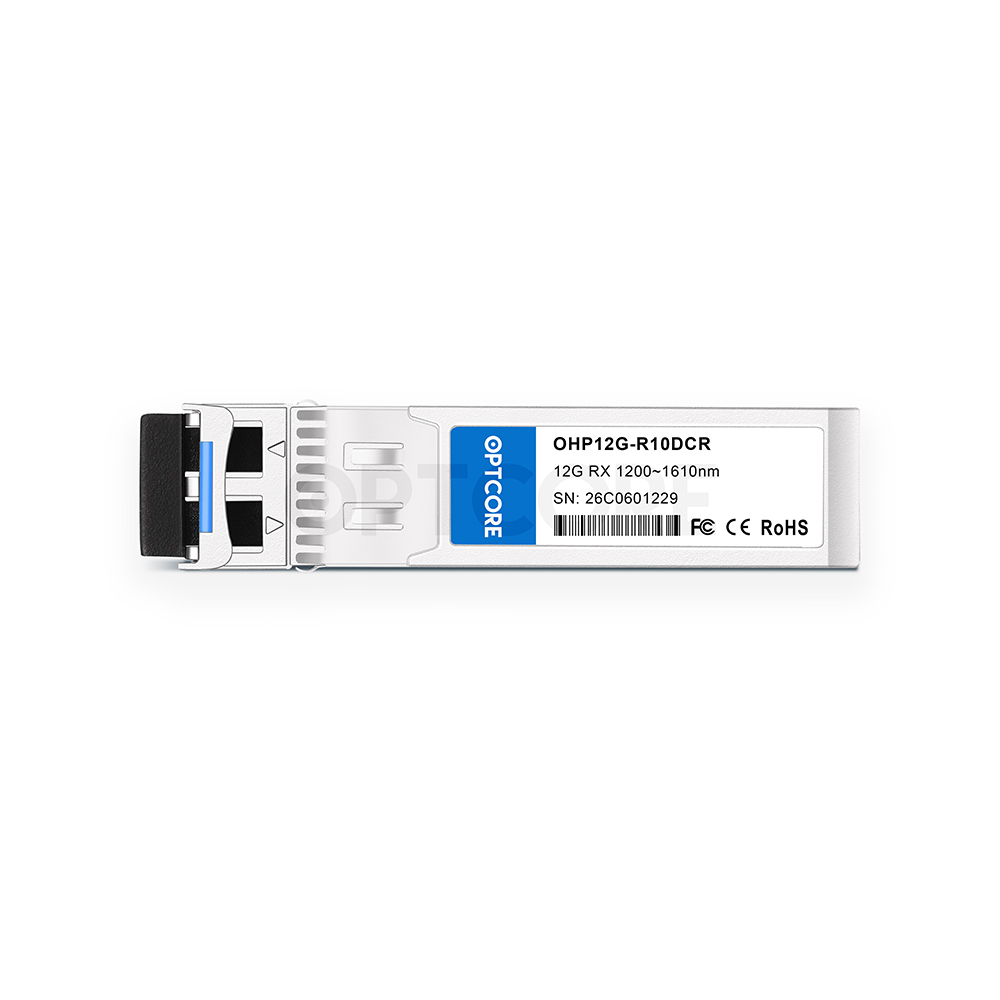

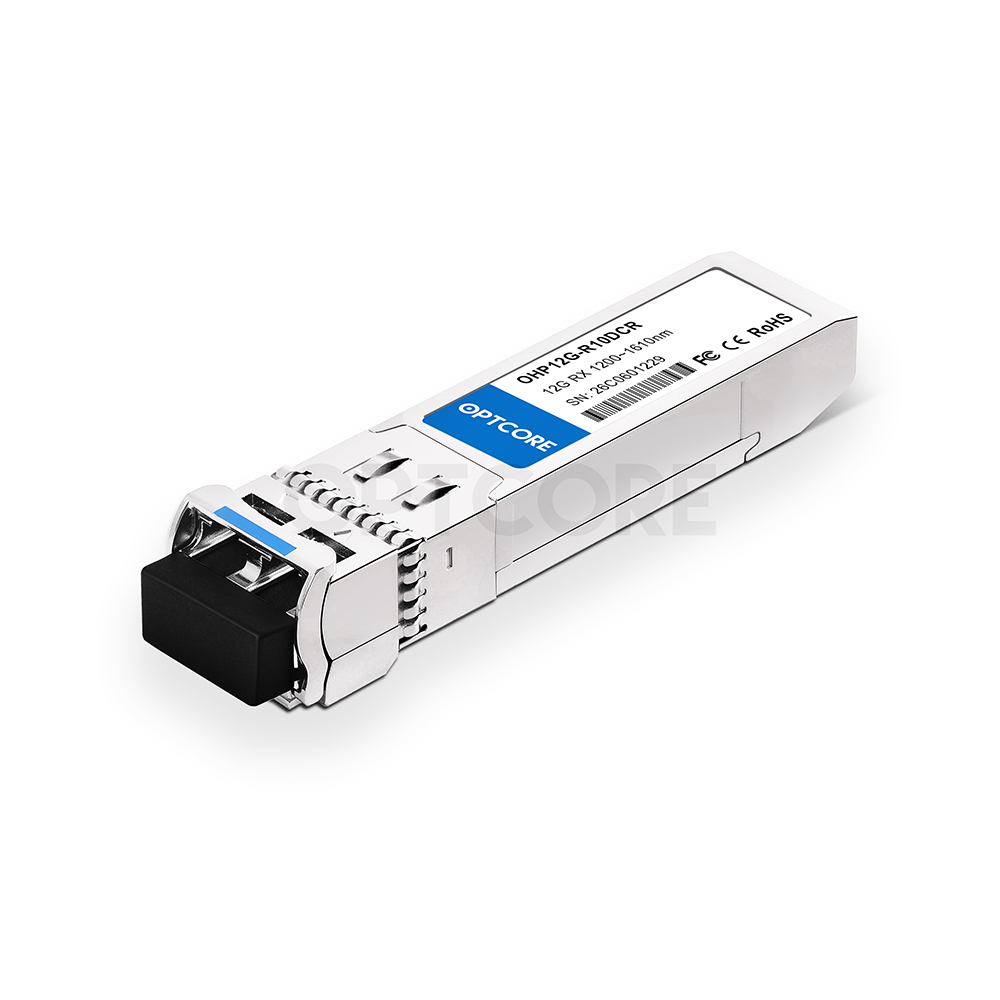

12G-SDI Video SFP 1310nm 10km Single Optical Receiver Module
US$ 165.00 (Excl. VAT)
12G-SDI Video SFP Single Receiver (SMF, 1260~1610nm, 10km, LC, DOM, MSA) supports 12G/6G/3G/HD/SD-SDI video pathological patterns.
Available on backorder
12G-SDI UHD Video SFP Fiber Optical Single Receiver Module for 12G/6G/3G/HD/SD-SDI (SMF, 1260~1610nm, 10km, LC, DOM, MSA)
Optcore’s OHP12G-R10DCR is a small form-factor pluggable 12G-SDI optical single transmitter module, which is specially designed for broadcast video transmission applications over single-mode fiber cable (SMF). It supports the data rates from 270Mbps to 11.88Gbps, which is ideal for the application of 12G-SDI UHD video, 6G-SDI ultra-high-definition digital video, 2.97G 3G-SDI super high definition digital video, 1.485G HD-SDI high-definition digital video, and 270Mbps SDI standard definition digital video. The 12G-SDI video SFP Receiver is specifically designed to support pathological test patterns of 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI. The 12G-SDI Receiver is compatible with optical fiber equipment that utilizes SFP slots such as the Blackmagic Mini Converter, Blackmagic Studio Camera 4K, Teranex Converter, ATEM Talkback Converter 4K, ATEM Studio Converter, ShieldRock optical-fiber extenders, and more.
Features
• 12G-SDI Video SFP Single channel multi-rate optical receiver (backward capable)
• SMPTE ST-292, ST-297, ST2081 and ST-2082 Compatible
• Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI video pathological formats
• Operating data rate up to 11.88Gbps
• Distance up to 10km in 4K UHD
• Single channel receiver with LC connector Interface
• Hot Pluggable SFP+
• Compliant with SFP+ MSA Specification
• Operating case temperature: 0 to +70°C
• RoHS-6 compliant and Lead-Free
General Specification
| Product Series | Fiber Optical Transceiver | Part Number | OHP12G-R10DCR |
| Form Factor | Video SFP Receiver | Data Rate | 11.88 Gb/s |
| Wavelength | 1260~1610 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | PIN |
| Transmitter Power | NA | Extinction ratio | NA |
| Receiver Sensitivity | < -14 dBm | Receiver Overload | > 0.5 dBm |
| Connector | Single LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | SMPTE ST-297-2015, ST2081 and ST-2082 Compatible Electrical-to-Optical Interfaces. UHDTV/HDTV/SDTV Service Interfaces High-density Video Routers |
Standards Reference | INF-8074i SFP (Small Form-factor Pluggable) Transceiver SFF-8472 Diagnostic Monitoring Interface for Transceiver SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
