Alcatel-Lucent OC12-SFP-SR Compatible 622Mb/s SFP 850nm 550m Transceiver

Alcatel-Lucent OC12-SFP-SR Compatible 622Mb/s MMF 850nm 550m DDM SFP Transceiver

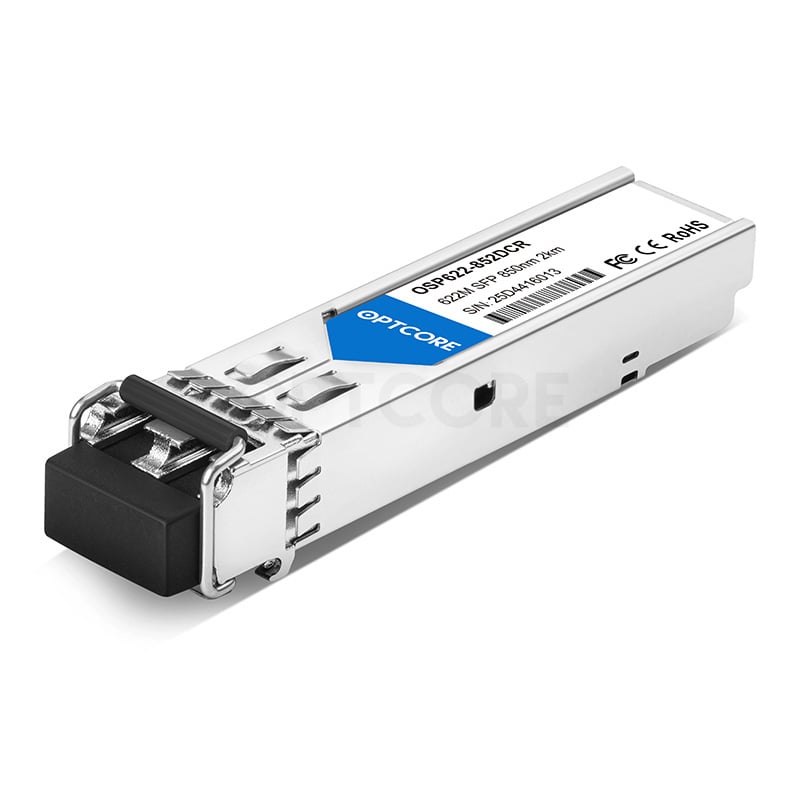

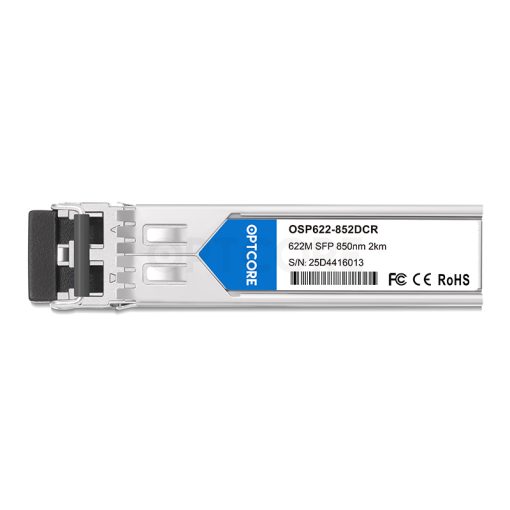

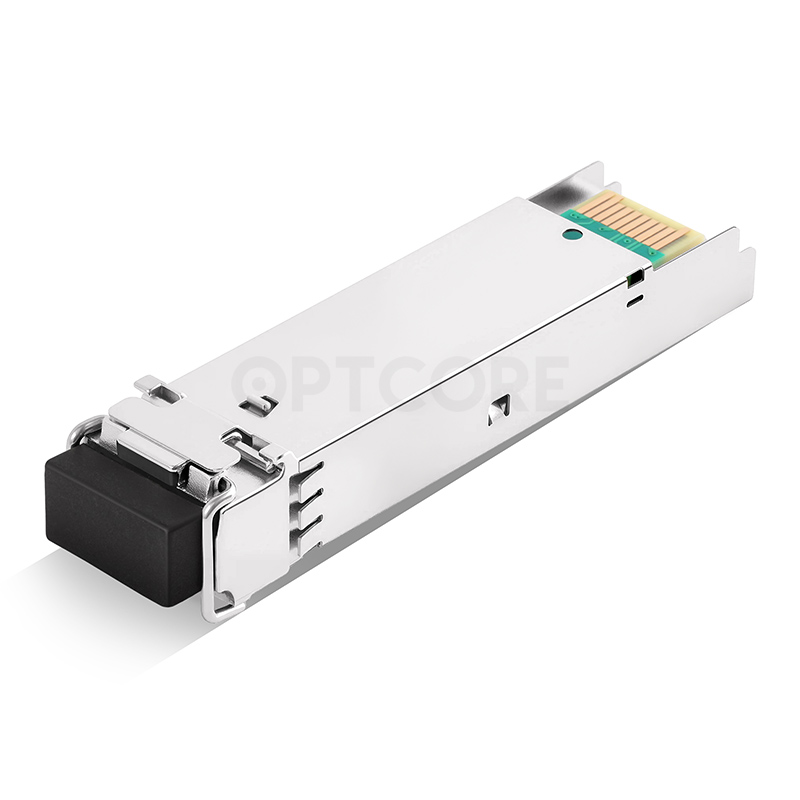

Optcore’s OSP622-8505DCR-ALU is a high-performance small form factor pluggable (SFP) transceiver for 622Mbps SONET OC-12 and SDH STM-4 short reach application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment. The 622Mbps SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 850nm VCSEL laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

The OSP622-8505DCR-ALU SFP transceiver is tested to be compatible with Alcatel-Lucent networking equipment for SONET/SDH (POS), optical networking and ATM applications. It is an ideal equivalent to Alcatel-Lucent OC12-SFP-SR OC-12/STM-4 Multi-mode Short Reach (SR-1) SFP optics module but with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.

Features

• Hot-pluggable SFP footprint
• Support Up to 622Mb/s data links
• Compliant with SFP MSA standard
• 850nm VCSEL laser transmitter and InGaAs PIN receiver
• Up to 550m on 50/125µm MMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free

Specification

Download

 OSP622-8505xxR 622Mb/s MMF 850nm 550m SFP Transceiver Module Data Sheet

Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Alcatel-Lucent.
