Netgear AGM721T Compatible 1000BASE-T Copper 100m RJ45 GBIC Module
US$ 25.00 (Excl. VAT)
Good quality Netgear AGM721T compatible 1000BASE-T GBIC Module (Copper, 100m, RJ45).
Available on backorder
Netgear AGM721T Compatible 1000BASE-T Copper 100m RJ45 GBIC Module

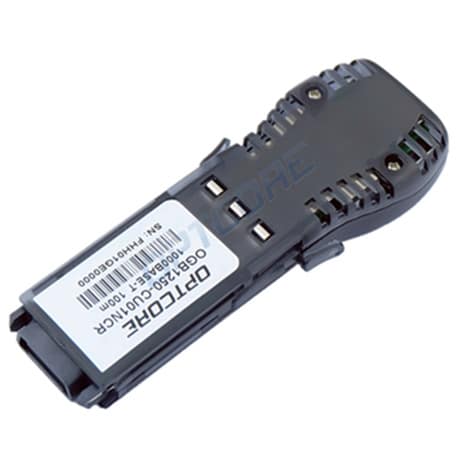

Optcore’s OGB1250-CU01NCR-NTG is a high performance and cost-effective Gigabit Interface Converter (GBIC) module for 1000BASE-T Gigabit Ethernet and 1G Fiber Channel application. It fully complies with the GBIC Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.
The 1000BASE-T GBIC module is tested to be compatible with Netgear networking equipment with GBIC slots such as Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs). The OGB1250-CU01NCR-NTG is an ideal equivalent to Netgear AGM721T 1000BASE-T Copper GBIC transceiver module but with much lower price, which provides a reliable compatible GBIC transceiver optics solution for system integrator, distributors and end users in network infrastructure and fiber cabling. The 1000BASE-T GBIC module supports 1000Mbps data rate up to 100 meters reach over unshielded twisted-pair category 5 cables.
Features
• Hot-pluggable GBIC footprint
• Fully metallic enclosure for low EMI
• Low power dissipation (1.05 W typical)
• The compact RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• Metal enclosure provides lower EMI
• 1000 BASE-T operation in host systems with SERDES interface
• ROHS compliant and Lead-Free
Specification
| OEM Part Number | AGM721T | Optcore Part Number | OGB1250-CU01NCR-NTG |
| Form Factor | GBIC | Data Rate | 1000Mb/s |
| Wavelength | N/A | Cable Type | Cat 5 cable |
| Max Distance | 100 m | Optical Components | N/A |
| Transmitter Power | N/A | Extinction ratio | N/A |
| Receiver Sensitivity | N/A | Receiver Overload | N/A |
| Connector | 1 – RJ-45 Female | Digital Diagnostic Monitoring | No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface,Media Converters |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• Netgear M6100 Series – (XCM8944F)
• Netgear M7100 – 24X Managed Switch – (XSM7224-v1h1)
• Netgear M7300 10-Gigabit Fiber Stackable L2+ Managed Switch (M7300 XSM7224S)
• Netgear ProSafe 12 Port Gigabit Managed Switch – GSM7212
• Netgear ProSafe 12-Port 10 Gigabit Smart Switch – XS712T-100NES
• Netgear ProSafe 12-Port Layer 3 Managed Gigabit Switch – GSM7312
• Netgear ProSafe 16-port Gigabit Smart Switch – GS716T
• Netgear ProSafe 24 Port 10/100 Smart Switch 2 Gigabit Ports – FS726T
• Netgear ProSafe 24 Port 10/100 Smart Switch 2 Gigabit Ports and 12 Port PoE – FS726TP
• Netgear ProSafe 24 SFP Gigabit L3 Managed Stackable Switch – GSM7328FS
• Netgear ProSafe 24-Port Feature Rich Gigabit Ethernet L2 Managed Switch – GSM7224R
• Netgear ProSafe 24-port Gigabit Rackmount Switch with 2 SFP Slots – JGS524F
• Netgear ProSafe 24-port Gigabit Smart Switch – GS724T
• Netgear ProSafe 24-port Gigabit Smart Switch – GS728TP-100NAS
• Netgear ProSafe 24-port Gigabit Smart Switch 10/100 Smart Switch with + 4 Gigabit Ports – FS728TP
• Netgear ProSafe 24-port Gigabit Smart Switch 10/100 Smart Switch with 4 Gigabit Ports and 24 PoE Ports – FS724TP
• Netgear ProSafe 24-port Gigabit Smart Switch 10/100/1000 Smart PoE Switch – GS724TP
• Netgear ProSafe 24-port Gigabit Smart Switch with Advanced Features – GS748AT
• Netgear ProSafe 24-port Gigabit Smart Switches with Advanced Features – GS724AT
• Netgear ProSafe 24-port Gigabit Smart Switches with Static Routing – GS724TR
• Netgear ProSafe 24-port Gigabit Stackable Smart Switch – GS724TS
• Netgear ProSafe 24-Port Layer 3 Managed Gigabit Switch – GSM7324
• Netgear ProSafe 24-Port Layer L3 Managed Stackable Switch – GSM7328S
• Netgear ProSafe 48 Port 10/100 Smart Switch + 2 Gigabit Ports – FS750T2
• Netgear ProSafe 48 Port 10/100 Stackable Smart Switch with + 4 Gigabit Ports – FS752TS
• Netgear ProSafe 48 Port 10/100 Stackable Smart Switch with 4 Gigabit Ports and 24 Port PoE – FS752TPS
• Netgear ProSafe 48-Port 10/100 L3 Managed Stackable Switch with 4 Gigabit Ports – FSM7352S
• Netgear ProSafe 48-Port Feature Rich Gigabit Ethernet L2 Managed Switch – GSM7248R
• Netgear ProSafe 48-Port Gigabit L3 Managed Stackable Switch – GSM7352S
• Netgear ProSafe 48-Port Gigabit Smart Switch – GS748T
• Netgear ProSafe 48-port Gigabit Smart Switch 10/100/1000 Smart PoE Switch – GS748TP
• Netgear ProSafe 48-port Gigabit Smart Switches with Static Routing – GS748TR
• Netgear ProSafe 48-port Gigabit Stackable Smart Switch – GS748TS
• Netgear PROSAFE 52-PORT GIGABIT STACKABLE SMART SWITCH – GS752TP
• Netgear PROSAFE 52-PORT GIGABIT STACKABLE SMART SWITCH – GS752TXS
• Netgear ProSafe 8-port Gigabit Smart Switch 10/100/1000 Smart PoE Switch – GS110TP
• Netgear ProSafe Entry Level 24-Port 10/100/1000 Mbps L2 Managed Switch – GSM7224
• Netgear ProSafe Entry Level 48-Port 10/100/1000 Mbps L2 Managed Switch – GSM7248
• Netgear ProSafe JGS524 Switch – (JGS524NA)
• Netgear ProSafe M5300-28G – GSM7228S
• Netgear ProSafe M5300-28G3 – GSM7328S
• Netgear ProSafe M5300-28GF3 – GSM7328FS
• Netgear ProSafe M5300-28G-POE+ – GSM7228PS
• Netgear ProSafe M5300-52G – GSM7252S
• Netgear ProSafe M5300-52G3 – GSM7352S
• Netgear ProSafe M5300-52G-POE+ – GSM7252PS
• Netgear ProSafe Plus XS708E 8-Port 10 Gigabit Switch – XS708E-100NES
• Netgear Prosafe XS7 12T
• Netgear Prostate M4100-D10 POE – FSM5210P
• Netgear ProSafe M5300-52G3 – GSM7352S
• Netgear ProSafe M5300-52G-POE+ – GSM7252PS
• Netgear ProSafe Plus XS708E 8-Port 10 Gigabit Switch – XS708E-100NES
• Netgear Prosafe XS7 12T
• Netgear Prostate M4100-D10 POE – FSM5210P
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Netgear.
