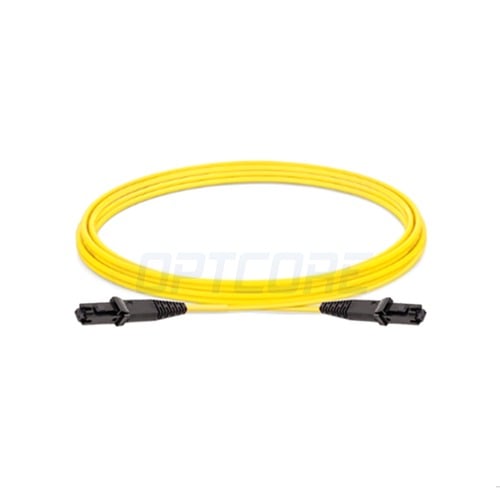

MTRJ-MTRJ UPC Singlemode 9/125µm OS2 LSZH Duplex Fiber Patch Cable
Price range: US$ 10.80 through US$ 35.50 (Excl. VAT)
Each MTRJ-MTRJ Singlemode 9/125µm OS2 Duplex Fiber Patch Cable (UPC Polish, 2.0mm, LSZH, Yellow) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to comply and exceeds industry standards.
Customized Patch CableMTRJ to MTRJ Singlemode 9/125µm OS2 Duplex Fiber Patch Cable (Customized Length, UPC Polish, 2.0mm, LSZH, Yellow)
Fiber optic patch cable is also known as fiber patch cord, optical cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of MTRJ/UPC to MTRJ/UPC 9/125µm OS2 Singlemode duplex fiber patch cables with many choices of different lengths, jacket material, and cable diameter. This fiber patch cable is made with G657.A2 bend-sensitive fibers and high-quality MTRJ connectors.
The MTRJ connectors utilize standard UPC (Ultra Physical Contact) single-mode connectors. These MTRJ-MTRJ Singlemode fiber optic patch cables are suitable for carrier equipment, telecommunications, patch field, and CATV applications. Each MTRJ-MTRJ fiber patch cable is manufactured using high-quality material and is strictly tested for insertion and return loss to ensure superior performance and quality, ideal for fiber cabling infrastructure.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• LSZH jacket as default
• Ideal solution for high-speed data transmission
• UPC polish ensures higher return loss
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 (G.657.A2, Compatible with G.652D) | Fiber Count | Duplex (2-fiber) |
| Connector Type | MTRJ to MTRJ | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| MTRJ-MTRJ-SM-D1M-20-LS | 1M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D2M-20-LS | 2M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D3M-20-LS | 3M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D4M-20-LS | 4M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D5M-20-LS | 5M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D6M-20-LS | 6M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D7M-20-LS | 7M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D8M-20-LS | 8M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D9M-20-LS | 9M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D10M-20-LS | 10M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D15M-20-LS | 15M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D20M-20-LS | 20M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D30M-20-LS | 30M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-D50M-20-LS | 50M MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| MTRJ-MTRJ-SM-DxM-20-LS | Custom Length xM MTRJ to MTRJ UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
