50/125 Multimode OM4 MTP Elite Trunk Cable, 12 Fiber, Female, Type B, LSZH
Price range: US$ 37.00 through US$ 124.00 (Excl. VAT)
40Gb 50/125 OM4 MTP Fiber Trunk Cable (OM4, 12 Fiber, Elite, Female, Polarity B, LSZH).

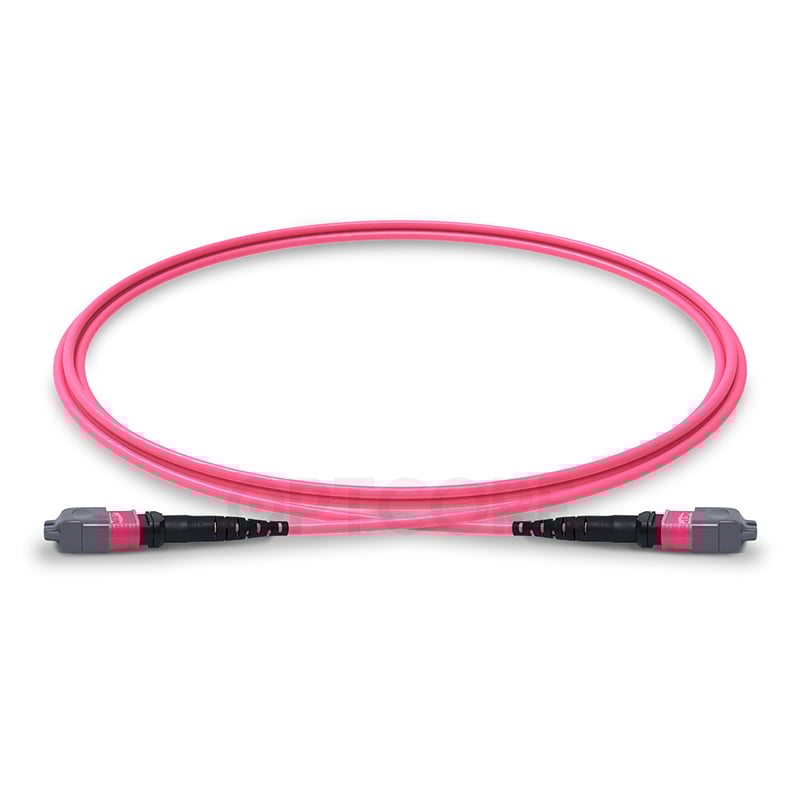

40GB 50/125 Multimode OM4 MTP to MTP Female Fiber Trunk Cable (12 Fiber, Elite, Type B, LSZH, Magenta)

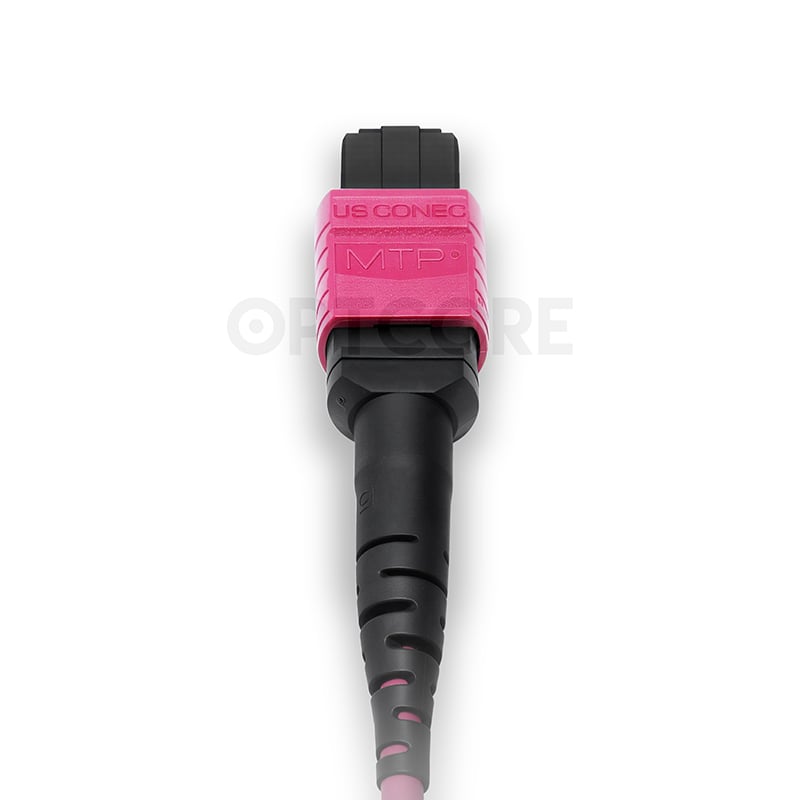

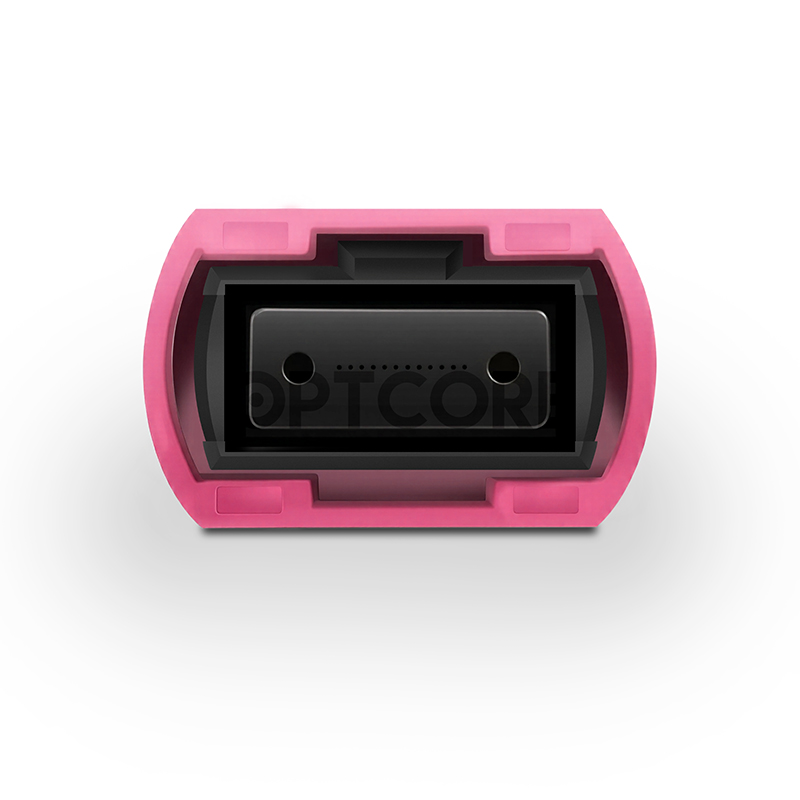

High-density data center require more bandwidth and more space efficiency. MTP trunk cables allow data center users to maximize the effectiveness of high-density network configurations. Optcore’s MT-MTP/F-MTP/F-12OM4-xM-B-LS is factory pre-terminated 50/125 Multimode OM4 MTP trunk cable, offering the user the advantage of consistent quality, much faster installation and simpler cable management. By using high-performance US Conec MTP connector that features the industry’s highest-precision thermoplastic ferrule, the elite MTP trunk cable reduced Insertion Loss to MAX 0.35dB. This MTP trunk cable conforms to Method B (Cross-Connect) polarity. It is suitable for fiber connectivity between 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver module.
Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high back reflection
• Fiber Count: 12 fiber trunk cable
• Suitable for MTP/MPO cassette application
• Laser-Optimized multimode OM4 fiber
• Type B polarity, used for 40G QSFP SR4 and 100G QSFP28 SR4 optics
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• Tested by 3D Interferometer and ensure high performance
Specification
| Fiber Type | 50/125µm Multimode OM4 | Fiber Count | 12-Fiber |

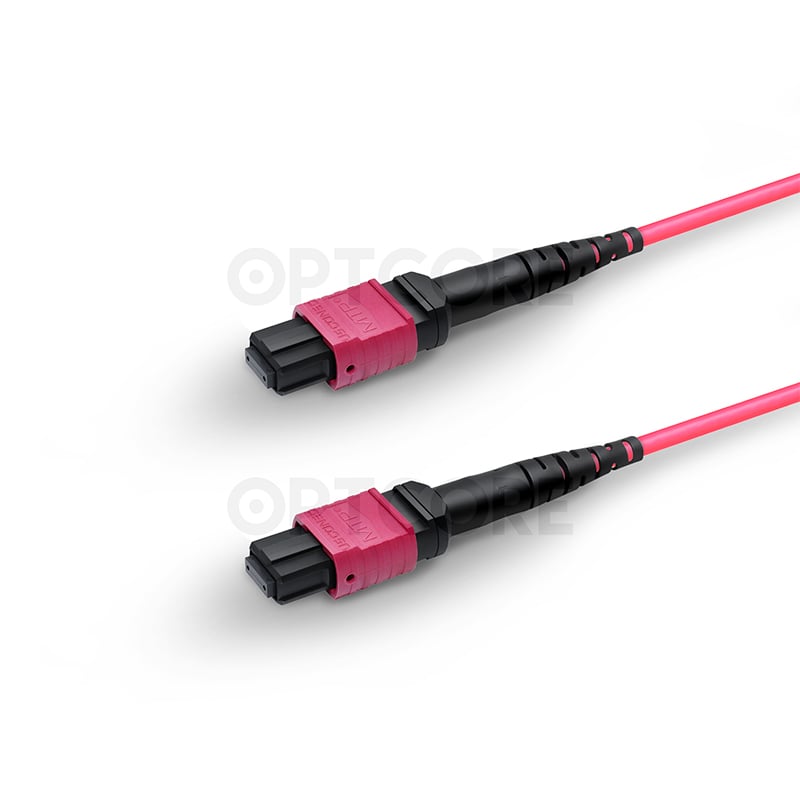

| Connector Type | MTP Female to MTP Female | Polish | PC to PC |
| Cable Length | 1m,2m,3m … 400m or Customize | Cable Diameter | 3.0 mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Polarity | Type B (Crossover) | Durability | ≥200 times |
| Jacket Material | LSZH | Jacket Color | Magenta |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access Array trunk cables Data Center Cabling |
Choose Your Polarity
Ordering Information
| Optcore Part Number | Description |
| MT-MTP/F-MTP/F-12OM4-1M-B-LS | 1M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-3M-B-LS | 3M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-5M-B-LS | 5M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-7M-B-LS | 7M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-10M-B-LS | 10M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-20M-B-LS | 20M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-30M-B-LS | 30M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-50M-B-LS | 50M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-70M-B-LS | 70M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-100M-B-LS | 100M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-200M-B-LS | 200M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-300M-B-LS | 300M 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
| MT-MTP/F-MTP/F-12OM4-xM-B-LS | Custom Length xM 50/125µm Multimode OM4 MTP Fiber Trunk Cable, 12 Fiber, Female, Polarity B, Elite, LSZH |
Download
| Weight | 0.1 kg |
|---|
