50/125 Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, Type B, LSZH
Price range: US$ 32.00 through US$ 116.00 (Excl. VAT)
Each MPO/MTP fiber cable has passed the test of Insertion Loss & Return Loss, 3D Interferometer, End-face Inspection, and Polarity Check in the factory, ensure complies and exceeds industry standards.

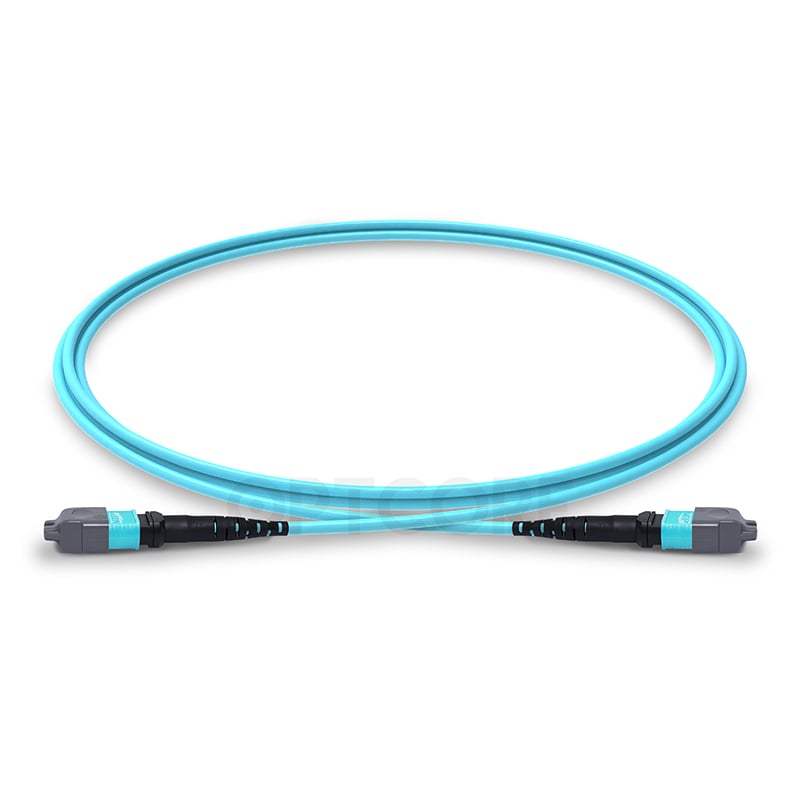

10Gb 50/125 Multimode OM3 MTP Female to MTP Female Elite Trunk Cable (12 Fiber, Type B, LSZH, Aqua)
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, Optcore supplies complete MTP trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while support very high data rates, such as 10-Gigabit, 40-Gigabit Ethernet and 100-Gigabit Ethernet.

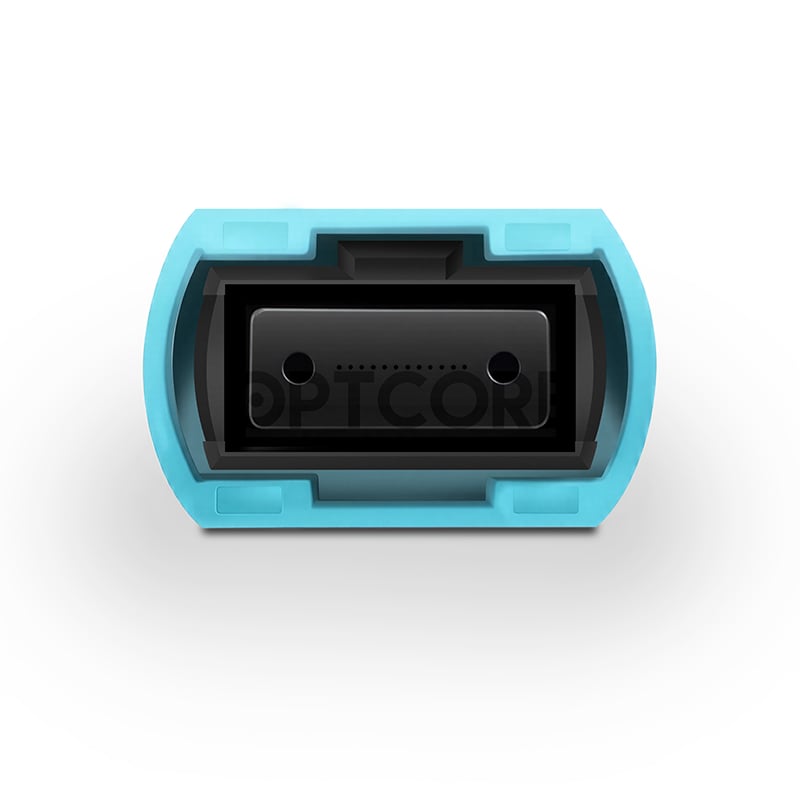

Optcore’s MT-MTP/F-MTP/F-12OM3-xM-B-LS-Elite is a factory pre-terminated 50/125 Multimode OM3 MTP trunk cable, offering the user the advantage of consistent quality, much faster installation and simpler cable management. The MTP fiber optic trunk cable is manufactured with multiple, 12-strand elite MTP female connectors and 12 core OM3 fiber cables. The trunk cable conforms to Method B (Cross-Connect) polarity and is suitable for use in 40G QSFP SR4 transceivers, 100G QSFP28 SR4 connection.
Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high back reflection
• Fiber Count: 12 fiber trunk cable
• Suitable for MPO application
• Multimode OM3 fiber
• Type B polarity, used for 40G QSFP SR4 and 100G QSFP28 SR4 optics
• Optimized performance – available in elite MTP and discrete premium connector upon request
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
Specification
| Fiber Type | 50/125µm Multimode OM3 | Fiber Count | 12-Fiber |
| Connector Type | MTP Female to MTP Female | Polish | PC to PC |
| Cable Length | 1m,2m,3m … 300m or Customize | Cable Diameter | 3.0 mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Polarity | Type B (Crossover) | Durability | ≥200 times |
| Jacket Material | LSZH | Jacket Color | Aqua |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access Array trunk cables Data Center Cabling |
Choose Your Polarity
Ordering Information
| Optcore Part Number | Description |
| MT-MTP/F-MTP/F-12OM3-1M-B-LS-Elite | 1M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-3M-B-LS-Elite | 3M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-5M-B-LS-Elite | 5M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-7M-B-LS-Elite | 7M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-10M-B-LS-Elite | 10M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-20M-B-LS-Elite | 20M50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-30M-B-LS-Elite | 30M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-50M-B-LS-Elite | 50M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-70M-B-LS-Elite | 70M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-100M-B-LS-Elite | 100M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-200M-B-LS-Elite | 200M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-300M-B-LS-Elite | 300M 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
| MT-MTP/F-MTP/F-12OM3-xM-B-LS-Elite | Custom Length xM 50/125µm Multimode OM3 MTP Elite Trunk Cable, 12 Fiber, Female, PC, Polarity B, LSZH |
Download
| Weight | 0.1 kg |
|---|
