MTP® Female to 4xLC Duplex 50/125 Multimode OM4 Fiber Optic Harness Cable, Polarity B, LSZH

The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, Optcore offers complete MTP® to LC harness fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space saving while support very high data rates, such as 10-Gigabit Ethernet and 40-Gigabit Ethernet.

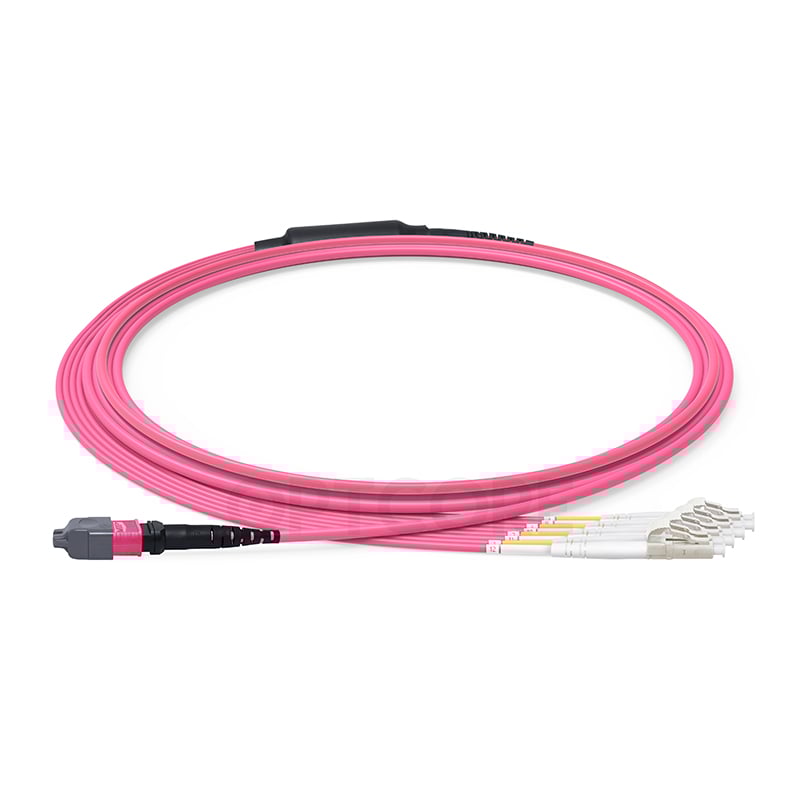

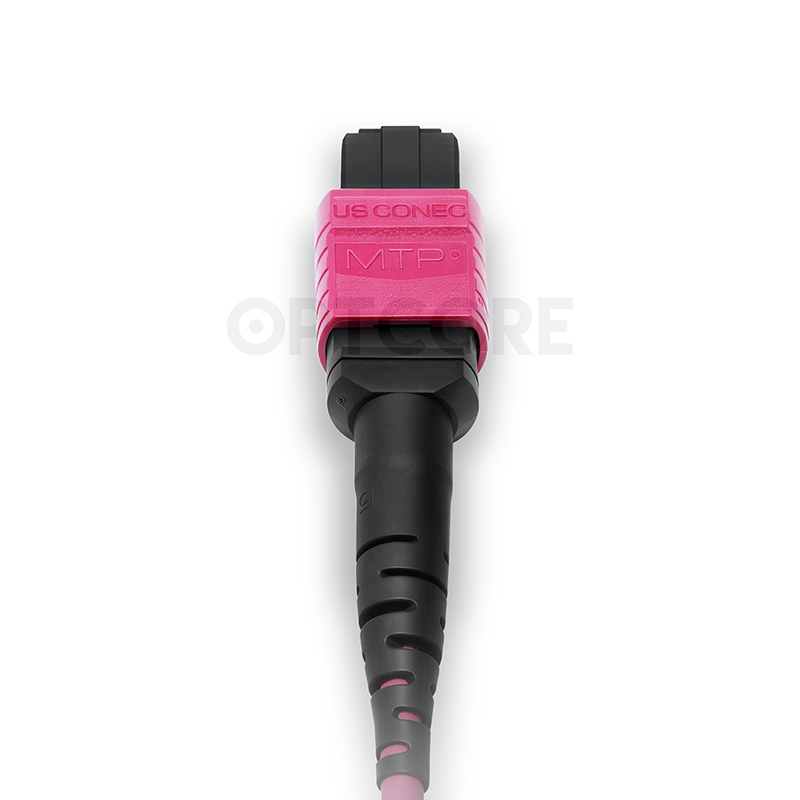

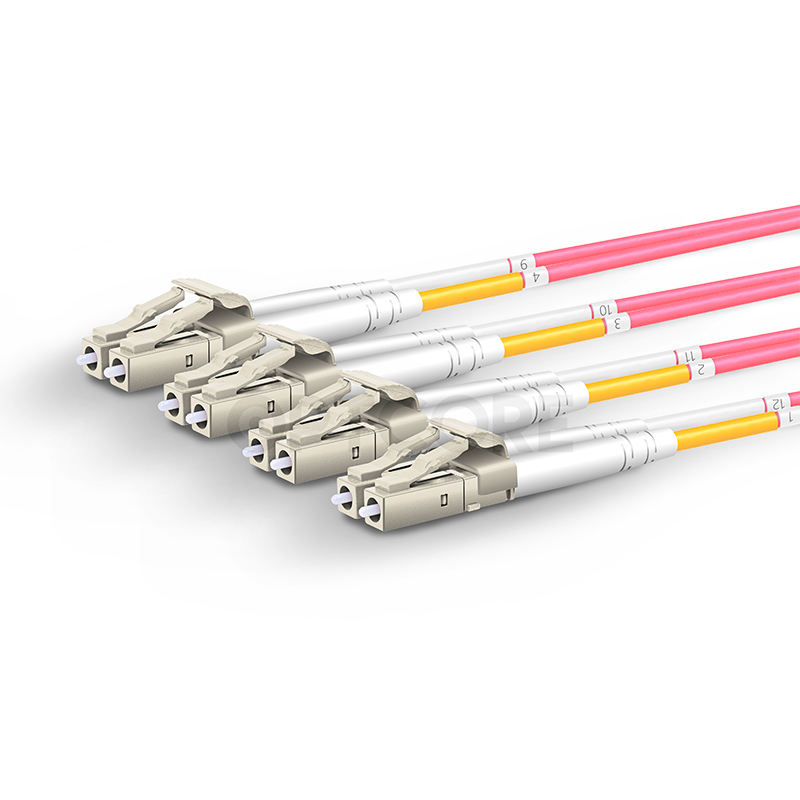

Optcore’s MF-MTP/F-4DLC-OM4-xM-B-LS is factory pre-terminated 50/125 Multimode OM4 MTP® to 4xLC Duplex (8xLC) fiber optic harness cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The OM4 fiber optic harness cable comprises one MTP® female connector and 4xLC duplex fiber connectors on the other end. The MTP® harness cables utilize 8 core laser-optimized OM4 fibers to fully transmit 40GBASE-eSR4, 4 fibers in each direction transmitting at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity and is suitable for use in 40G QSFP eSR4 to 10GBASE-SR optics interconnection.

Features

• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MTP® female to 4 x LC duplex harness cable
• Suitable for MTP® application
• Laser-Optimized multimode OM4 fiber
• Type B polarity, used for 40G QSFP eSR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default

Specification

Fiber Type	50/125µm Multimode OM4	Fiber Count	8-Fiber
Connector Type	MTP® Female to 4xLC Duplex (8xLC)	Polish	PC to PC
Cable Length	1m,2m,3m … 300m or Customize	Cable Diameter	2.0 mm
Insertion Loss	≤0.6dB	Return Loss	≥20dB
Polarity	Type B (Corssover)	Durability	≥500 times
Jacket Material	LSZH	Jacket Color	Violet
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Application	Optical switching interframe connections High density fiber card edge access 40G and 10G interconnect Data Center cabling

Ordering Information

Optcore Part Number	Description
MF-MTP/F-4DLC-OM4-1M-B-LS	1M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-3M-B-LS	3M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-5M-B-LS	5M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-7M-B-LS	7M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-10M-B-LS	10M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-20M-B-LS	20M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-30M-B-LS	30M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-50M-B-LS	50M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-70M-B-LS	70M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-100M-B-LS	100M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-200M-B-LS	200M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-300M-B-LS	300M MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
MF-MTP/F-4DLC-OM4-xM-B-LS	Custom Length xM MTP® Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH
