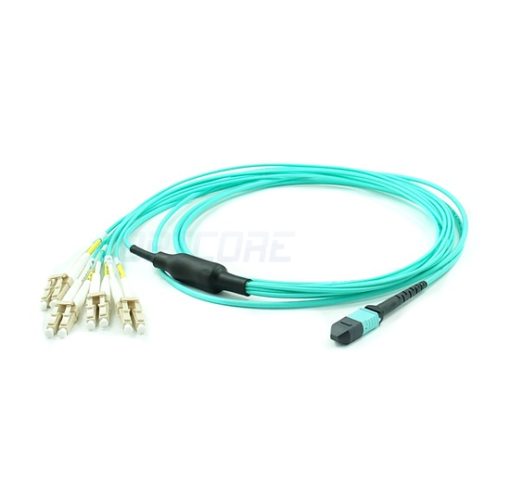

MTP® Female to 4xLC Duplex 50/125 Multimode OM3 Fiber Optic Harness Cable, Polarity B, LSZH
Price range: US$ 32.00 through US$ 49.00 (Excl. VAT)
Optcore offers good quality MTP® to 4xLC Duplex Fiber Optic Harness Cable (OM3, 8 Fiber, Female to Male, PC, Polarity B, LSZH).
MTP® Female to 4xLC Duplex 50/125 Multimode OM3 Fiber Optic Harness Cable, Polarity B, LSZH
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, Optcore supplies complete MTP® to LC harness fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space saving while support very high data rates, such as 10-Gigabit Ethernet and 40-Gigabit Ethernet.
Optcore’s MF-MTP/F-4DLC-OM3-xM-B-LS is factory pre-terminated 50/125 Multimode OM3 MTP® to 4xLC Duplex (8xLC) fiber optic harness cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The OM3 fiber optic harness cable is comprised of one MTP® female connector and 4xLC duplex fiber connectors on the other end. The MTP® harness cables utilize 8 core OM3 fibers to fully transmit 40GBASE-SR4, 4 fibers in each direction transmitting at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity, and suitable for use in 40G QSFP SR4 to 10GBASE-SR optics interconnection.
Features
• Factory-terminated provide consistent quality, high performance and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MTP® female to 4 x LC duplex harness cable
• Suitable for MTP® application
• Laser-Optimized multimode OM3 fiber
• Type B polarity, used for 40G QSFP SR4 and 10GBASE-SR optics interconnect
• Optimized performance – available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH Jacket by Default
Specification
| Fiber Type | 50/125µm Multimode OM3 | Fiber Count | 8-Fiber |
| Connector Type | MTP® Female to 4xLC Duplex (8xLC) | Polish | PC to PC |
| Cable Length | 1m,2m,3m … 300m or Customize | Cable Diameter | 2.0 mm |
| Insertion Loss | ≤0.6dB | Return Loss | ≥20dB |
| Polarity | Type B (Corssover) | Durability | ≥500 times |
| Jacket Material | LSZH | Jacket Color | Violet |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High density fiber card edge access 40G and 10G interconnect Data Center cabling |
Ordering Information
| Optcore Part Number | Description |
| MF-MTP/F-4DLC-OM3-1M-B-LS | 1M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-3M-B-LS | 3M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-5M-B-LS | 5M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-7M-B-LS | 7M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-10M-B-LS | 10M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-20M-B-LS | 20M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-30M-B-LS | 30M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-50M-B-LS | 50M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-70M-B-LS | 70M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-100M-B-LS | 100M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-200M-B-LS | 200M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-300M-B-LS | 300M MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MTP/F-4DLC-OM3-xM-B-LS | Custom Length xM MTP® Female to 4xLC Duplex 50/125µm Multimode OM3 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
