OM4 MPO Female to 4x LC Duplex Breakout Cable, 8 Fiber, Type B, LSZH
Price range: US$ 28.00 through US$ 325.00 (Excl. VAT)

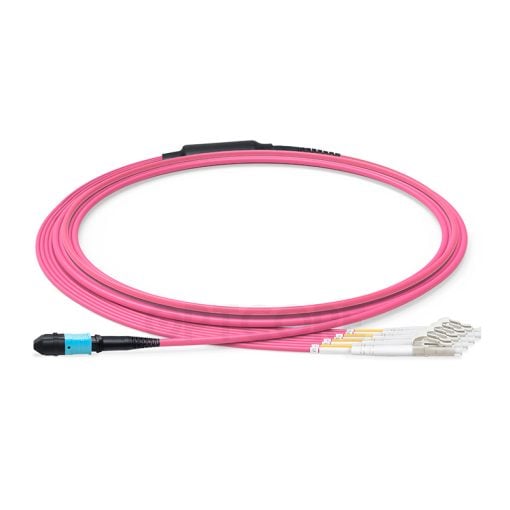

40GB 50/125 OM4 Multimode MPO to 4x LC Duplex Breakout Fiber Patch Cable (OM4, 8 Fiber, Female to Male, Type B, LSZH).
MPO to 4x LC Duplex Breakout Cable (8 Fiber, 50/125 OM4, Female to Male, Type B, LSZH, Magenta)
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic cable manufacturer, Optcore supplies complete OM4 MPO to LC harness fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting very high data rates, such as 10-Gigabit, 40-Gigabit, and 100-Gigabit Ethernet.
Optcore’s MF-MPO/F-4DLC-OM4-xM-B-LS is factory pre-terminated 50/125 Multimode OM4 MPO to 4xLC Duplex (8xLC) fiber optic harness cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic harness cable is comprised of one MPO female connector and 4xLC duplex fiber connectors on the other end. The MPO harness cables utilize 8 core OM4 fibers to fully transmit 40GBASE-eSR4, 4 fibers in each direction transmitting at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity, and the MTP® connector is available upon request. This OM4 MPO to 4xLC Duplex harness cable is suitable for use in 100G QSFP28 SR4 to 25G SFP28 SR or 40G QSFP SR4 to 10G SFP+ SR transceiver interconnection.
Features
• Factory-terminated provides consistent quality, high performance, and reduce installation time
• 100% tested for low insertion loss performance and high return loss
• MPO female to 4 x LC duplex harness cable
• Save Time & Space
• OM4 (OM3) 50/125μm Fiber
• Optimized performance – available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
• LSZH Jacket by Default
Specification
| Fiber Type | 50/125µm Multimode OM4 | Fiber Count | 8-Fiber |
| Connector Type | MPO Female to 4xLC Duplex | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 300m or Customize | Cable Diameter | 2.0 mm |
| Insertion Loss | MPO Standard: ≤0.6dB (0.40dB Typ.) MPO Elite: ≤0.35dB (0.15dB Typ.) LC: ≤0.3dB |
Return Loss | MPO: ≥20dB LC: ≥30dB |
| Polarity | Type B (Crossover) | Durability | ≥500 times |
| Jacket Material | LSZH | Jacket Color | Magenta |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access 40G and 10G interconnect Data Center cabling |
Ordering Information
| Optcore Part Number | Description |
| MF-MPO/F-4DLC-OM4-1M-B-LS | 1M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-3M-B-LS | 3M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-5M-B-LS | 5M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-7M-B-LS | 7M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-10M-B-LS | 10M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-20M-B-LS | 20M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-30M-B-LS | 30M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-50M-B-LS | 50M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-70M-B-LS | 70M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-100M-B-LS | 100M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-200M-B-LS | 200M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-300M-B-LS | 300M MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM4-xM-B-LS | Custom Length xM MPO Female to 4xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 8 Fiber, UPC, Polarity B, LSZH |
Download
| Weight | 0.1 kg |
|---|
