MPO Female to 4 LC Duplex Fiber Breakout Cable, 8 Fiber 50/125 Multimode OM3, Type B, LSZH
Price range: US$ 25.00 through US$ 223.00 (Excl. VAT)
10GB 50/125 OM3 Multimode MPO to 4x LC Duplex Breakout Fiber Patch Cable (OM3, 8 Fiber, Female to Male, Type B, LSZH).

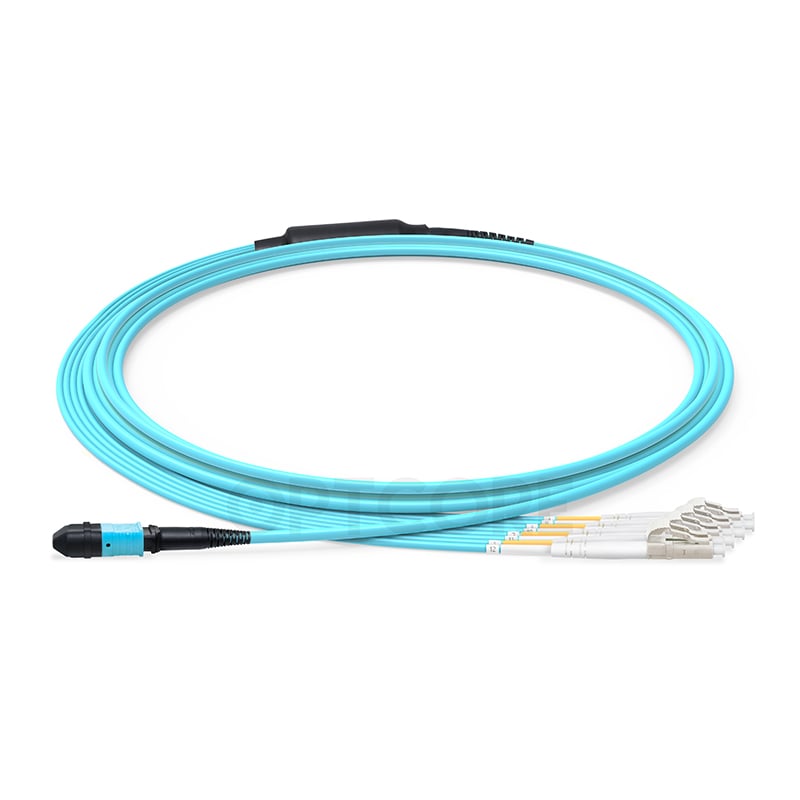

MPO to 4x LC Duplex Fiber Breakout Cable (8 Fiber, OM3, Female to Male, Type B, LSZH, Aqua)
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative MPO fiber cable manufacturer, Optcore supplies complete MPO to LC OM3 harness fiber cable solutions for high-density optical connectivity in the modern data center. Compared with classical fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space savings while supporting very high data rates, such as 10-Gigabit, 40-Gigabit, and 100-Gigabit Ethernet.

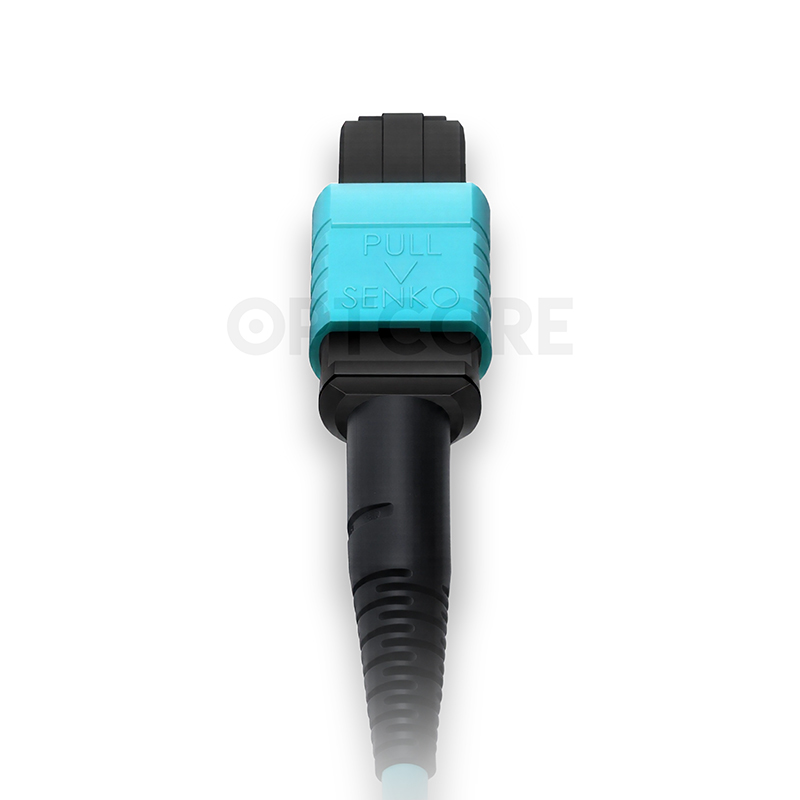

Optcore’s MF-MPO/F-4DLC-OM3-xM-B-LS is factory pre-terminated MPO to 4xLC Duplex 50/125 10G OM3 breakout cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. This MPO breakout cable comprises one MPO female connector and 4xLC duplex fiber connectors on the other end. The MPO harness cables utilize eight core OM3 fibers to fully transmit 40Gbps. 4 fibers in each direction transmit at 10Gbps. The fiber optic harness cable conforms to Method B (Cross-Connect) polarity, and the MTP® connector is available upon request. This OM4 MPO to 4xLC Duplex harness cable is suitable for 100G QSFP28 SR4 to 25G SFP28 SR, or 40G QSFP SR4 to 10G SFP+ SR transceiver interconnection.
Features
• Factory-terminated provides consistent quality, high performance, and reduced installation time
• 100% tested for low insertion loss performance and high return loss
• MPO female to 4 x LC duplex harness cable
• Save Time & Space
• 50/125μm 10G OM3 Fiber
• Optimized performance – available in elite MTP and discrete premium connector
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
• LSZH jacket by default
Specification
| Fiber Type | 50/125µm Multimode OM3 | Fiber Count | 8-Fiber |
| Connector Type | MPO Female to 4xLC Duplex | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 300m or Customize | Cable Diameter | 2.0 mm |
| Insertion Loss | ≤0.6dB | Return Loss | ≥20dB |
| Polarity | Type B (Crossover) | Durability | ≥500 times |
| Jacket Material | LSZH | Jacket Color | Magenta |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access 40G and 10G interconnect Data Center Cabling |
Ordering Information
| Optcore Part Number | Description |
| MF-MPO/F-4DLC-OM3-1M-B-LS | 1M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-3M-B-LS | 3M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-5M-B-LS | 5M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-7M-B-LS | 7M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-10M-B-LS | 10M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-20M-B-LS | 20M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-30M-B-LS | 30M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, PC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-50M-B-LS | 50M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-70M-B-LS | 70M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-100M-B-LS | 100M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-200M-B-LS | 200M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-300M-B-LS | 300M MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
| MF-MPO/F-4DLC-OM3-xM-B-LS | Custom Length xM MPO Female to 4xLC Duplex 50/125µm Multimode OM3 Harness Fiber Cable, 8 Fiber, UPC, Polarity B, LSZH |
Download
| Weight | 0.1 kg |
|---|
