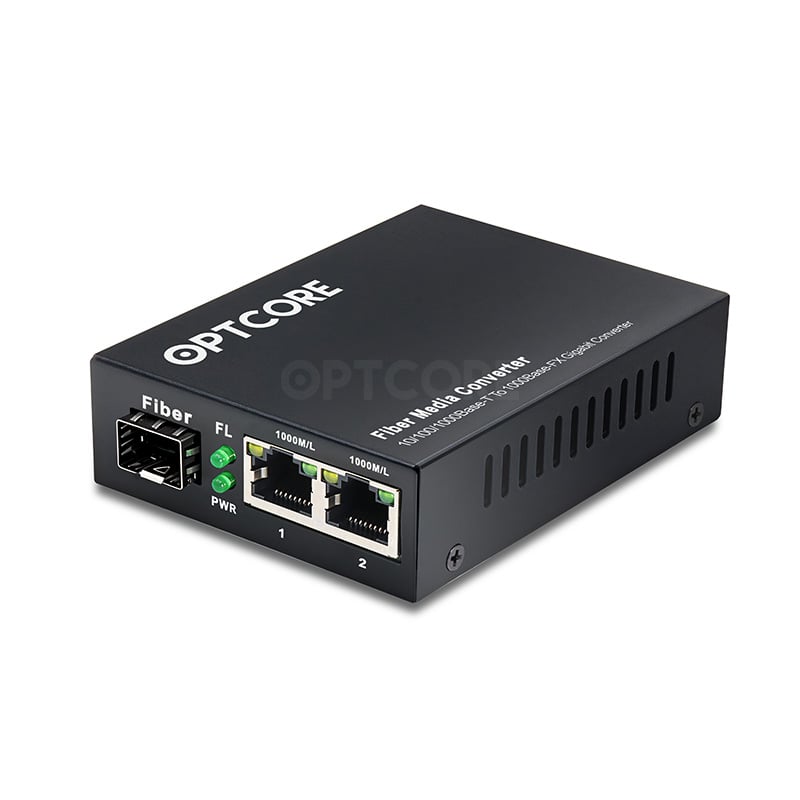

2 Port 10/100/1000Base-T RJ45 Ethernet to 1000Base-FX SFP Fiber Media Converter

2x 10/100/1000Base-T RJ45 (100m/328ft) Ethernet to 1x 1000Base-FX Open SFP Fiber Media Converter (Distance depending on SFP module)

The MC-GSA12-L is an SFP Ethernet media converter that converts 2x 10/100/1000BASE-T copper port to 1000BASE-X fiber optic. This SFP media converter is engineered with a high-performance switch architecture capable of providing wire-speed throughput as high as 1Gbps. The media converter suits remotely deployed edge devices such as IP cameras, access control, VoIP, and wireless access points.

This fiber media converter provides a 2x 10/100/1000BASE-T copper RJ45 port and a 1x open SFP slot. It lets you choose the MSA-compliant pluggable 1G SFP transceiver optics that best meet your fiber connection needs. You may select a wide range of SFP transceivers from multimode SFP, Singlemode SFP, CWDM SFP, and BiDi SFP that suit all your fiber cabling systems. This 2-port SFP media converter offers a flexible and cost-effective way to extend the distance of an existing copper network, the life of non-fiber-based equipment, or the distance between two devices, allowing you to maximize the usage and performance of legacy equipment.

Features

• Cost-effective migration from 2-Port 10/100/1000BASE-T RJ45 copper to 1G fiber optic
• the auto-negotiation function allows UTP ports to auto-select 10/100/1000M and Full Duplex or Half Duplex
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Gigabit Open SFP slot to customize the network extension distance to your requirements with any MSA-compliant transceiver
• Plug and Play, no configuration required to allow quick and straightforward installation
• Easy-to-view LED indicators to allow network administrators to troubleshoot and monitor network activity easily
• ROHS-compliant and Lead-Free

Applications

• Intelligent transportation supervisory system(ITS)
• High-speed Way supervisory and Tele-Communication System
• Large corporations, network security monitoring system, multifunction system
• Long-distance Multi-media Schooling, Campus monitoring, long-distance broadcast television transmission system

Specification

Power Adapter: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-GSA11-L-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)

Ordering Information

The MC-GSA14-L 4-port media converter supports the SFP transceiver modules below. Click the P/N to learn more detailed information.

Download

Datasheet
