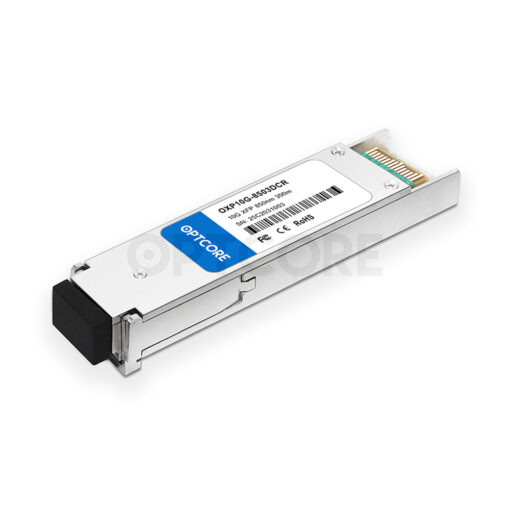

Hirschmann M-XFP-SR/LC Compatible 10GBASE-SR XFP 850nm 300m Transceiver
US$ 49.00 (Excl. VAT)
10GBASE-SR XFP Transceiver (MMF, 850nm, 300m, LC, DDM) for use with Hirschmann 10G Switches and Routers.
Hirschmann M-XFP-SR/LC Compatible 10GBASE-SR XFP Transceiver Module (MMF, 850nm, 300m, LC, DDM)
Optcore’s OXP10G-8503DCR-HSM is a low-cost replacement for the Hirschmann M-XFP-SR/LC XFP transceiver module. It is programmed to be compatible with a wide range of Hirschmann 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is for 9.95Gbps to 11.1Gbps data transmission applications. It is compliant with the current Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fiber Channel 1200-Mx-SN-I. AA1403005-E5 provides 10-Gigabit connectivity up to 300m on multimode fiber (MMF) at 850nm.
Features
• Functionally identical to Hirschmann M-XFP-SR/LC 10GbE SR XFP module
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• 850nm VCSEL laser and PIN receiver
• Distance up to 300m on multimode OM3 fiber
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | M-XFP-SR/LC | Optcore Part Number | OXP10G-8503DCR-HSM |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 300 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Hirschmann.
| Weight | 0.05 kg |
|---|
