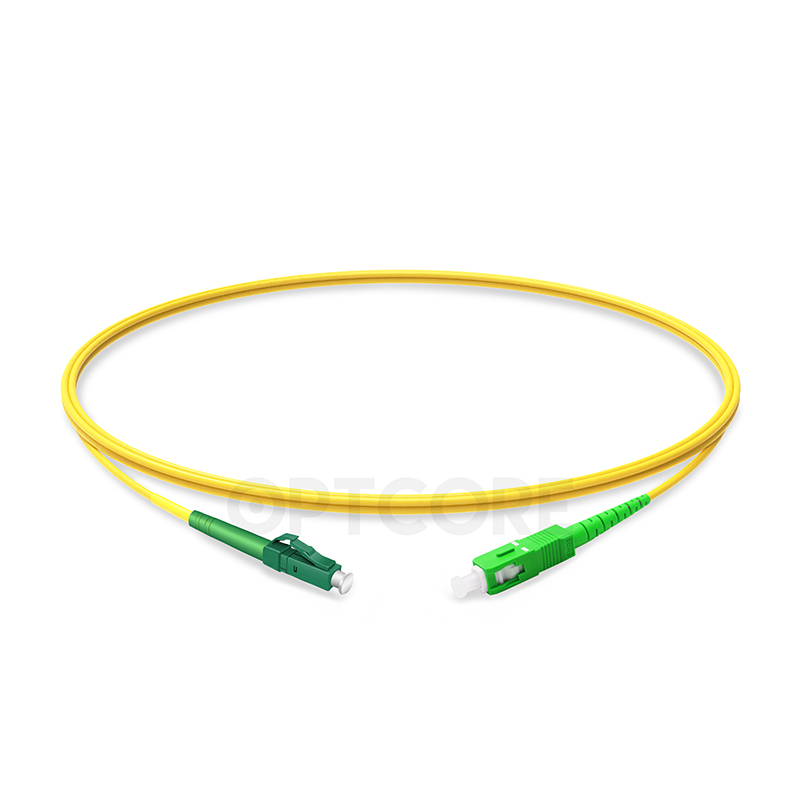

LC-SC APC 9/125 OS2 Singlemode LSZH Simplex Fiber Patch Cable
Price range: US$ 2.00 through US$ 15.90 (Excl. VAT)
Each LC APC to SC APC Singlemode 9/125µm OS2 Simplex Fiber Patch Cable has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds the latest industry standards.
Customized Fiber Patch CableLC to SC APC Singlemode 9/125μm OS2 Simplex Fiber Patch Cable (2.0mm, APC Polish, LSZH)
Fiber optic patch cable is also known as fiber patch cord, fiber optic cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of LC/APC to SC/APC Singlemode 9/125µm OS2 Simplex fiber patch cables with many choices of different lengths, jacket material, and cable diameter. This simplex fiber patch cable is manufactured with ITU-T G657.A2 bend sensitive fibers, and LC-SC connectors equipped with zirconia ceramic ferrule, which provides optimum insertion and return loss to meet your stable network needs.

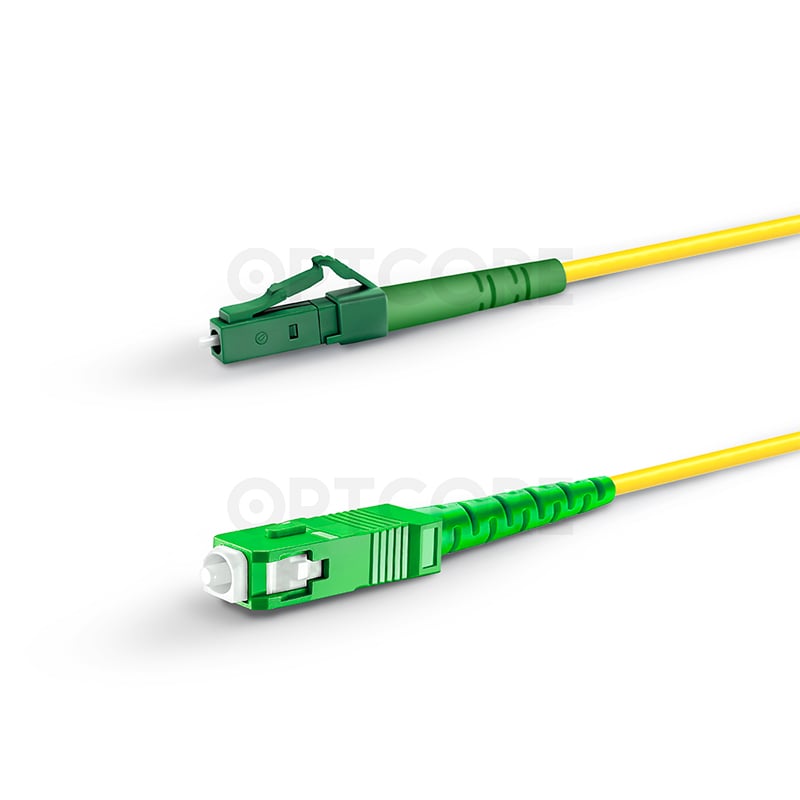

The LC-SC connectors utilize an APC (Angled Physical Contact) polish, which provides a higher return loss than standard UPC (Ultra Physical Contact) Singlemode connectors. The APC Singlemode fiber optic patch cables are suitable for carrier equipment, telecommunications, patch field, and CATV applications. Each LC/APC-SC/APC Singlemode fiber patch cable has passed the end-face, insert loss and return loss test to ensure superior performance and quality, ideal for your fiber cabling infrastructure.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• LSZH jacket as default
• Ideal solution for high-speed data transmission
• APC polish for different application
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 (G.657.A2, Compatible with G.652D) | Fiber Count | Simplex (1-fiber) |
| Connector Type | LC to SC | Polish | APC to APC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥60dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (Low Smoke Zero Halogen) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| LCA-SCA-SM-S1M-20-LS | 1M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S2M-20-LS | 2M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S3M-20-LS | 3M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S4M-20-LS | 4M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S5M-20-LS | 5M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S6M-20-LS | 6M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S7M-20-LS | 7M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S8M-20-LS | 8M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S9M-20-LS | 9M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S10M-20-LS | 10M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S15M-20-LS | 15M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S20M-20-LS | 20M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S30M-20-LS | 30M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-S50M-20-LS | 50M LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LCA-SCA-SM-SxM-20-LS | Custom Length xM LC to SC APC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
Download
| Weight | N/A |
|---|---|
| Connector | |
| Polish Type | |
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft), 40m (131ft), 50m (164ft), 75m (246ft), 100m (328ft) |
| Fiber Count | |
| Jacket Material |
