LC-LC 100GB OM5 50/125 Multimode Wideband LSZH Duplex Fiber Patch Cable
Price range: US$ 4.80 through US$ 49.00 (Excl. VAT)
Each OM5 fiber patch cable has passed the test of Insertion Loss, Return Loss and End-face Inspection in the factory to ensure complies and exceeds industry standards.

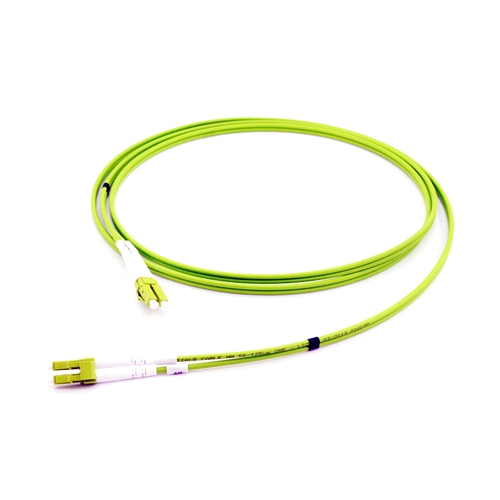

LC to LC 100G OM5 Multimode Wideband Fiber Optic Patch Cable (50/125µm, 2.0mm, UPC, LSZH, Green)
As the amount of traffic in data centers grows, so does the need for next-generation devices and fiber cables to support higher bandwidths. This OM5 duplex multimode 50/125 fiber patch cable is a wideband multimode fiber (WBMMF) patch cable that supports Short Wavelength Division Multiplexing (SWDM) to transmit multiple signals (wavelengths) on one fiber, increasing the bandwidth of a single fiber by at least a factor of four. The LC to LC multimode fiber patch cable provides cost-effective fiber solutions for increased bandwidth in 40/100Gb Ethernet applications.
The OM5 fiber cable meets ANSI/TIA-492AAAE and current IEEE 802.3ae requirements. It is completely backward compatible with existing OM3 and OM4 50/125 fiber networks and applications, potentially making your fiber optic cable installation easier. The OM5 fiber patch cable is manufactured with high-quality wideband multimode fiber (WBMMF) fiber and LC-LC ceramic connectors and is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is LSZH (Low-Smoke, Zero-Halogen) flame retardant, to ensure minimal smoke, toxicity, and corrosion. It is ideal for 40G QSFP+ and 100G QSFP28 transceivers connection.
Features
• Low insertion loss
• High back reflection loss
• Rated OM5 to offer a wideband 50/125 multimode fiber solution
• Provides an upgrade path from 40 Gbps to 100 Gbps and beyond
• Backward compatible with OM3 and OM4 applications
• Low-Smoke, Zero Halogen (LSZH) green jacket
• The ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 50/125μm OM5 Multimode | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to LC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (Low-Smoke, Zero-Halogen) | Jacket Color | Green |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application | 10/40/100 Gigabit Ethernet, Data Storage, Legacy LANs |
Ordering Information
| Optcore Part Number | Description |
| LC-LC-OM5-D1M-20-LS | 1M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D2M-20-LS | 2M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D3M-20-LS | 3M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D5M-20-LS | 5M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D7M-20-LS | 7M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D10M-20-LS | 10M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D15M-20-LS | 15M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D20M-20-LS | 20M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D30M-20-LS | 30M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-D50M-20-LS | 50M LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
| LC-LC-OM5-DxM-20-LS | Custom Length xM LC to LC Duplex OM5 Multimode Fiber Patch Cable (2.0mm, LSZH) |
Download
| Weight | N/A |
|---|
