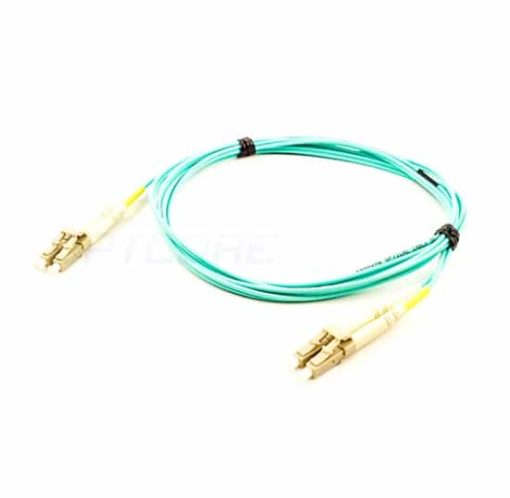

LC-LC 10G OM3 Multimode Duplex LSZH Fiber Optic Patch Cable
Price range: US$ 2.80 through US$ 40.70 (Excl. VAT)
Optcore offers good quality LC-LC 10G OM3 fiber optic patch cable (Duplex, 50/125μm, LSZH, φ2.0mm, UPC Polish).
LC-LC 50/125μm 10G OM3 Multimode Duplex LSZH Fiber Optic Patch Cable
Optcore’s 10G OM3 duplex multimode fiber optic patch cable is laser optimized multimode fiber (LOMMF) cable for use with 10 Gigabit Ethernet applications. This OM3 fiber optic patch cable features an extremely high bandwidth, providing nearly three times the bandwidth over conventional 62.5/125µm multimode fiber. This OM3 duplex multimode fiber optic cable offers improved performance, designed for 10GBase-SR, 10GBase-LRM connection in data centers. In the meantime, the OM3 fiber patch cable is completely compatible with the slower legacy system using LED or VCSEL optics, which allow the customers use existing fiber cabling and system designs and easily update the cabling networks in the future.
Optcore offers an extensive line of LC to LC 50/125µm 10G OM3 duplex fiber optic patch cables with many choices of different length, jacket material, polish, and cable diameter. They are manufactured using high-quality material and are strictly tested for low insertion and return loss to ensure superior performance and quality.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• Designed for 10Gbase-SR and LRM applications
• Backward compatible with legacy LAN’s
• Low-Smoke, Zero Halogen (LSZH) Aqua jacket
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 10G OM3 Multimode | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to LC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH | Jacket Color | Aqua |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application | 10 Gigabit Ethernet, Data Storage, Legacy LANs |
Ordering Information
| Optcore Part Number | Description |
| LC-LC-OM3-D1M-20-LS | 1M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D2M-20-LS | 2M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D3M-20-LS | 3M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D4M-20-LS | 4M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D5M-20-LS | 5M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D6M-20-LS | 6M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D7M-20-LS | 7M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D8M-20-LS | 8M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D9M-20-LS | 9M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D10M-20-LS | 10M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D15M-20-LS | 15M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D20M-20-LS | 20M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D30M-20-LS | 30M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-D50M-20-LS | 50M LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
| LC-LC-OM3-DxM-20-LS | Custom Length xM LC-LC Duplex 50/125μm 10G OM3 Multimode 2.0mm LSZH Fiber Optic Patch Cable |
