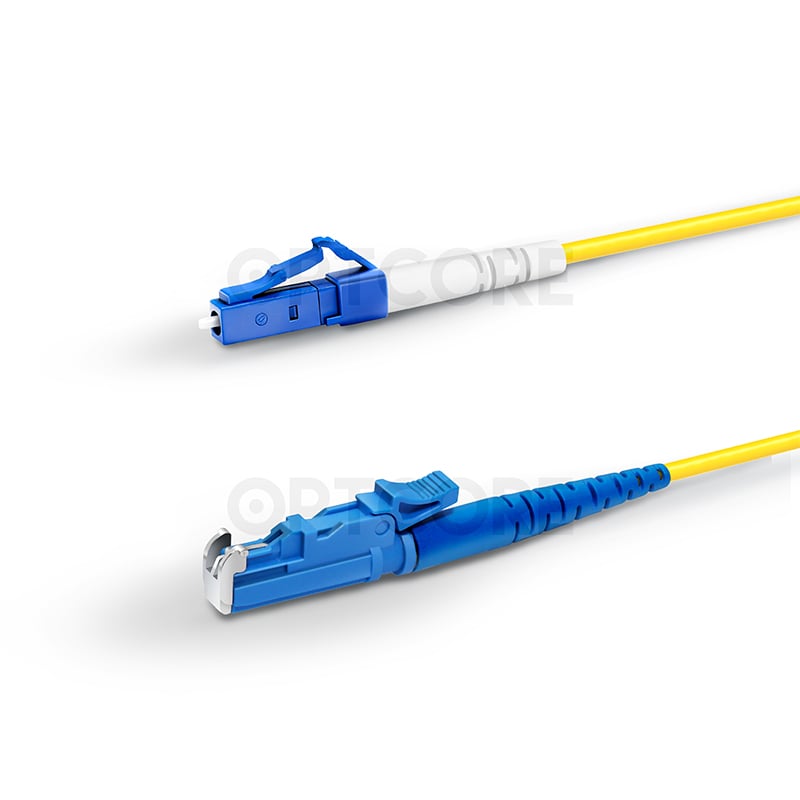

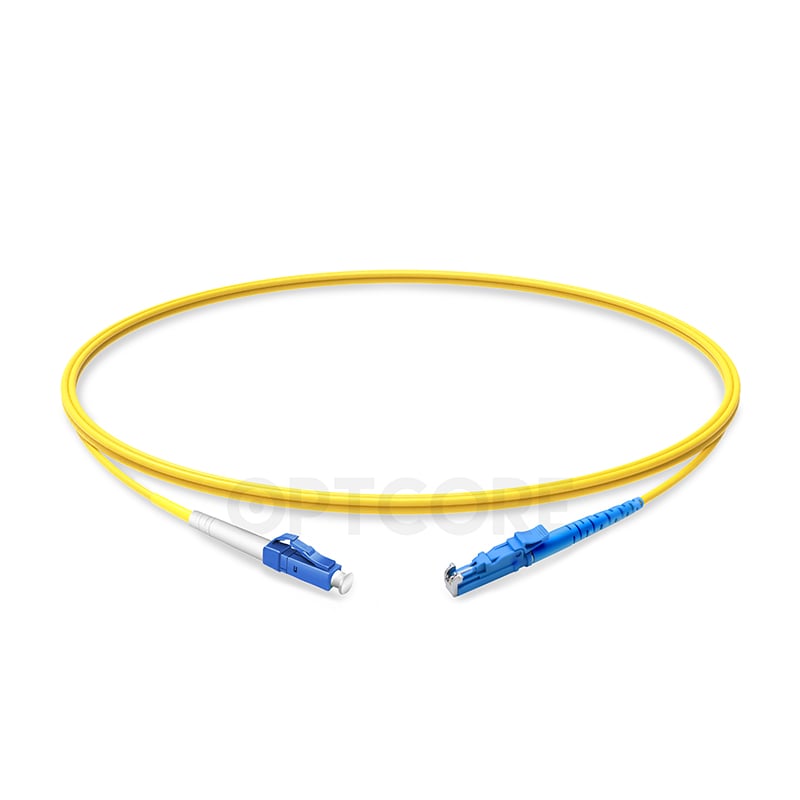

LC-E2000(LSH) 9/125 OS2 Singlemode LSZH Simplex Fiber Patch Cable
Price range: US$ 5.10 through US$ 19.00 (Excl. VAT)
Each LC UPC to E2000 UPC Singlemode 9/125µm OS2 Simplex Fiber Patch Cable has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds the latest industry standards.
Customized Fiber Patch CableLC to E2000 UPC Singlemode 9/125μm OS2 Simplex Fiber Patch Cable (2.0mm, UPC Polish, LSZH)
Fiber optic patch cable is also known as fiber patch cord, fiber optic cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of FC/UPC to FC/UPC Singlemode 9/125µm OS2 Simplex fiber patch cables with many choices of different lengths, jacket material, and cable diameter. This simplex fiber patch cable is manufactured with ITU-T G657.A2 bend sensitive fibers, and LC-E2000(LSH) connector equipped with zirconia ceramic ferrule, which provides optimum insertion and return loss to meet your stable network needs.
The LC-E2000(LSH) connector utilizes standard UPC (Ultra Physical Contact) polish. The UPC Singlemode fiber optic patch cables are suitable for carrier equipment, telecommunications, patch field, and CATV applications. Each SC-E2000(LSH) Singlemode fiber patch cable has passed the end-face, insert loss and return loss test to ensure superior performance and quality, ideal for your fiber cabling infrastructure.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• LSZH jacket as default
• Ideal solution for high-speed data transmission
• UPC polish for different application
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 (G.657.A2, Compatible with G.652D) | Fiber Count | Simplex (1-fiber) |
| Connector Type | LC to E2000 | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (Low Smoke Zero Halogen) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| LC-E2000-SM-S1M-20-LS | 1M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S2M-20-LS | 2M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S3M-20-LS | 3M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S4M-20-LS | 4M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S5M-20-LS | 5M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S6M-20-LS | 6M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S7M-20-LS | 7M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S8M-20-LS | 8M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S9M-20-LS | 9M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S10M-20-LS | 10M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S15M-20-LS | 15M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S20M-20-LS | 20M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S30M-20-LS | 30M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-S50M-20-LS | 50M LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-SxM-20-LS | Custom Length xM LC to E2000 UPC 9/125 OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, LSZH) |
Download
| Weight | N/A |
|---|---|
| Connector | |
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft), 40m (131ft), 50m (164ft), 75m (246ft), 100m (328ft) |
| Fiber Count | |
| Jacket Material |
