LC-E2000 (LSH) UPC Singlemode 9/125µm OS2 LSZH Duplex Fiber Patch Cable
Price range: US$ 6.80 through US$ 31.50 (Excl. VAT)
Each LC-E2000 Singlemode 9/125µm OS2 Duplex Fiber Patch Cable has passed the Insertion Loss, Return Loss Test & End-face Inspection in the factory to comply and exceeds industry standards.

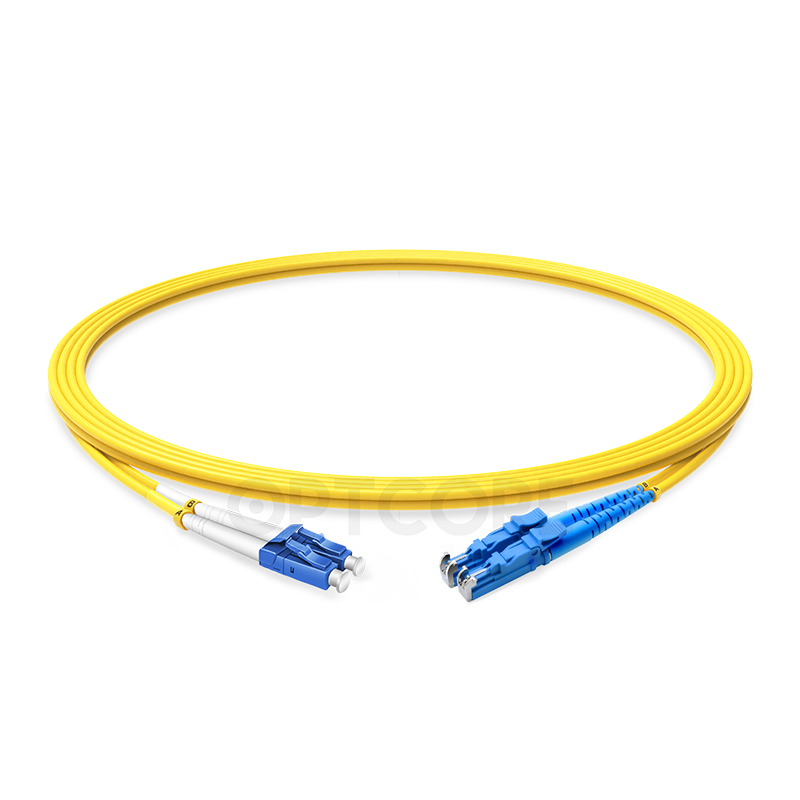

LC to E2000 (LSH) Singlemode 9/125µm OS2 Duplex Fiber Patch Cable (LC-E2000, UPC Polish, 2.0mm, LSZH, Yellow)
Fiber optic patch cable is also known as fiber patch cord, optical cable, or fiber optic jumper. As an essential component commonly used in fiber-optic networks, high-quality patch cables are critical for any high-performance fiber-optic network. Optcore offers an extensive line of LC/UPC to E2000/UPC 9/125µm OS2 Singlemode duplex fiber patch cables with many choices of different lengths, jacket materials, and cable diameters. This fiber patch cable is made with G657.A2 bend-sensitive fibers and high-quality LC-E2000 connectors. The E2000 connector features a spring-loaded shutter to protect it from dust and scratches. When the connector is disengaged, the shutter automatically closes, packing the fiber end face free of dust and locking in potentially harmful laser beams.
The E2000 connectors utilize standard UPC (Ultra Physical Contact) single-mode connectors. These LC-E2000 Singlemode fiber optic patch cables are suitable for carrier equipment, telecommunications, patch field, and CATV applications. Each LC-E2000 fiber patch cable is manufactured using high-quality material and is strictly tested for insertion and return loss to ensure superior performance and quality, ideal for fiber cabling infrastructure.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• LSZH jacket as default
• Ideal solution for high-speed data transmission
• UPC polish ensures higher return loss
• 100% inspected for optical characteristics before shipment
Superior Zirconia Ceramic Ferrule
Premium Grade A Zirconia Ceramic Ferrule provides low insertion loss, precise alignment, and 500 times mating durability to ensure high-speed network transmission stability.
LSZH Rated Outer Jacket
The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) fiber patch cable.
0.20dB Max. IL & 50dB Min. RL
When performance and reliability are vital, use our quality fiber patch cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times.
Specification
| Fiber Type | 9/125µm Singlemode OS2 (G.657.A2, Compatible with G.652D) | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to E2000 (LSH) | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication Other Indoor networks & telecommunications |
Country Of Origin | China |
Ordering Information
| Optcore Part Number | Description |
| LC-E2000-SM-D1M-20-LS | 1M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D2M-20-LS | 2M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D3M-20-LS | 3M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D4M-20-LS | 4M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D5M-20-LS | 5M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D7M-20-LS | 7M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D10M-20-LS | 10M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D15M-20-LS | 15M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D20M-20-LS | 20M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D25M-20-LS | 25M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D30M-20-LS | 30M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D40M-20-LS | 40M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D50M-20-LS | 50M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D75M-20-LS | 75M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-D100M-20-LS | 100M LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
| LC-E2000-SM-DxM-20-LS | Custom Length xM LC to E2000 (LSH) UPC Singlemode 9/125 OS2 Duplex Fiber Patch Cable (2.0mm, LSZH) |
