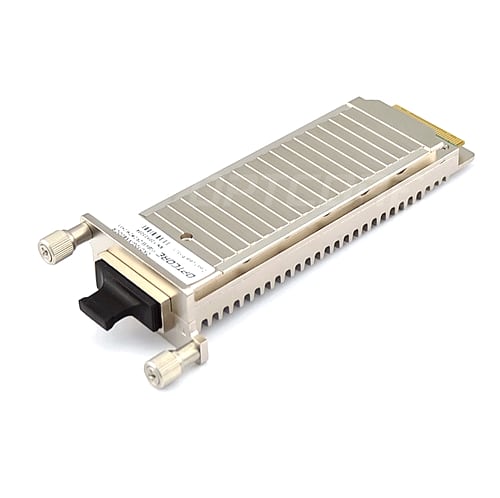

Juniper XENPAK-1XGE-SR Compatible 10GBASE-SR MMF 850nm 300m XENPAK Transceiver
US$ 72.00 (Excl. VAT)
Good quality Juniper XENPAK-1XGE-SR compatible 10GBASE-SR XENPAK Transceiver (MMF, 850nm, 300m, SC).
Available on backorder
Juniper XENPAK-1XGE-SR Compatible 10GBASE-SR MMF 850nm 300m XENPAK Transceiver
Optcore’s OXK10G-8503DCR-JNP is programmed to be compatible with Juniper network equipment including Ethernet Switches and Ethernet Routers for data center application. It is an ideal equivalent to Juniper XENPAK-1XGE-SR 10GBASE-SR XENPAK module.
The XENPAK transceiver module provides 10-Gigabit connectivity up to 300m on multi-mode fiber (MMF) for data center, enterprise wiring closet and service provider transport applications. It fully complies with the XENPAK Multi-Sourcing Agreement (MSA) and can be used with any MSA compliant equipment. The XENPAK transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Compatible with XENPAK MSA
• Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
• Transmission Distance up to 300m on MMF
• Vertical Cavity Surface Emitting Laser at 850nm
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply: +3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring
• ROHS compliant and Lead-Free
• Compatible with Juniper XENPAK-1XGE-SR
Specification
| Compatible OEM Part Number | XENPAK-1XGE-SR | Optcore Part Number | OXK10G-8503DCR-JNP |
| Form Factor | XENPAK | Data Rate | 10Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 300m | Optical Components | VCSEL/PIN |
| Transmitter Power | -7.3 ~ -1.3 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -9 dBm | Receiver Overload | > 0.5 dBm |
| Connector | Duplex SC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.3 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet
10G Fiber Channel,Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Juniper.
| Weight | 0.25 kg |
|---|
