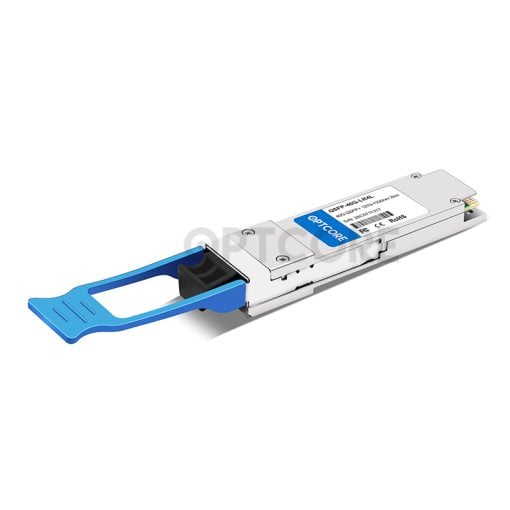

Juniper JNP-QSFP-40GE-IR4 Compatible 40GBASE-IR4 CWDM 1271~1331nm 2km QSFP+ Transceiver

Juniper JNP-QSFP-40GE-IR4 Compatible 40GBASE-IR4 CWDM 1271~1331nm 2km QSFP+ Transceiver

Optcore’s QSFP-40G-IR4 is a high performance and cost-effective QSFP+ IR4 transceiver designed for 40 Gigabit Ethernet (40GbE) optical communication applications. The module complies with QSFP+ MSA and IEEE 802.3ba 40GBASE-IR4 specifications. The QSFP+ IR4 Transceiver converts 4 inputs channel of 10.3125Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. On the receiver side, the transceiver optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals and converts them to 4 channel output electrical data. The center wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm. The module contains a LC Duplex connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system,single-mode fiber (SMF) has to be applied in this module.

The QSFP-40G-IR4-JNP QSFP+ optics is programmed and tested to be compatible with Juniper data center switches, routers, NICs and other optical transport devices for 40G Ethernet and high-performance computing networks. It is an ideal equivalent to Juniper JNP-QSFP-40GE-IR4 QSFP+ optics module at lower cost, which provides a reliable compatible 40G QSFP+ optics solution for system integrator, distributors and ends users in data center networking infrastructure.

Features

• High Channel Capacity: 40 Gbps per transceiver
• Transmission data rate up to 10.3Gbps per channel
• Up to 2km links on single mode fiber
• 4 CWDM channels 1271, 1291,1311 and 1331nm
• 4 CWDM lanes Mux/Demux design
• Electrically hot-swappable
• Compliant with QSFP+ MSA
• IEEE 802.3ba Electrical Interface
• LC Duplex Optical Connector
• Operating temperature range:0~70ºC
• Power dissipation < 3.5 W
• Supports Digital Diagnostics Monitoring
• RoHS6 Compliant

Specification

Download

QSFP-40G-IR4-JNP 40GBASE-IR4 QSFP+ Transceiver Data Sheet

Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Juniper.
