Juniper JNP-QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km Transceiver

Juniper JNP-QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 Transceiver (SMF, 1310nm, 10km, LC, DOM)

OPTCORE provides Juniper JNP-QSFP-100G-LR4 compatible QSFP28 module with guaranteed quality and satisfaction. This module supports 100GBASE-LR4 throughput up to 10km over G.652 single mode fiber (SMF). It features 4x LAN WDM DFB transmitter and 4x PIN receiver, which convert 4x 25.78 Gbps electrical data into four optical signals. These signals are then multiplexed into a single channel for 103.125 Gbps optical transmission. The 100G module complies with QSFP28 MSA, IEEE 802.3ba, and SFF-8636. It is ideal for 100G Ethernet connectivity in data centers, high-performance computing networks, enterprise core and distribution layers, and campus networks. Furthermore, each QSFP28 is programmed and rigorously tested at the factory, ensuring compatibility with the Juniper switch 100G QSFP28 port.

Specifications

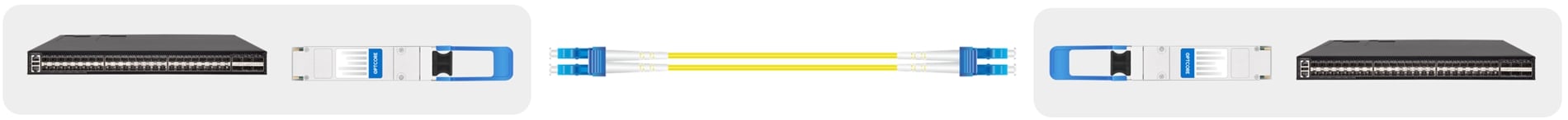

• 100G Switch Connectivity

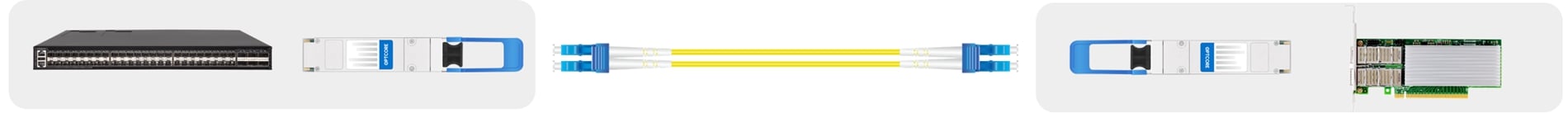

• 100G Switch to NIC Connectivity

100G Switch (48x SFP+, 6x QSFP28)        QSFP-100G-LR4                   LC-LC-SM-DxM                         QSFP-100G-LR4              100G Ethernet Switch

100G Switch (48x SFP+, 6x QSFP28)        QSFP-100G-LR4                   LC-LC-SM-DxM                         QSFP-100G-LR4                 100G Network Card

Optimal Performance and Quality for 100G Networks

Featuring a built-in Macom chip and reliable 1310nm LAN-WDM DFB laser from global leaders, the 100GBASE-LR4 QSFP28 module delivers Low Power Consumption (≤3.5W) and Stable Optical Links for 100G single mode infrastructure. You can rest assured regarding quality and warranty.

High Speed 100G Connectivity for Long Range Transmission

Integrating 4x 25G DFB/PIN and MUX/DEMUX with an LC duplex connector, this module provides 100 Gbps throughput with 10km over single mode fiber (SMF). Ideal for 100G connectivity between the data center, server room, enterprise core layer, and telecom networks.

LC Duplex

Single Mode Fiber (SMF)

Max 10km Distance

Ideal for data center Interconnect

High Bandwidth

4x 25.78 Gbps, total 103.12 Gbps

Intelligent DOM/DDM for Reliable Networks

With built-in DOM/DDM function, the 100G QSFP28 module allows users to monitor the fiber link operating parameters in real-time. It will enable you to troubleshoot when problems occur quickly, ensuring a reliable optical network.

Compatibility

Resources

QSFP-100G-LR4 Datasheet

Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Juniper.
