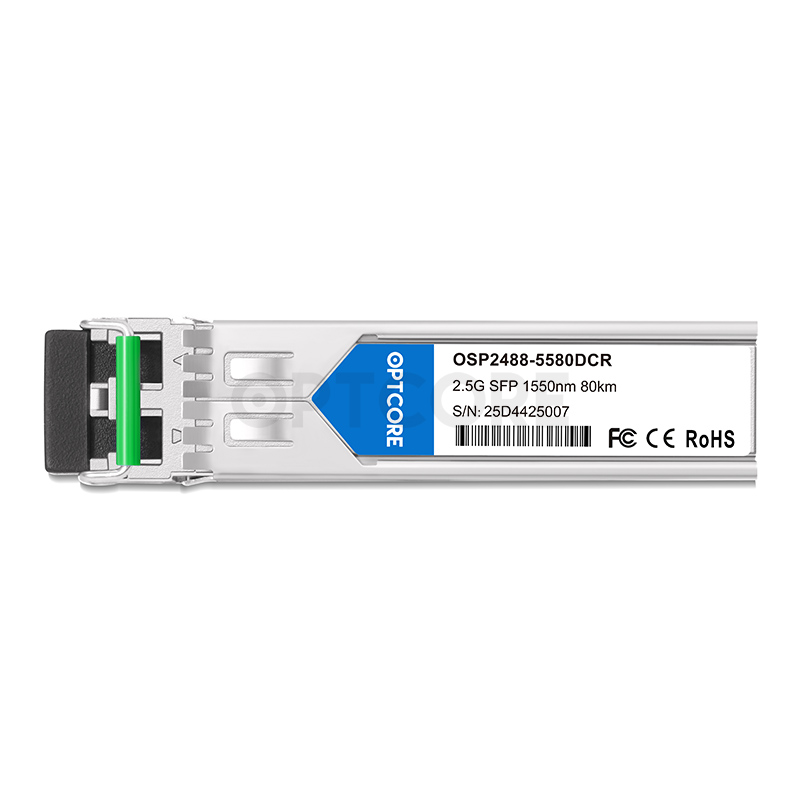

HPE JD087A Compatible 2.5G 1550nm 80km SFP Transceiver
US$ 65.00 (Excl. VAT)
Good quality HPE JD087A compatible 2.5Gb/s SFP Transceiver (SMF, 1550nm, 80km, LC, DDM).
HPE JD087A Compatible 2.5Gb/s SMF 1550nm 80km DDM SFP Optical Transceiver Module
Optcore’s OSP2488-5580DCR-HPE is a high performance small form factor pluggable SFP single mode transceiver for 2.488Gbps SONET OC-48 and SDH STM-16 long reach (LR-2) application. It is fully comply with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.
The 2.5Gbps SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1550nm DFB laser and the APD photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
The OSP2488-5580DCR-HPE SFP transceiver is programmed and tested to be compatible with HPE networking equipment for SONET/SDH (POS), optical networking and ATM applications. It is an ideal equivalent to HPE JD087A OC-48/STM-16 single mode long reach (LR-2) SFP optical module at a much lower price, which provides a reliable compatible SFP optics solution for system integrator, distributors and end users in data network infrastructure and fiber cabling.
Features
• Hot-pluggable SFP footprint
• Support up to 2.488Gb/s data links
• Compliant with SFP MSA standard
• 1550nm DFB laser transmitter and APD receiver
• Up to 80km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Duplex LC connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Compatible OEM Part Number | JD087A | Optcore Part Number | OSP2488-5580DCR-HPE |
| Form Factor | SFP | Data Rate | 2.488 Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 80 km | Optical Components | DFB/APD |
| Transmitter Power | -2 ~ 3 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -28 dBm | Receiver Overload | > -9 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 2x Fibre Channel OC-48/STM-16 SDH/SONET Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by HPE.
| Weight | 0.03 kg |
|---|
