HW XFP-STM64-SM1550-80km Compatible 10GBASE-ZR 1550nm 80km XFP Transceiver

HW XFP-STM64-SM1550-80km Compatible 10GBASE-ZR SMF 1550nm 80km XFP Optical Transceiver Module

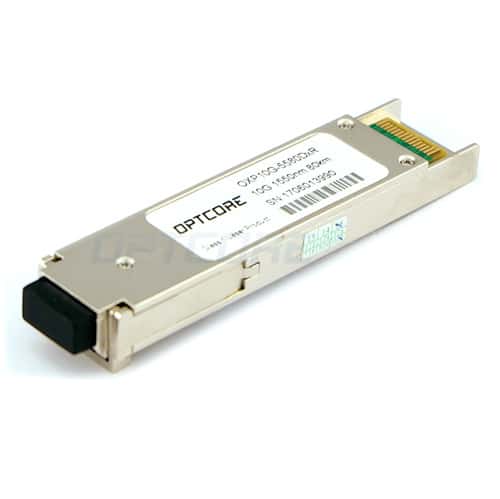

Optcore’s OXP10G-5580DCR-HW is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fibre Channel. It provides 10-Gigabit connectivity up to 80 km on single mode fiber (SMF) at 1550nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Additionally, the OXP10G-5580DCR-HW XFP transceiver is programmed to be compatible with a wide range of HW network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost HW XFP-STM64-SM1550-80km 10GBASE-ZR XFP module.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-ER/EW
• 1550nm EML transmitter, APD receiver
• Distance up to 80km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

Compatibility

Download

Spec / Datasheet

Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by HW.
