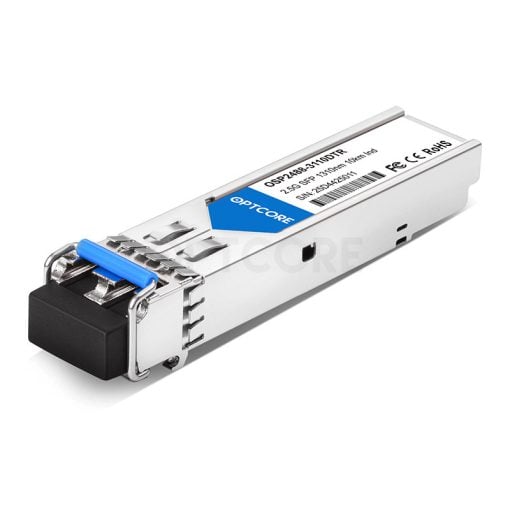

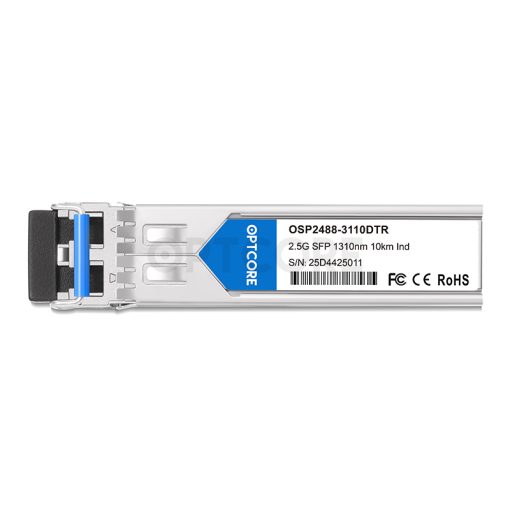

Finisar® FTRJ1319P1BTL Compatible 1000BASE-LX & 2Gb Fibre Channel Industrial SFP Transceiver
US$ 25.00 (Excl. VAT)
2G Fibre Channel SFP module (SMF, 1310nm, 10km, LC, I-Temp, DOM) for replacing Finisar® FTRJ1319P1BTL.
Finisar® FTRJ1319P1BTL Compatible 1000BASE-LX / 2G FC Industrial SFP Module (SMF, 1310nm, 10km, LC, -40°C ~ 85°C, DOM)
This Industrial temperature SFP module is designed for industrial networking equipment and is equivalent to Finisar® genuine part number FTRJ1319P1BTL. It is programmed and tested at the factory, to ensure works same as Finisar® FTRJ1319P1BTL. This hot-swappable transceiver provides maximum 10km transmission distance over single fiber (SMF) cabling at a wavelength of 1310nm. It y comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x and 2x Fibre Channel.
Features
• Functionally identical to Finisar® FTRJ1319P1BTL
• Support up to 2.125Gb/s data links
• Compliant with IEEE 802.3z
• Single 3.3V power supply
• LC Duplex connector
• Built-in digital diagnostic functions
• Industrial operating temperature range: -40°C to 85°C
• ROHS compliant and Lead-Free
Specification
| Compatible OEM Part Number | FTRJ1319P1BTL | Optcore Part Number | OSP2125-3110DTR-FNS |
| Form Factor | SFP | Data Rate | 2.125Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | FP/PIN |
| Transmitter Power | -5～0 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -19 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: -40°C to 85°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 1G /2G Fibre Channel (1GFC, 2GFC) 1000BASE-LX Gigabit Ethernet |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Finisar.
| Weight | 0.03 kg |
|---|
