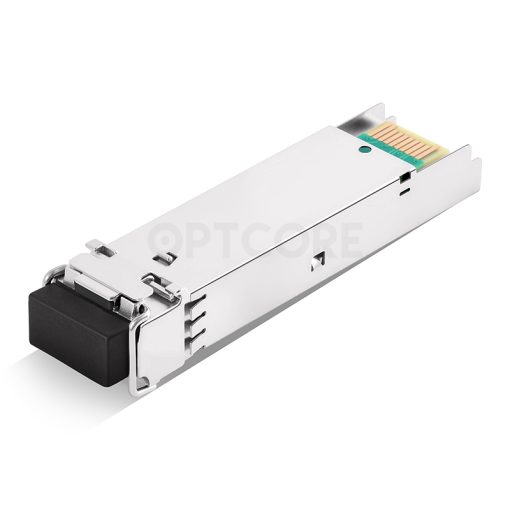

Finisar® FTLF8524P2BNV Compatible 4G Fibre Channel (4GFC) 300m SFP Transceiver
US$ 19.90 (Excl. VAT)
4G Fibre Channel SW SFP Transceiver (MMF, 850nm, 300m, LC, DOM) for Replacing Finisar® FTLF8524P2BNV.
Finisar® FTLF8524P2BNV Compatible 4G Fibre Channel (4GFC) SW SFP Module (Multimode, 850nm, 300m, LC, DOM)
This 4G fiber channel short-wavelength SFP module is equivalent to Finisar® genuine part number FTLF8524P2BNV. It is suitable for use in 4.25Gb/s, 2.125Gb/s and 1.06Gb/s Fibre Channel (4GFC, 2GFC, 1GFC) applications. It provides 150m transmission distance over 50/125µm multi-mode fiber at a nominal wavelength of 850nm. The module features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into LC Duplex optical connector.The 4G SFP module is comply with SFP MSA specifications ( SFF-8074i, SFF-8472) and Fibre Channel FC- PI-2 Rev.8.0 specifications.. It is offered at best price and helps IT organizations reduce the overall infrastructure cost.
Features
• Functionally identical to Finisar® FTLF8524P2BNV
• Up to 4.25Gb/s data links
• Single 3.3V power supply
• Low power dissipation
• Metal enclosure provides lower EMI
Specification
| Compatible OEM Part Number | FTLF8524P2BNV | Optcore Part Number | OSP4G-8505DTR-FNS |
| Form Factor | SFP | Data Rate | 4.25 Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 300 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 5 dB |
| Receiver Sensitivity | < -15 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: -20°C to 85°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters 1G/2G/4G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Finisar®.
| Weight | 0.03 kg |
|---|
