FHD High Density 1U Rack Mount Fiber Enclosure Unloaded
US$ 46.00 (Excl. VAT)
Unloaded fixed enclosure, accepts 4x FHD MTP/MPO cassettes or fiber adapter panels, supports maximum 96 LC Fibers.
FHD High-Density Rack Mount Fixed Fiber Enclosure Unloaded (1U, Accepts 4x FHD MPO Cassettes or Panels, 96 LC Fibers)

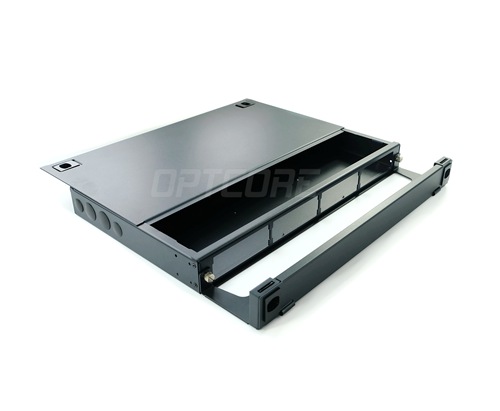

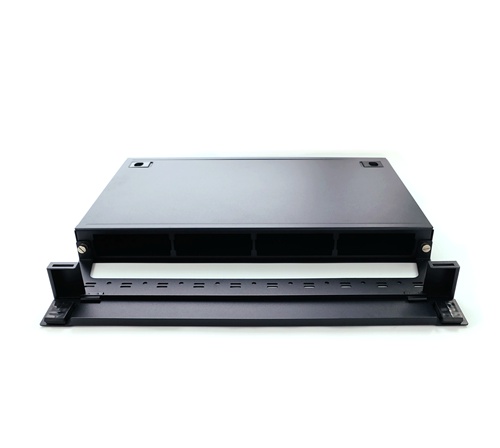

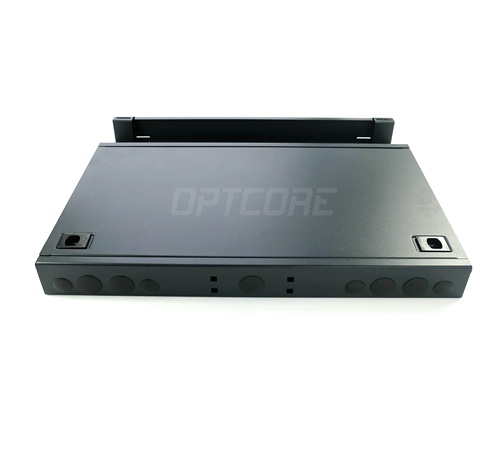

OPTCORE FHD series 1U rack mount fixed fiber enclosure can house a maximum of 4x FHD high-density easy-plug MTP/MPO cassettes or fiber adapter panels and supports a maximum of 96 LC fibers. It offers a system-wide modular solution to minimal space while maximizing the fiber connectivity density. This solution contributes to greater network availability that especially ideal for connection and cable management of data center MDA, IDA, HDA, and other fiber optic backbones. This fiber optic enclosure features rugged heavy steel construction, with multiple rear and side entry points for trunk cable feeding into the panel, providing protection as well as internal management. The top covers can also be removed for additional and simplified connector access.
Features
● Supports maximum 96 LC Fibers
● Accept 4x FHD MPO cassettes or fiber adapter plates
● High quality steel construction ensures durability
● Designed to fit all standard 19” racks and cabinets
● Removable top cover for additional room for access
● Improve space to make sure bending rate of fiber
● Meet ANSI/TIA/EIA 568-C standards
● RoHS compliant and lead-free
Specification
| Product Series | FHD Fiber Enclosure | Part Number | FHD-FMEA1U-4P |
| Product Type | 1U Fixed Enclosure | Loaded | Unloaded |
| Mounting Type | Rack Mount | Mounting Support | Standard 19″ Rack |
| Fiber Count | Up to 96 LC Fibers | Cable Entry | Side and Rear Entry |
| Material | SPCC Steel | Color | Black |
| Product compatibility | 4x FHD Fiber Adapter Panel 4x FHD MPO Fiber Cassette |
Application | Backbones, Data Centers, Enterprise Networks |
| Dimensions (HxWxD) | 1.73”x19.00”x13.5” (44.0×482.6x343mm) | Gross Weight | 4.0kg |
| Environment | Operating: -20°C to 70°C, RH 5% to 85% Storage: -40°C to 85°C, RH 5% to 85% |
Country of Origin | China |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by them. Specifications and product availability are subject to change without notice.
| Weight | 5 kg |
|---|---|
| Number of Rack Unit | |
| Fiber Count | |
| Type |
