FHD High-Density Fiber Adapter Panel, 6x LC Duplex Aqua Adapter, 12x OM3/OM4 Multimode Fiber
US$ 9.00 (Excl. VAT)
Compatible for FHD Fiber Enclosure, toolless pass-through fiber panel snaps for easy network deployment or moves, adds, and changes.
FHD High-Density Fiber Adapter Panel (6 LC Duplex OM3/OM4 Multimode Adapter, 12 Fibers, Compatible for FHD Fiber Enclosure)

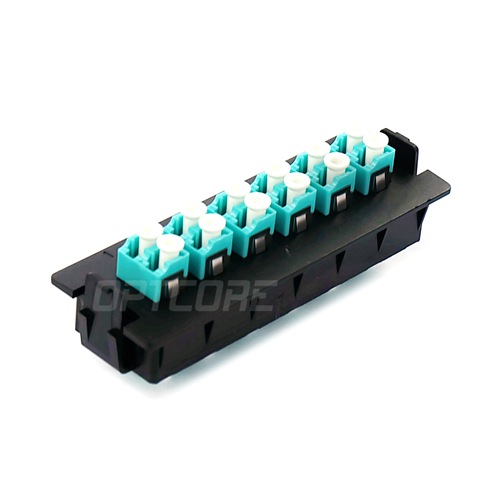

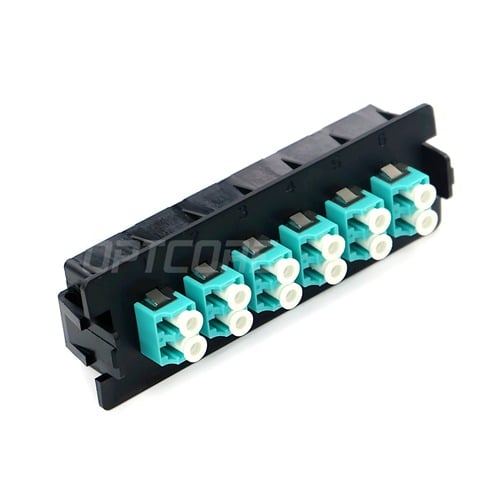

OPTCORE FHD High-Density Fiber Adapter Panel is designed specifically for use with FHD rack mount fiber enclosures and wall-mount fiber enclosures. It is an LC fiber adapter panel with pre-loaded 6 LC duplex OM3/OM4 connectors that feature ceramic sleeves for precision, alignment, and longevity. Each LC OM3/OM4 fiber adapter comes with dust caps to protect prevent dust and debris from entering. This LC fiber adapter panel is designed with snap-latch fasteners for easy installation and removal, just snap the panel into the enclosure with no tools required. It’s perfect for fiber infrastructure that requires easier cable management. This FHD High-Density fiber adapter plate provides a versatile solution in multiple sizes and styles for small data centers and enterprise applications.
Features
● 6x LC duplex connectors support a maximum of 12 OM3/OM4 Multimode fibers
● Compatible with OPTCORE FHD fiber enclosure
● Toolless installation and removal of adapter plates
● Compact high-density design
● Dust caps protect unused connectors from debris and damage
● Unpopulated versions for customized configurations
● Meet ANSI/TIA/EIA 568-C standards
● RoHS compliant and lead-free
Specification
| Product Series | FHD Fiber Adapter Panel (Plate) | Part Number | FHD-FAP-6DLC-OM3 |
| Product Type | LC Adapter Panel | Loaded | Pre-loaded |
| Fiber Count | 12 Fibers | No.of Adapter Port | 6 LC Duplex |
| Fiber Mode | Multimode OM3/OM4 | Adapter Color | Aqua |
| Material of Plate | ABS plastic | Plate Color | Black |
| Product Compatibility | FHD Fiber Adapter Enclosure | Application | High-density fiber-optic network in the data center cabling for cross connects in main distribution, horizontal distribution, and equipment distribution areas. |
| Dimensions (HxWxD) | 6.2”x12.9”x38.4” (15.7×32.8×97.4mm) | Gross Weight | 0.1kg |
| Environment | Operating: -20°C to 70°C, RH 5% to 85% Storage: -40°C to 85°C, RH 5% to 85% |
Country of Origin | China |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by them. Specifications and product availability are subject to change without notice.
