Fortinet FG-TRAN-XFPLR Compatible 10GBASE-LR XFP Transceiver
US$ 56.00 (Excl. VAT)
10GBASE-LR XFP Transceiver (SMF, 1310nm, 10km, LC, DDM) or use with Fortinet 10G Switches and Routers.
Similar Products

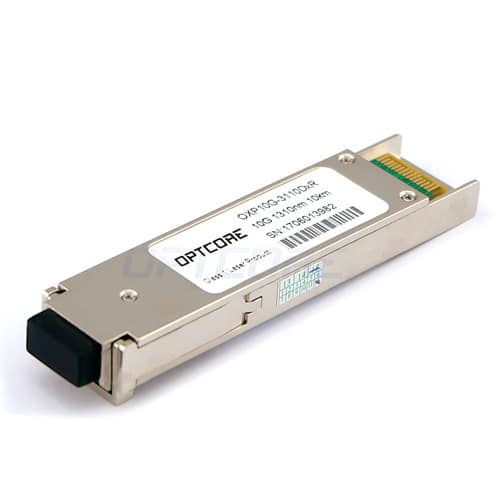

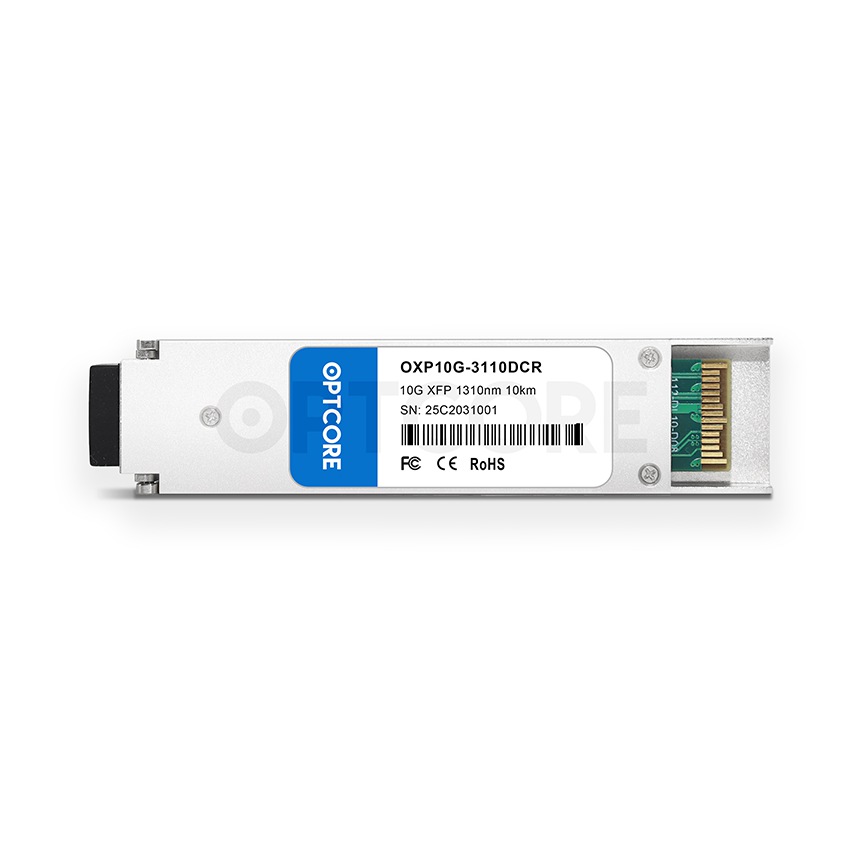

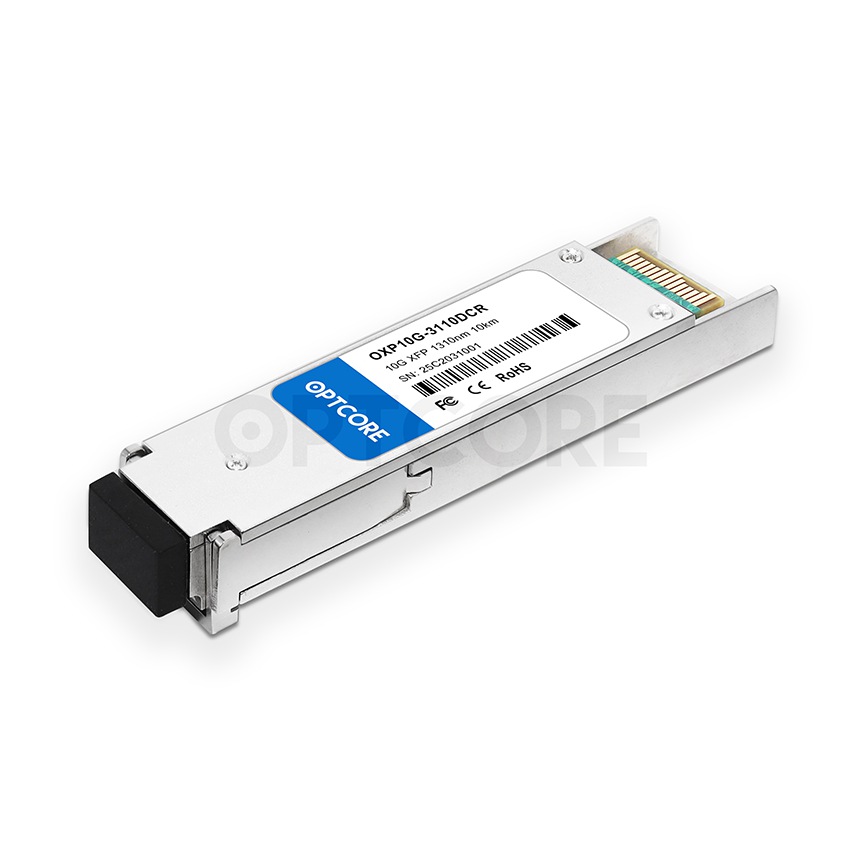

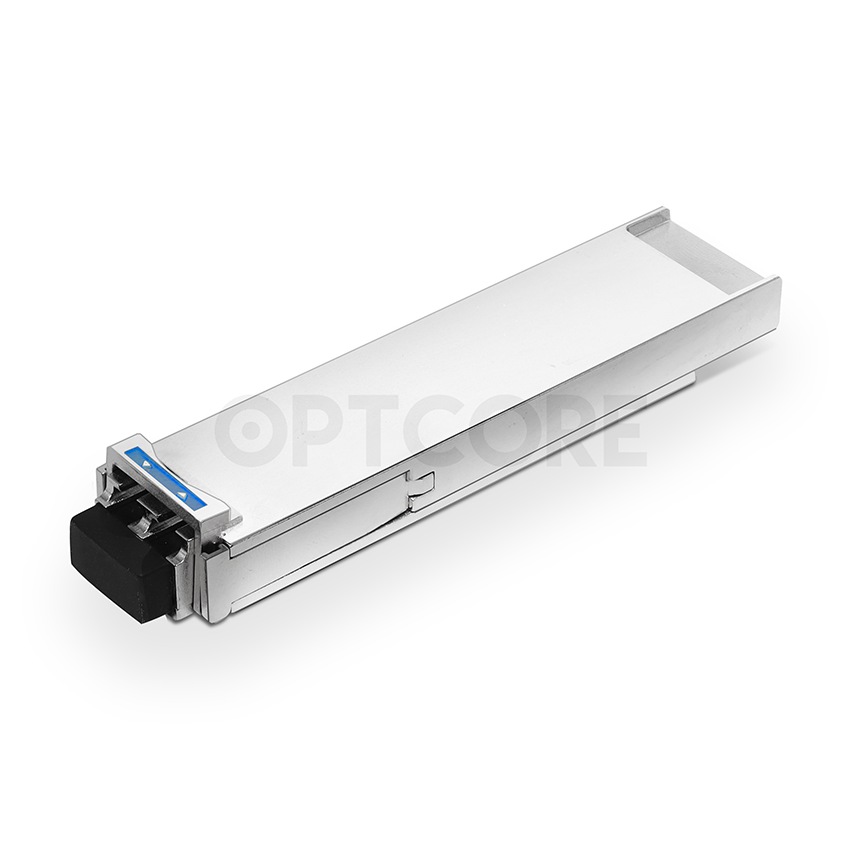

Fortinet FG-TRAN-XFPLR Compatible 10GBASE-LR XFP Module (SMF, 1310nm, 10km, LC, DDM)
Optcore’s OXP10G-3110DCR-FTN is a low-cost replacement for Fortinet FG-TRAN-XFPLR XFP module. It is programmed to be compatible with a wide range of Fortinet 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is suitable for 9.95Gbps to 11.1Gbps data transmission applications. It is compliant with the current Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-Mx-SN-I. The FG-TRAN-XFPLR provides 10-Gigabit connectivity up to 10km on single mode fiber at 1310nm.
Features
• Functionally identical to Fortinet FG-TRAN-XFPLR
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• 1310nm DFB laser and PIN receiver
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | FG-TRAN-XFPLR | Optcore Part Number | OXP10G-3110DCR-FTN |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet
10G Fibre Channel 10G Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Fortinet.
